SmallRig L-Bracket for Fujifilm X-H1 2178B

SmallRig L-Bracket for Fujifilm X-H1 2178B
Sku 2178B
EAN 6941590000091

Availability: Discontinued Item

This product has been viewed 1550 times

Product Description


SmallRig L-Bracket for Fujifilm X-H1 2178B

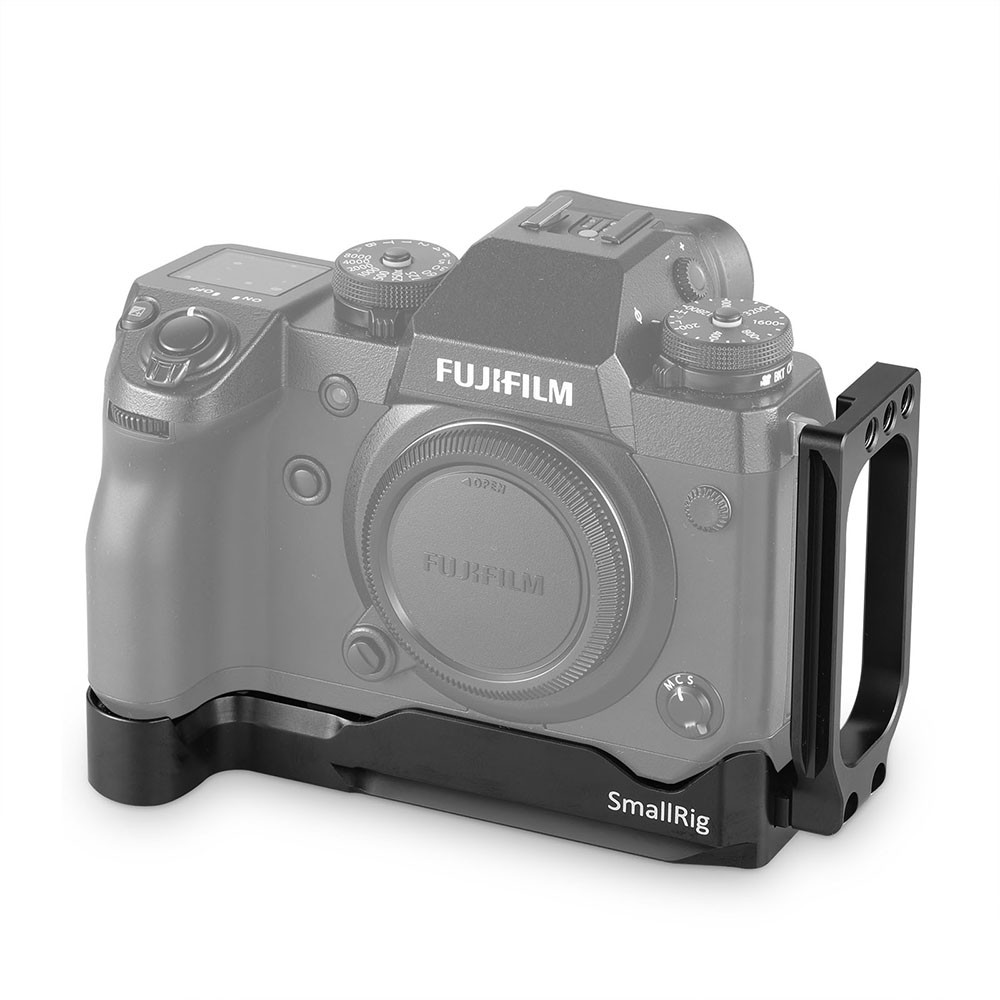

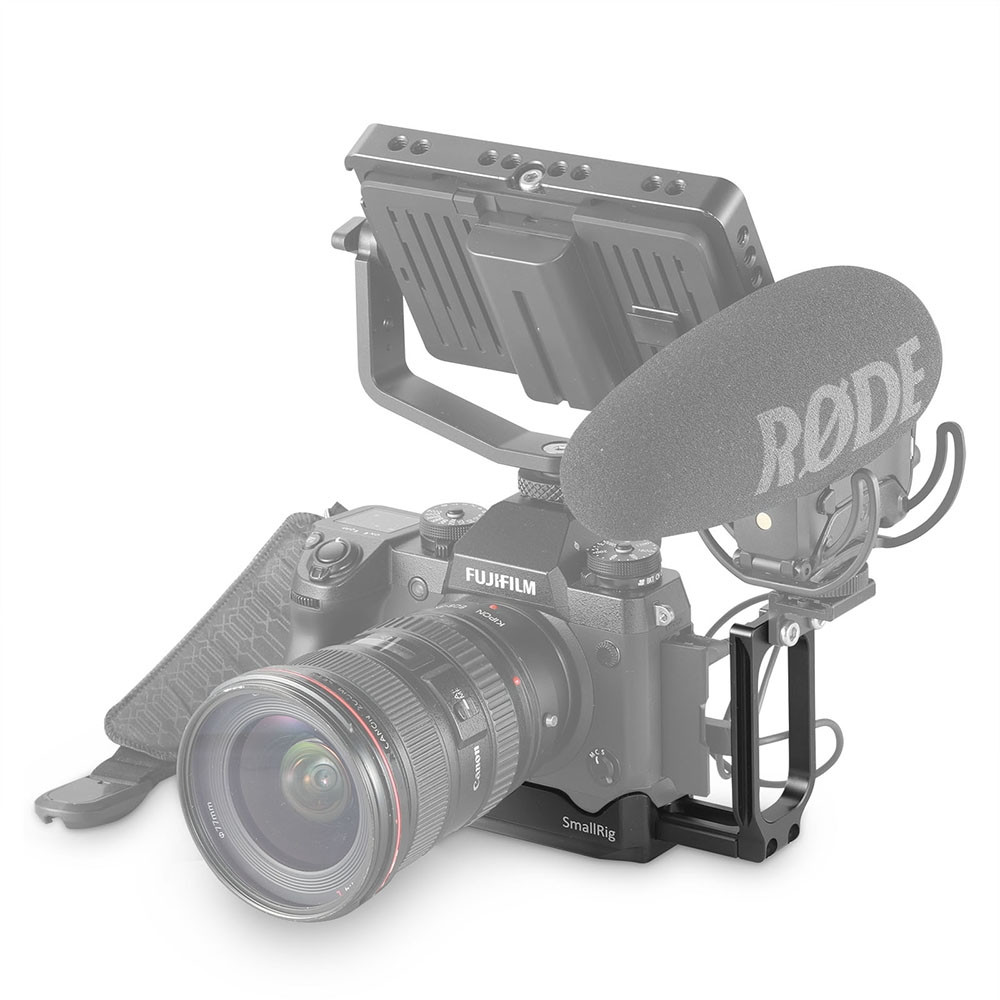

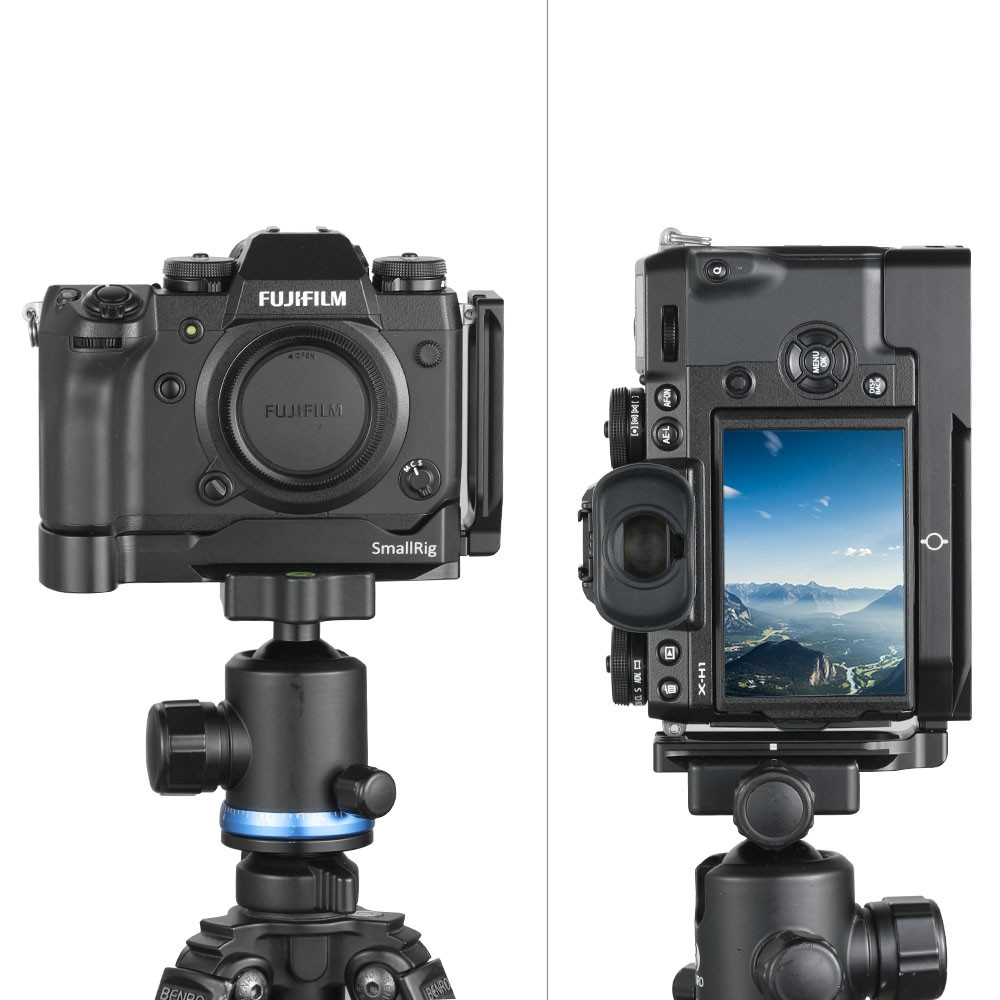

SmallRig L-Bracket for Fujifilm X-H1 Camera 2178B is a modular design with anti-twist flanges to keep the camera from twisting and provide a comfortable handheld shooting. Both the base plate and side plate are Arca-type compatible dovetail plates enable the camera to mount in a vertical or horizontal position. It features a sensor centering line on each axis to align the camera on a tripod head and maintains complete access to the camera's battery and ports. The side plate can be extended to left if more room is needed for tethering or cable release. An included hex wrench at the bottom is used to tighten and adjust the L-bracket. Additionally, it is compatible with the Peak Design strap and include a hand strap loop on the right side. Furthermore, 1/4"-20 mounting holes are located on the side and bottom for accessory attachment, such as Cold Shoe Mount 1593.

Key Features

1.Modular designed for Fujifilm X-H1 Camera body.

2. Arca-Type compatible dovetail plate with center marks on both axis.

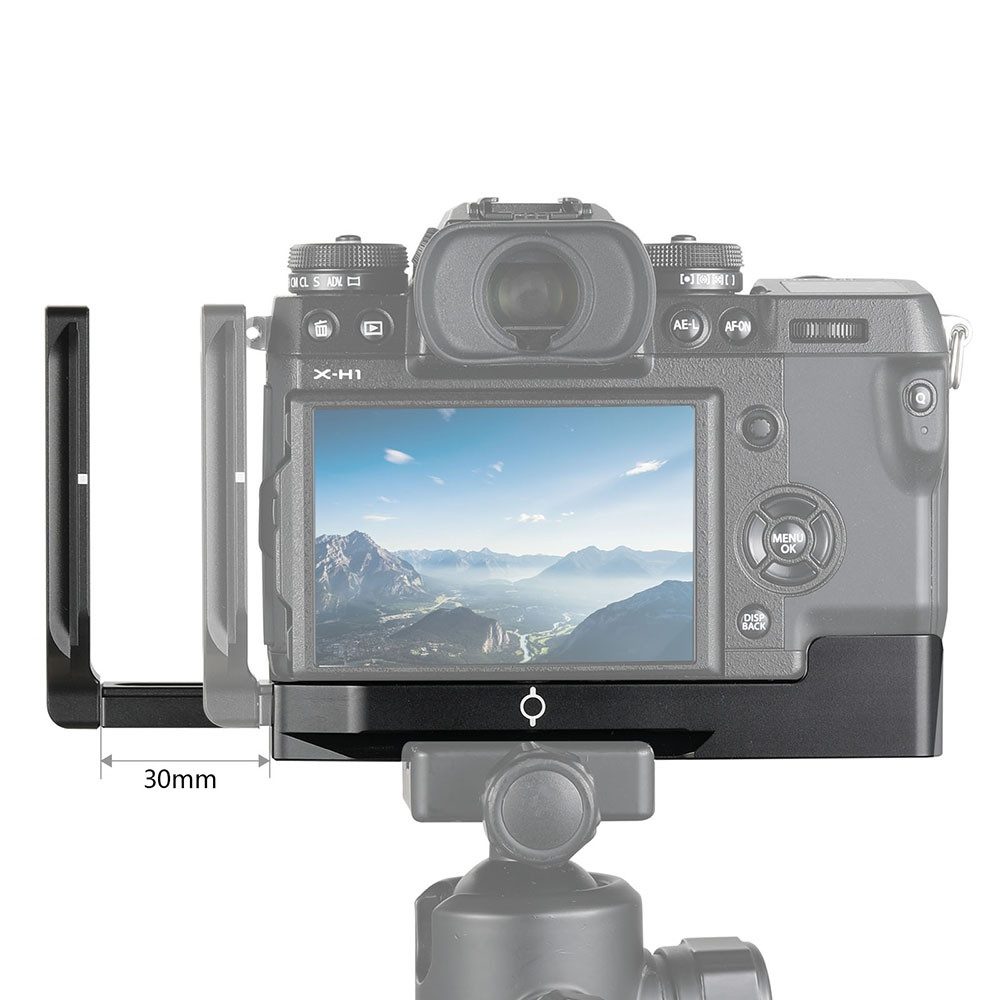

3. Extendable side plate allows for tethering or cable release.

4. Add 16mm height based on the original handgrip for pinky support.

5. Compatible with Peak Design strap.

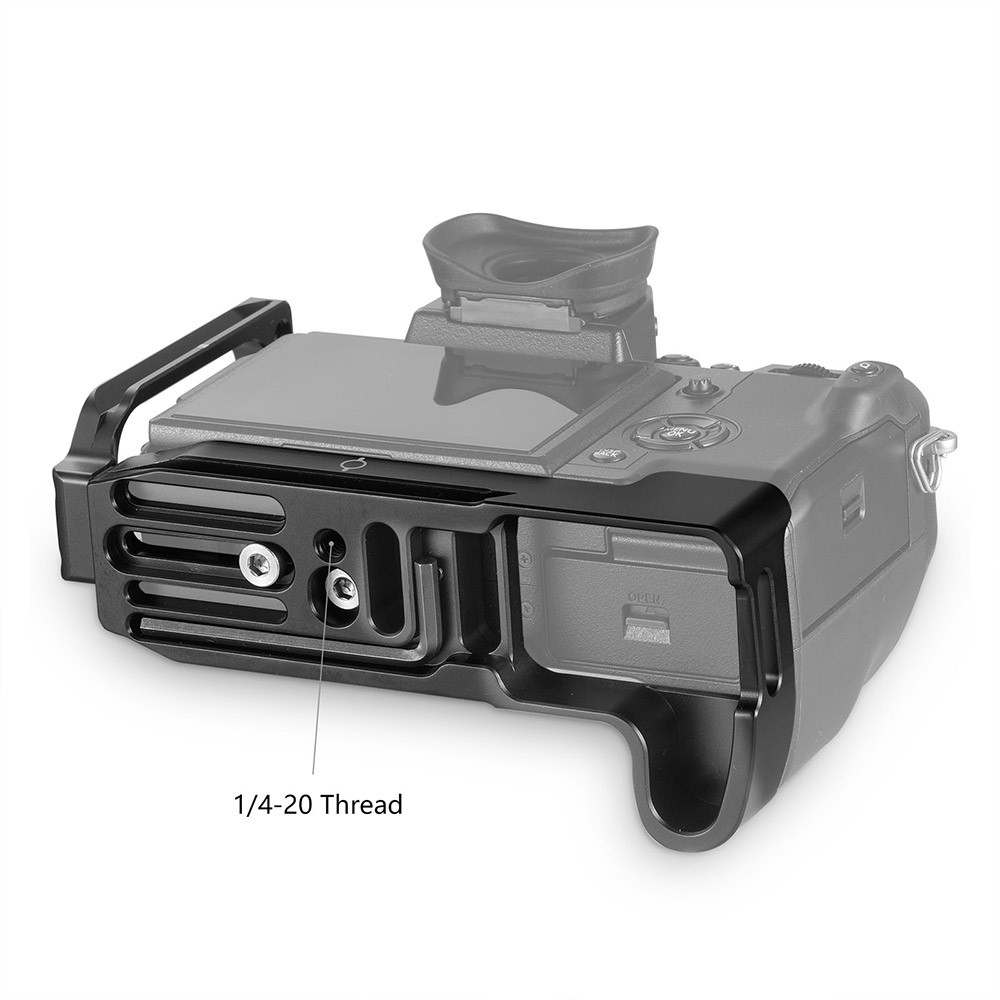

6. The side plate features three 1/4"-20 threaded holes for accessory attachment.

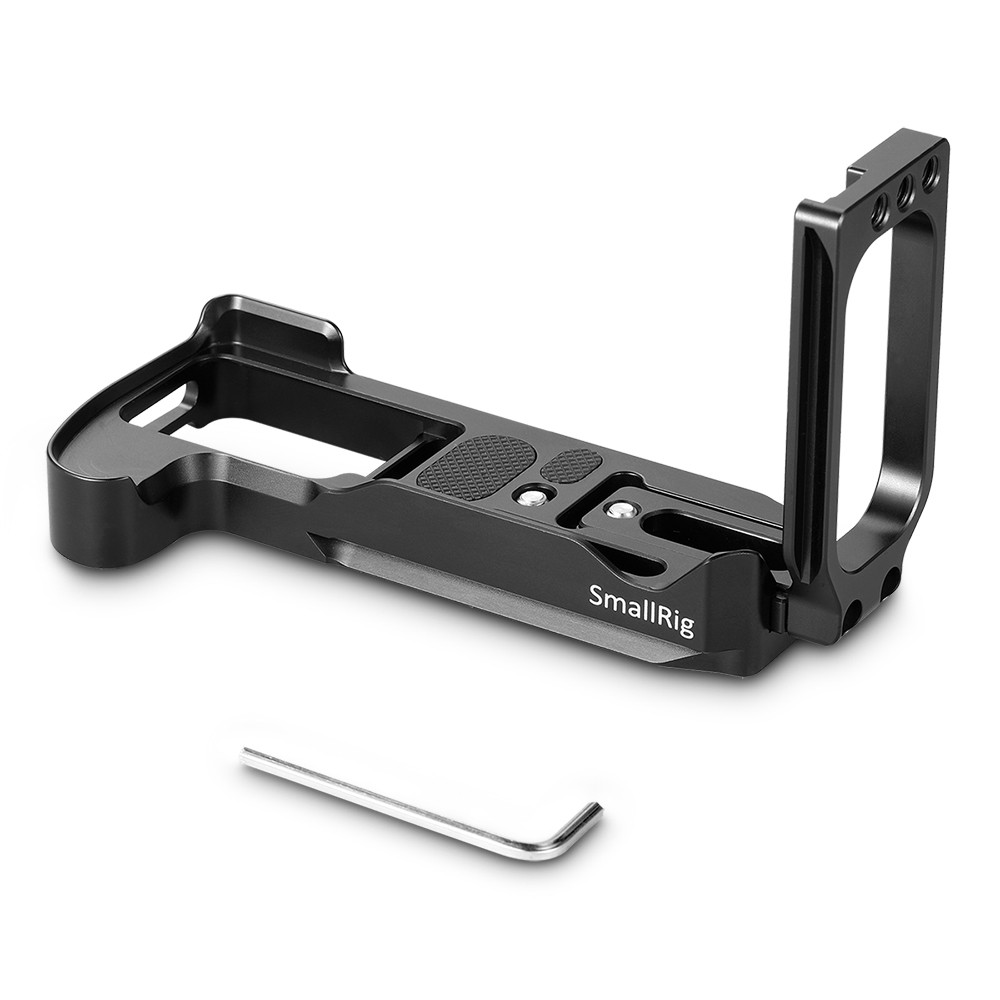

7. Built-in Allen wrench at the bottom;

Work With

Fujifilm X-H1

Packing List

1 x L-Bracket

2 x Hex Spanner

Technical Data

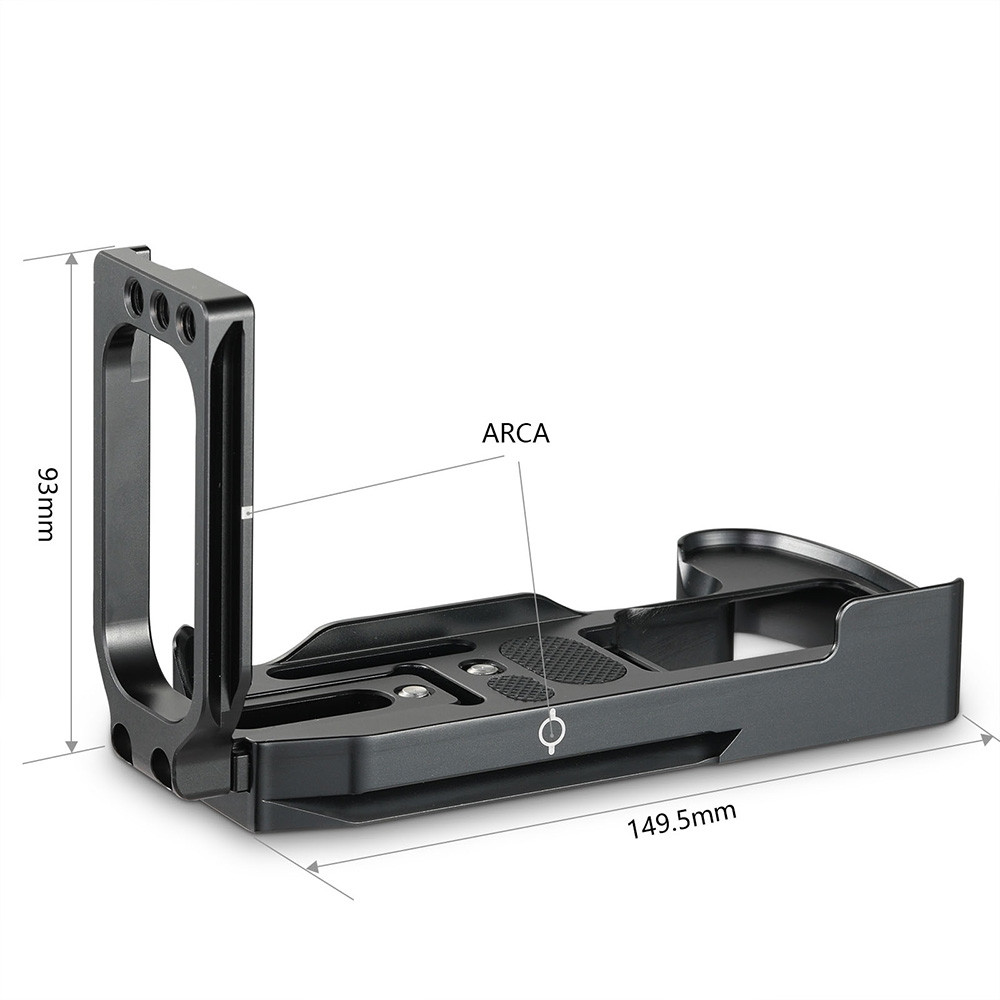

Product Dimensions:149.5 X 93 X 69.5mm

Package Dimensions: 215 X 115 X 65mm

Net Weight: 159g

Package Weight: 241g

Material(s): Aluminum Alloy
