SmallRig Heli-coil Insert Protection mounting Plate for DJI Ronin S/SC BSS2263

SmallRig Heli-coil Insert Protection mounting Plate for DJI Ronin S/SC BSS2263

1.Designed for DJI Ronin S/SC Gimbal.

2.Prevent the heli-coil insert on the bottom of Ronin S/SC from slipping off.

3.Features multiple 1/4"-20 and 3/8"-16 threaded holes for accessories.

4.Comes with an arri locating holes for magic arm with arri locating pins.

5.Compatible with Ronin S original tripod and Smallrig Side Handle 2222. Add rubber pad to prevent scratching the gimbal.

$13.90
Sku BSS2263
EAN 6972070624834

Availability: Discontinued Item

This product has been viewed 608 times

Product Description



SmallRig Heli-coil Insert Protection mounting Plate for DJI Ronin S/SC 2263

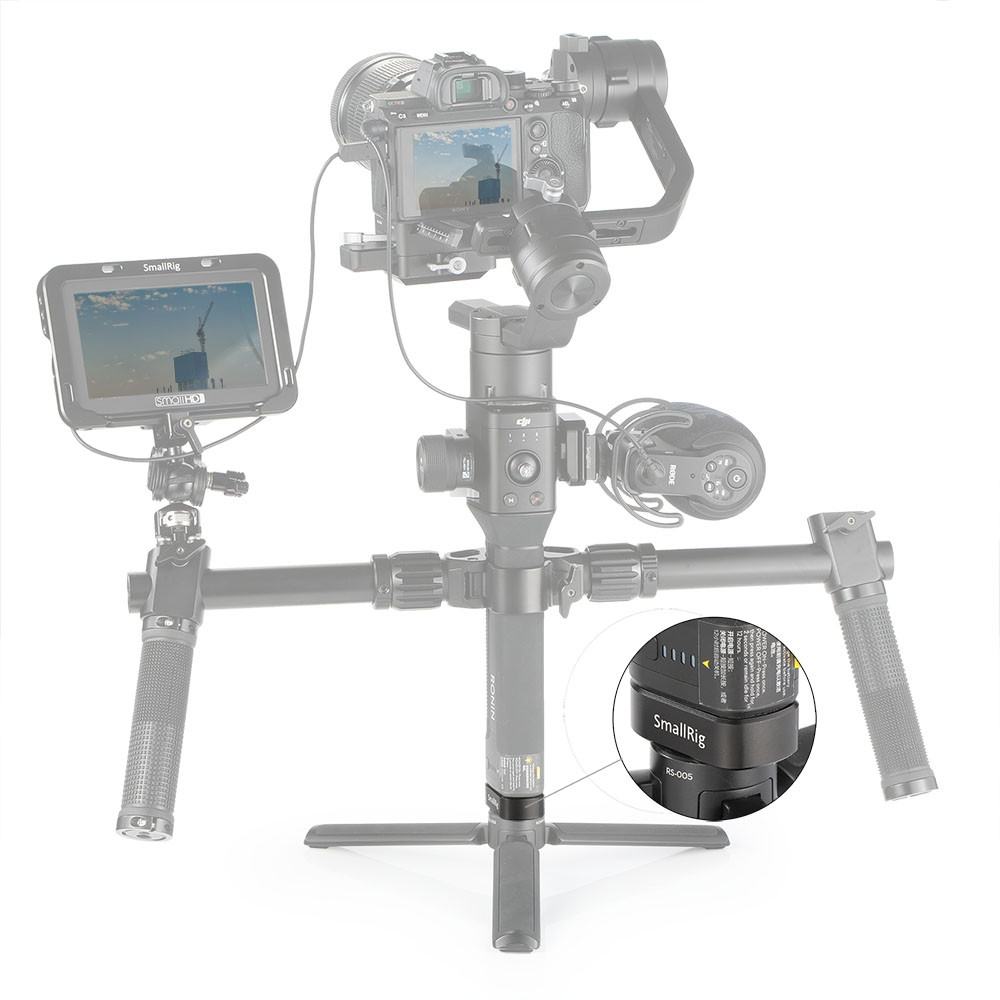

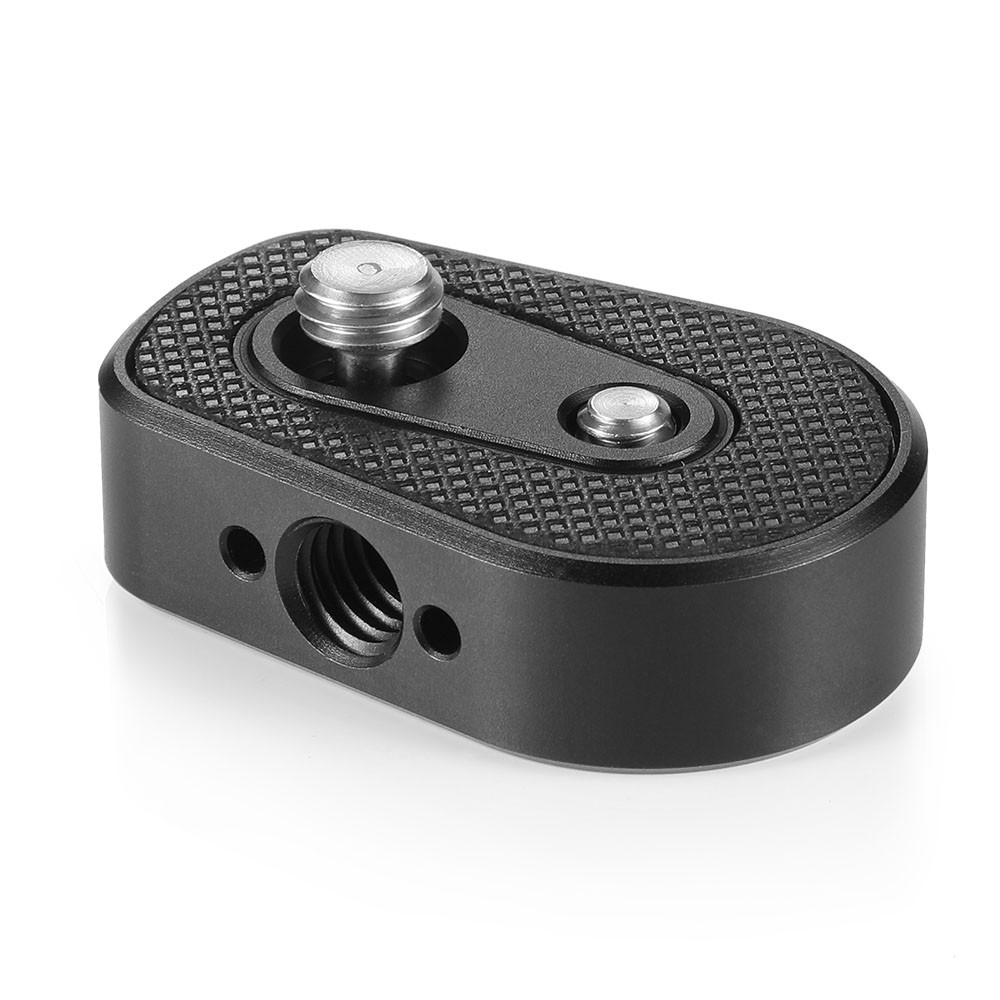

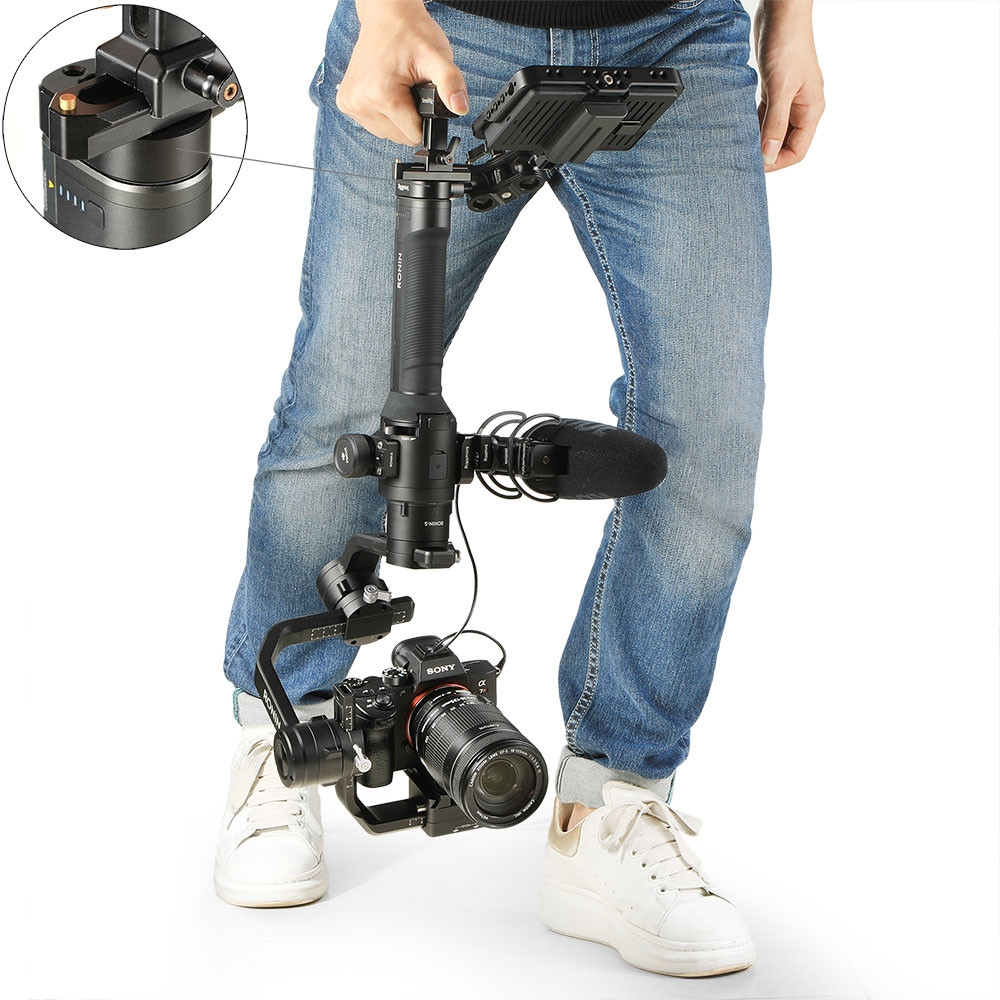

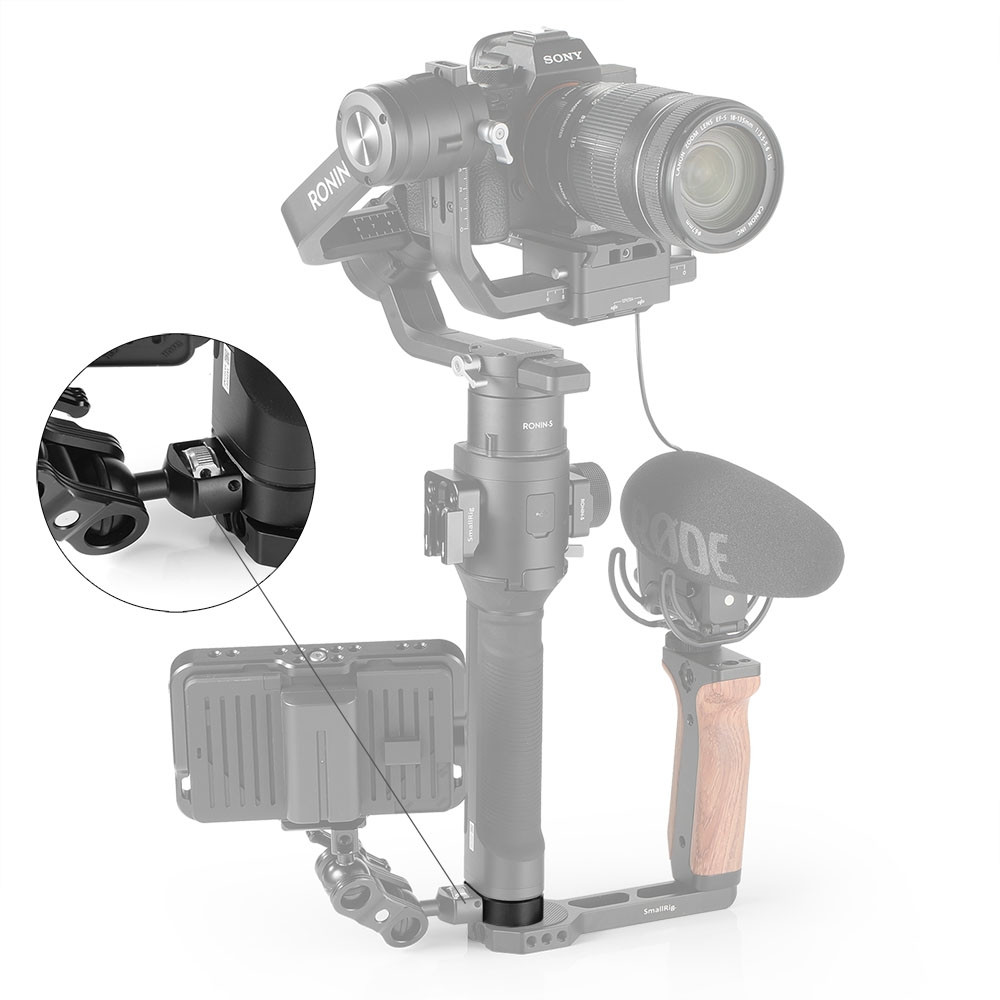

SmallRig Heli-coil Insert Protection mounting Plate for DJI Ronin S BSS2263 is designed to prevent the heli-coil insert on the bottom of Ronin S from slipping off as well as provide several mounting points for accessories. It fixed on the bottom of Ronin S/SC via one 1/4"-20 and one 3/8"-16 screws to ensure safe and fits Ronin S/SC perfectly. The bottom of the plate features both 1/4"-20 and arri 3/8"-16 threaded holes allows for mounting accessories such as tripod plate to hold your RoninS/SC onto tripod. Optional Nato Rail 1195 and Nato Handle 1955 can be used to hold the Ronin S/SC upside down. The side of the plate comes with an arri locating holes for Magic Arm 2115 for monitor to prevent twisting. The lightweight plate also designed to compatible with the original Ronin S/SC tripod and Smallrig Gimbal Side Handle 2222.

Key Features

1.Designed for DJI Ronin S/SC Gimbal.

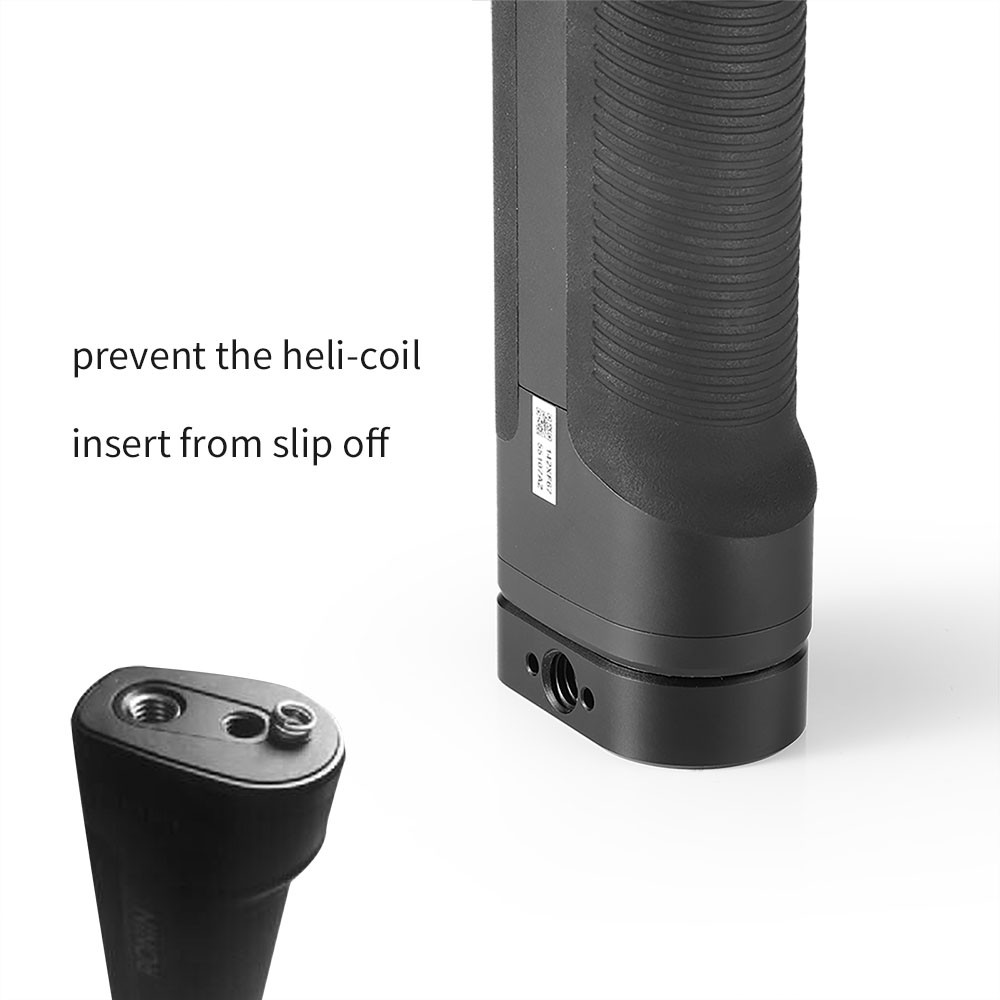

2.Prevent the heli-coil insert on the bottom of Ronin S/SC from slipping off.

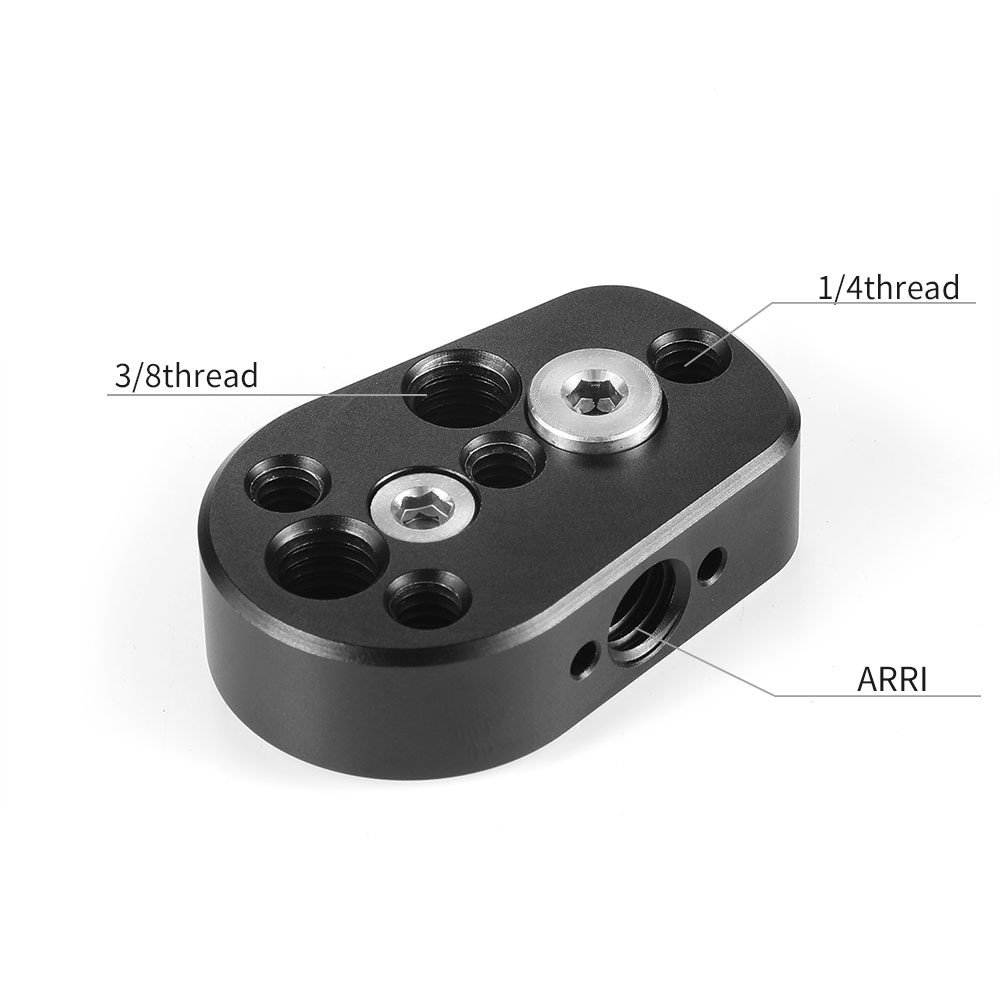

3.Features multiple 1/4"-20 and 3/8"-16 threaded holes for accessories.

4.Comes with an arri locating holes for magic arm with arri locating pins.

5.Compatible with Ronin S/SC original tripod and Smallrig Side Handle 2222. Add rubber pad to prevent scratching the gimbal.

Work With

DJI Ronin S/SC Gimbal Stabilizer

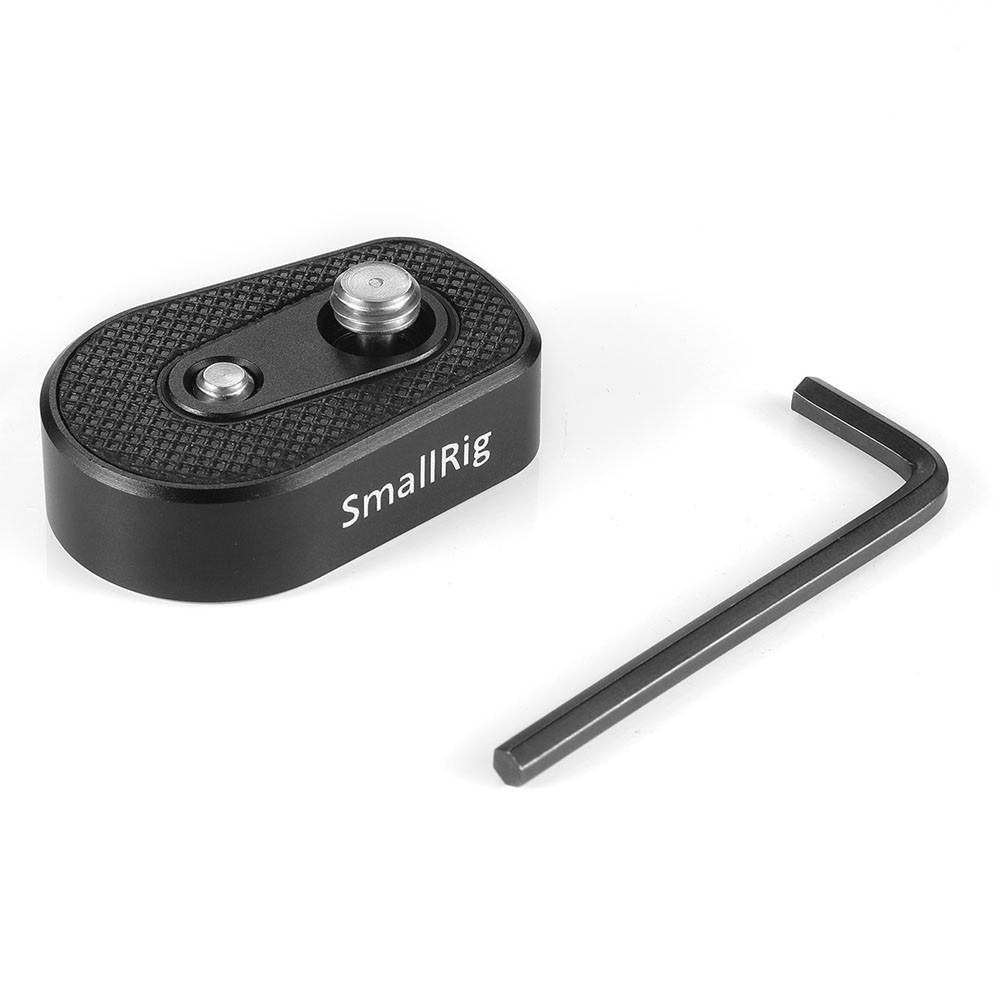

Packing List

1 x Baseplate

1 x Hex Spanner

Technical Data

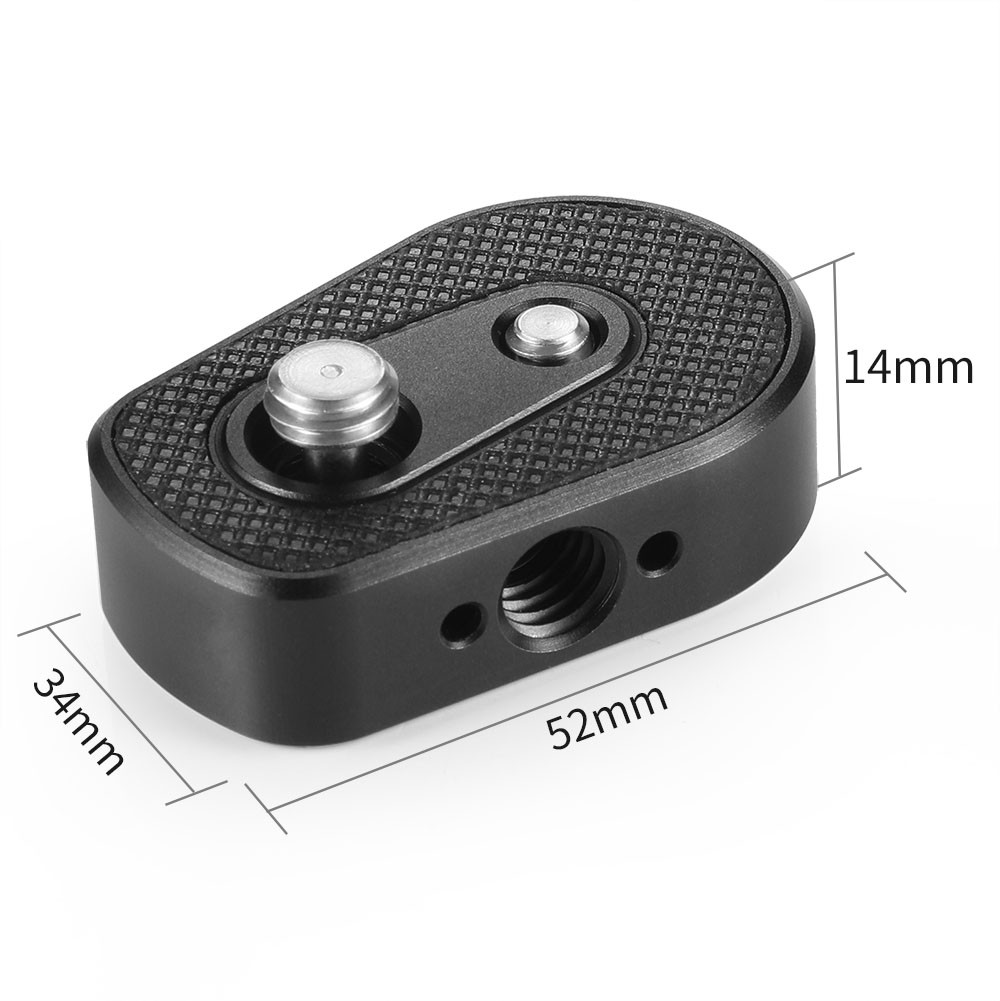

Product Dimensions: 52x34x14.5mm

Package Dimensions: 76x63x40mm

Net Weight: 56g

Package Weight: 78g

Material(s): Aluminum Alloy
