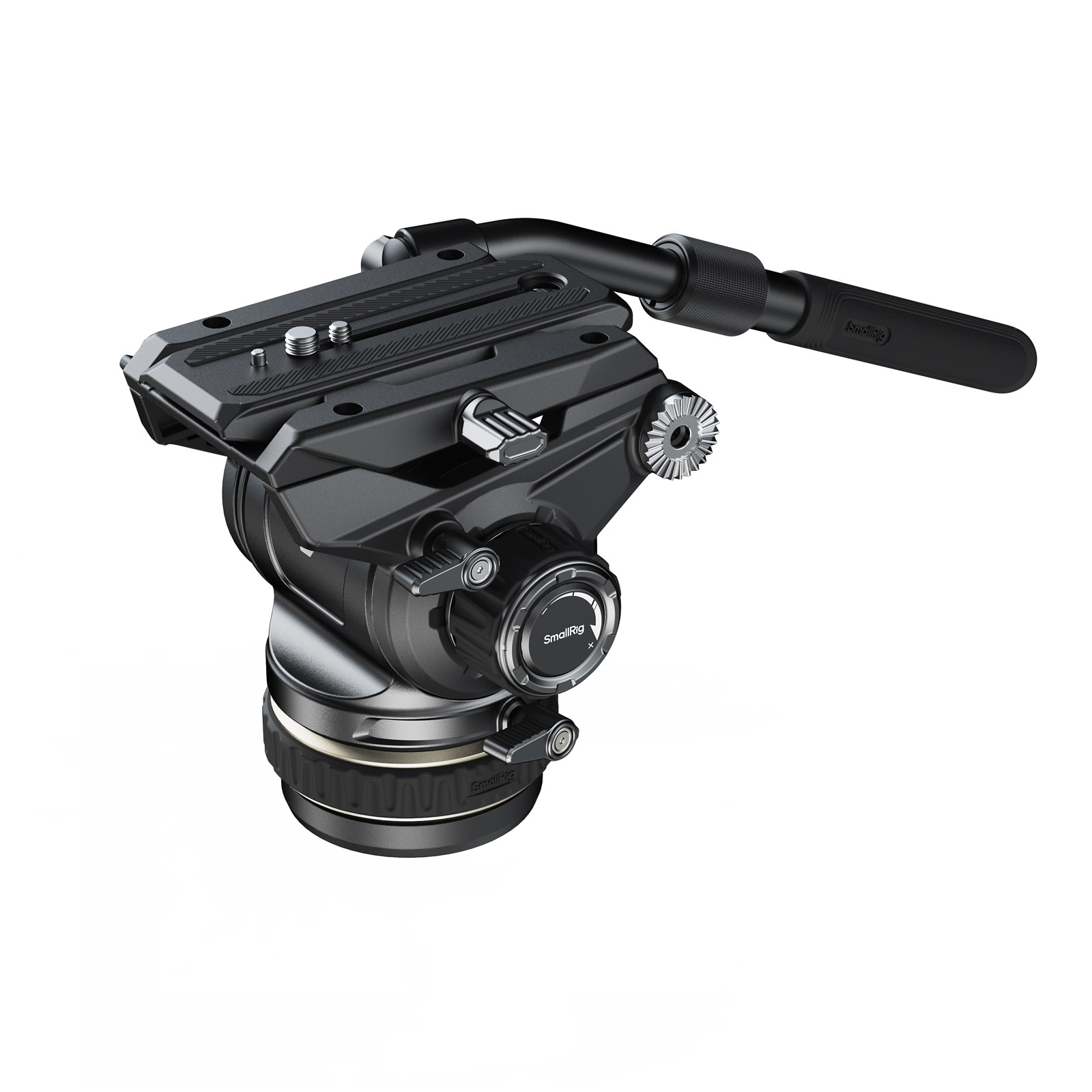

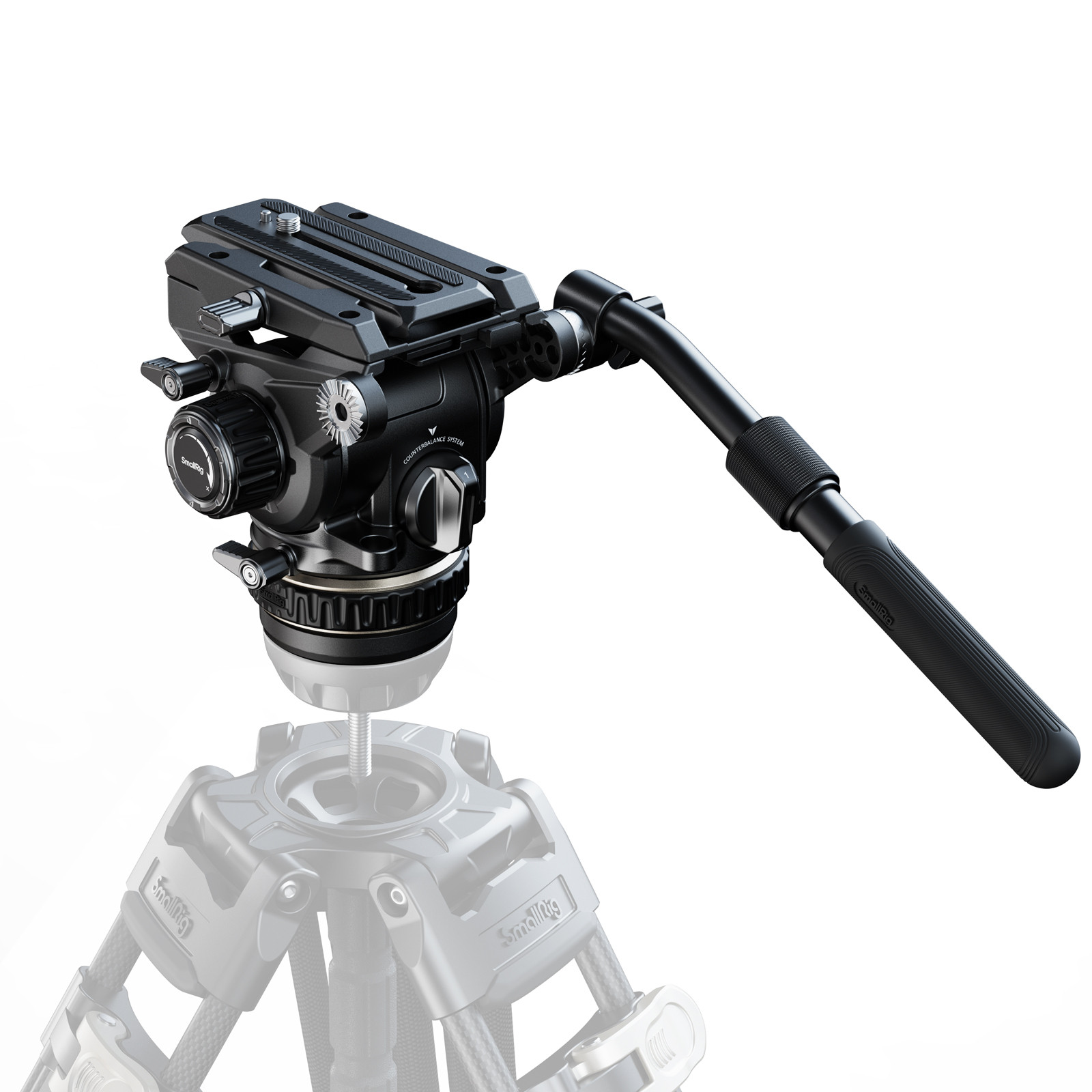

SmallRig Heavy-Duty Video Head DH12 4464
SmallRig Heavy-Duty Video Head DH12 4464 is a professional fluid head to facilitate video shooting. The fluid head features an adjustable 6-step counterbalance system. When the height of the gravitational center is 55mm / 2.2", the 6-step counterbalance system balances the camera or other rigs (up to 8kg / 17.6lb) and accurately controls the camera tilt. The adjustable step-less hydraulic damping system enables swivel and tilt adjustment and provides smooth pan and tilt camera movements. The fluid head DH12 adopts a new Touch-and-Go quick-release mount plate design which does not require alignment and is more efficient than traditional slide-in plates. The head easily switches between Manfrotto and DJI RS quick-release plates. The user-friendly detachable telescopic handle allows rotation attaching it to both left and right sides, making it suitable for any grip. The head also comes with one 1/4"-20 threaded hole to support the magic arm and other accessories and a built-in wrench to help install and release the camera.
Note:
1. Not sand-resistant or dust-resistant.
2. Maximum locking force of tilt/pan: 12kg/24lb.
Work With
Manfrotto 501PL Quick Release Plate
75mm / 2.9in Flat base
Packing List
Video Head x 1
Allen Wrench x 1
Operating Instruction x 1
Guarantee Card x 1
Technical Data
Product Dimensions (Without Handle): 140 x 135 x 160 mm / 5.5 x 5.3 x 6.3in
Telescopic Handle Dimensions: 360 x 50 x 50mm / 14.2 x 2.0 x 2.0in
Package Dimensions: 390.0 x 205.5 x 149.0 mm / 15.4 x 8.1 x 5.9in
Product Weight: 1.93 ± 0.1kg / 4.2 ± 0.2lb
Package Weight: 2.42 ± 0.1kg / 5.3 ± 0.2lb
Operating Altitude: 150mm / 5.5in
Bowl Adatper Diameter: 75mm / 2.9in
Tilt Range: +90° / -60°
Counterbalance Playload: 1 - 8.0kg / 2.2 - 17.6lb
Counterbalance: 6-Step (1, 2, 3, 4, 5, 6)
Tilt Control: Continuously Adjustable
Pan Control: Continuously Adjustable
Load-Bearing Capacity: 8kg / 17.6lb
Handle Length: 35.0- 53.0cm / 13.8 - 20.9in
Material(s): Aluminum Alloy, Stainless Steel, Silicone
