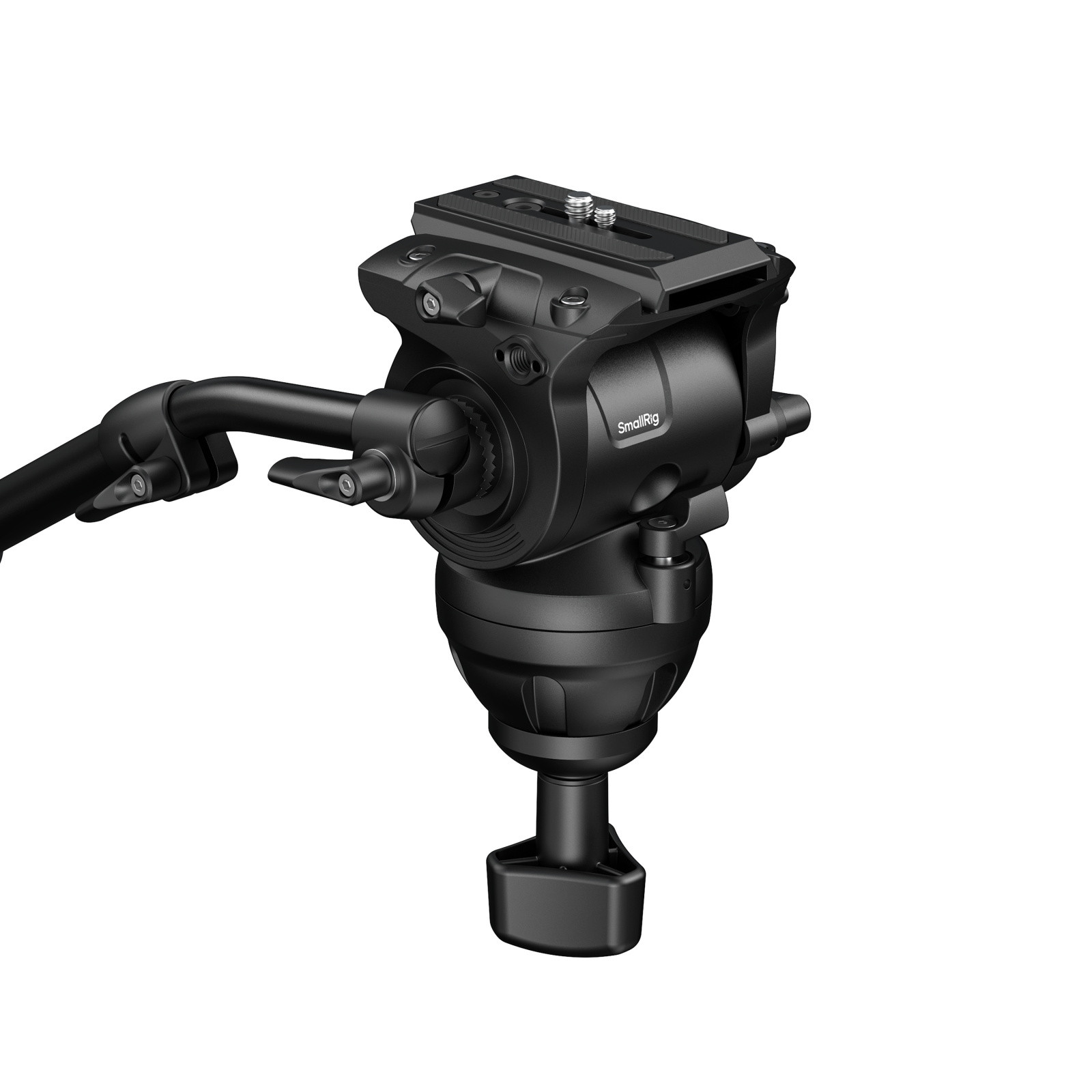

SmallRig Heavy-Duty Video Head 6552
SmallRig Heavy-Duty Video Head 6552 is a high-quality hydraulic video head made of aluminum alloy. It supports 6-step counterbalance adjustment, with a counterbalance payload range of 0.0-6.0kg (0.0-13.2lb), helping achieve smooth camera movement. The head also offers a safe payload capacity of 10.0kg (22.0lb) and a maximum load capacity of 15.0kg (33.1lb).
It also provides fast switching between Manfrotto and DJI RS quick release plate systems. In addition, the head supports handle mounting on either the left or right side for both left- and right-hand operation. A built-in 1/4"-20 threaded hole allows attachment of accessories such as a magic arm.
Work With
1. Standard Manfrotto quick release plate (501PL).
2. 75mm bowl base.
Packing List
Video Head × 1
Wrench × 1
Guarantee Card × 1
Technical Data

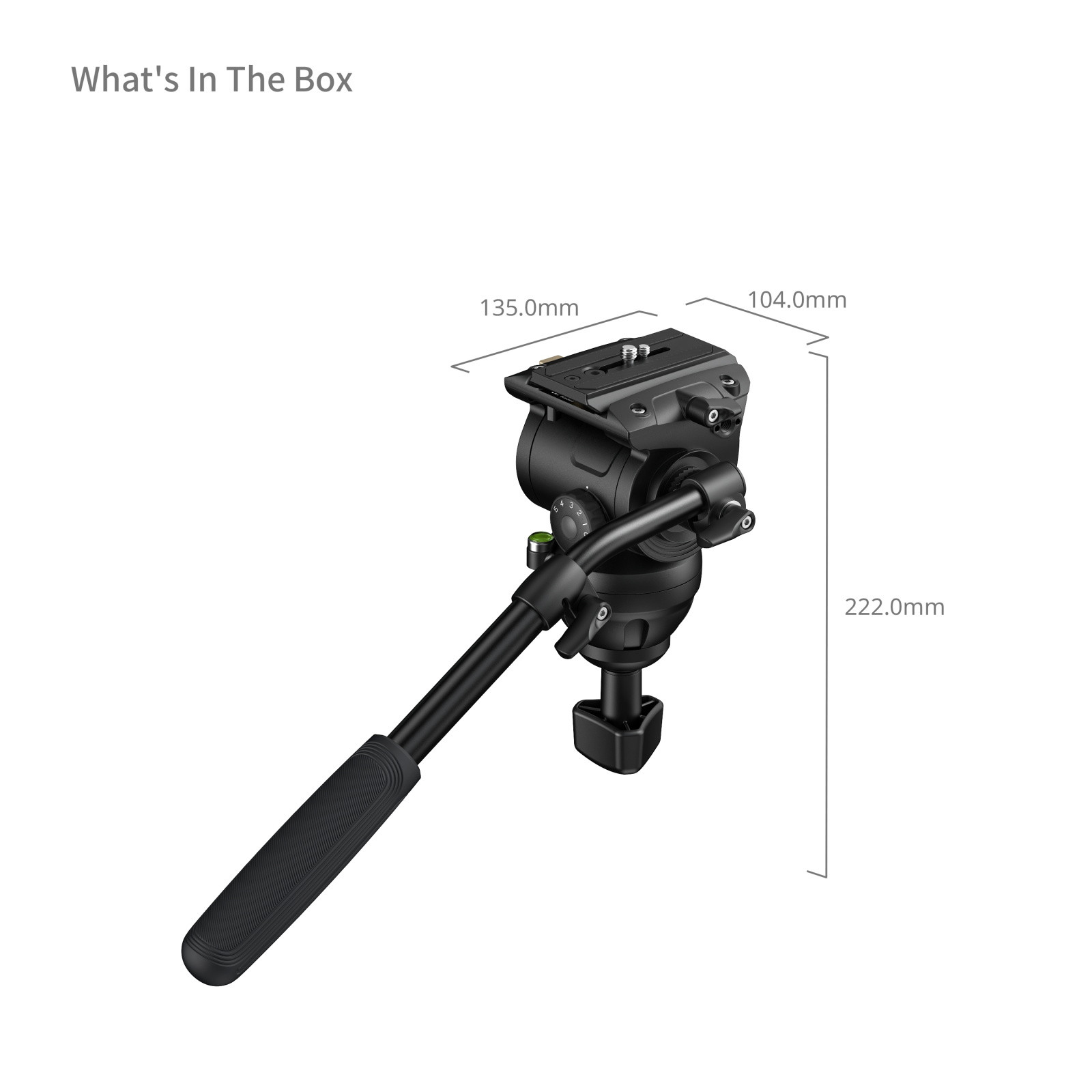

Product Dimensions: 10.4 × 13.5 × 22.2cm / 4.1 × 5.3 × 8.7in
Package Dimensions: 19.0 × 15.0 × 40.2cm / 7.5 × 5.9 × 15.8in
Product Weight: 1.94 ± 0.05kg / 68.4 ± 1.8oz
Package Weight: 2.48 ± 0.05kg / 87.5 ± 1.8oz
Bowl Diameter: 75.0mm / 3.0in

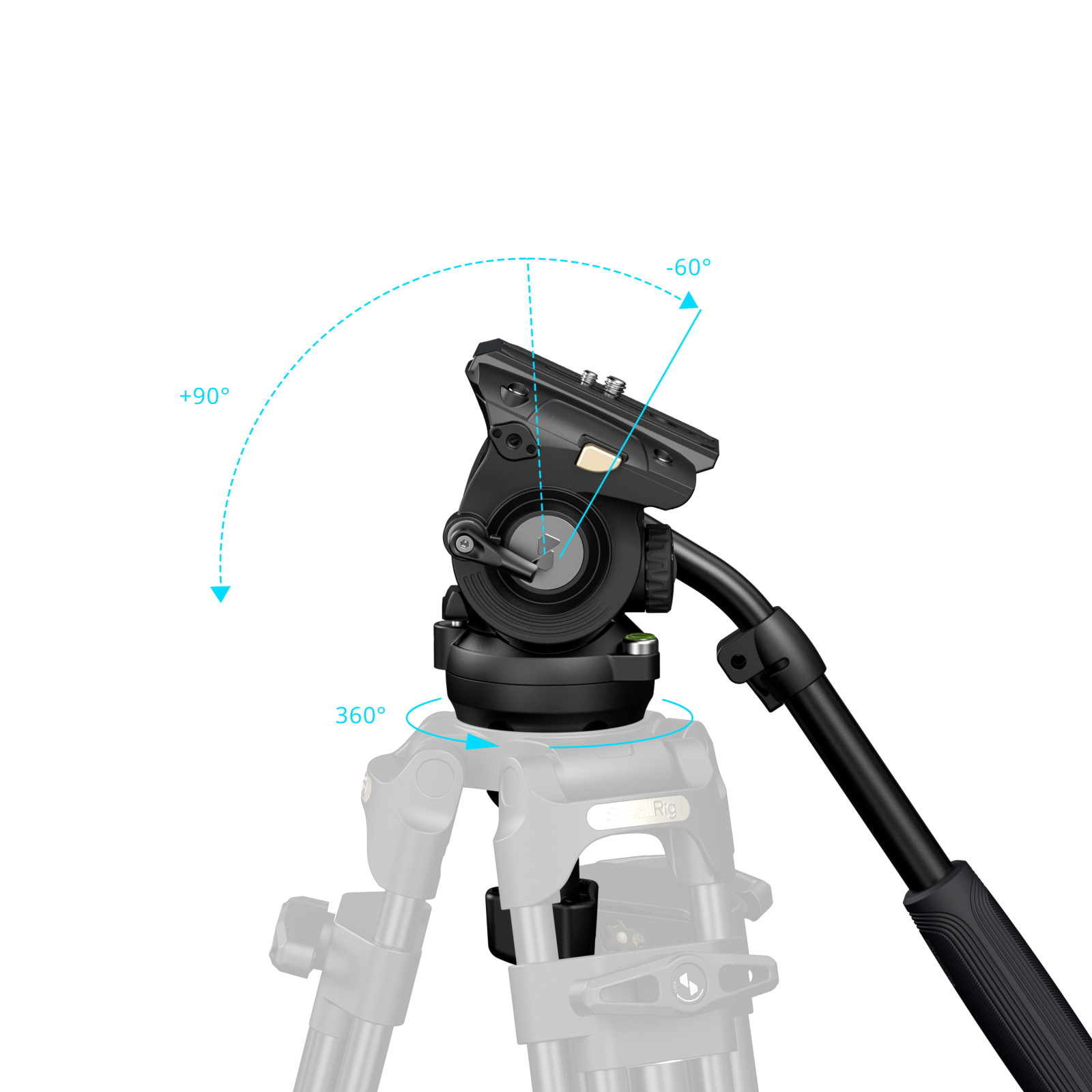

Tilt Range: 90° / -60°
Tilt Damping Levels: None
Pan Damping Levels: None
Counterbalance Steps: 6
Counterbalance Payload: 0.0-6.0kg / 0.0-13.2lb
Maximum Load: 15.0kg / 33.1lb
Safe Load: 10.0kg / 22.0lb
Handle Length: 38.5-55.0cm / 15.2-21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy
Sensitive Attribute: Contains 0.06ml liquid
