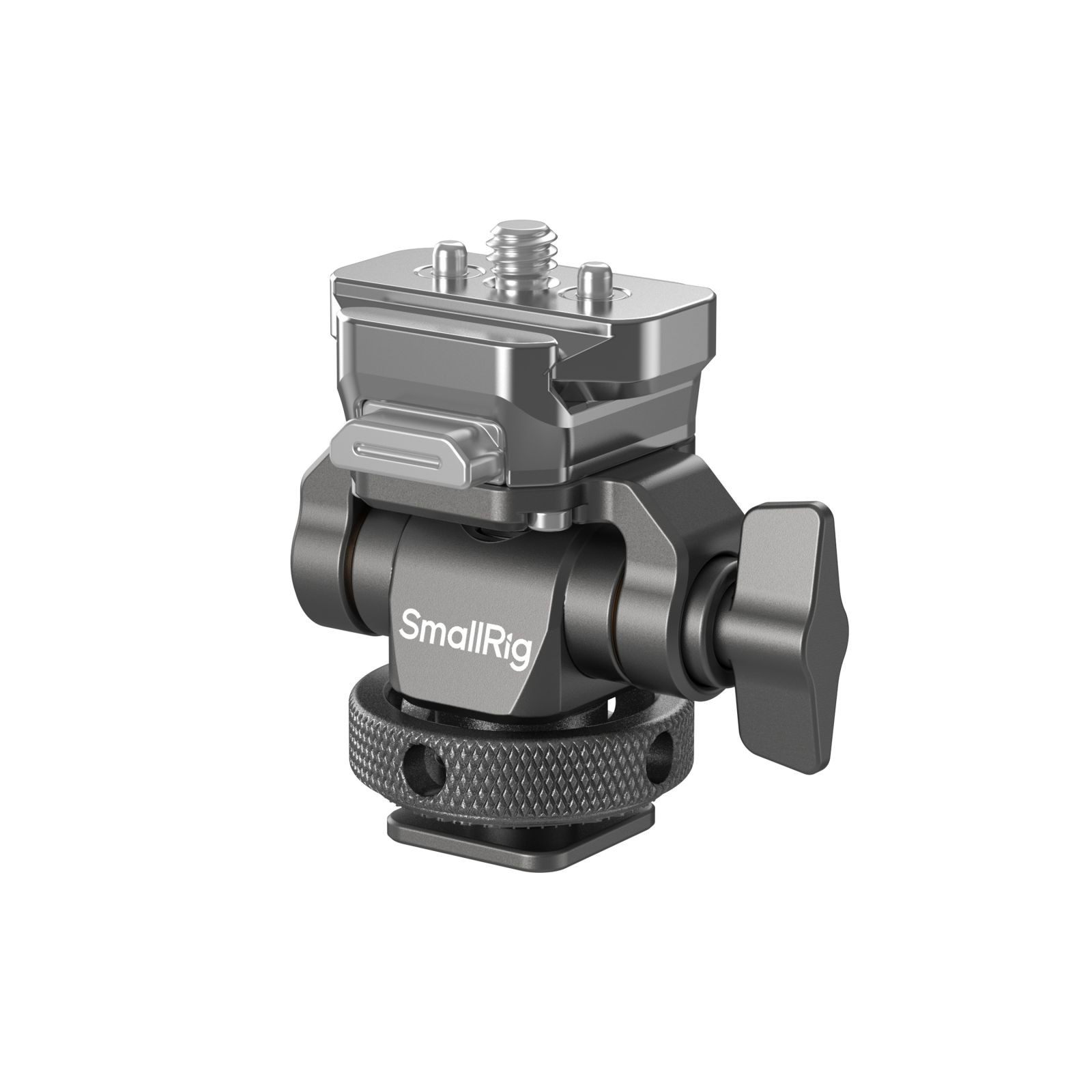

SmallRig HawkLock Quick Release Monitor Support with H21 Cold Shoe Mount 4888
SmallRig HawkLock Quick Release Monitor Support with H21 Cold Shoe Mount 4888 consists of one quick-release monitor bracket with a NATO clamp and one standard cold shoe mount. Featuring a top quick-release design, a single press allows the internal roll pin to suspend vertically, enabling the monitor support to be used with the accompanying quick-release NATO clamp. Once slid into the groove position, the self-locking system fixes it vertically, embedding precisely for stability without any play, saving time efficiently.

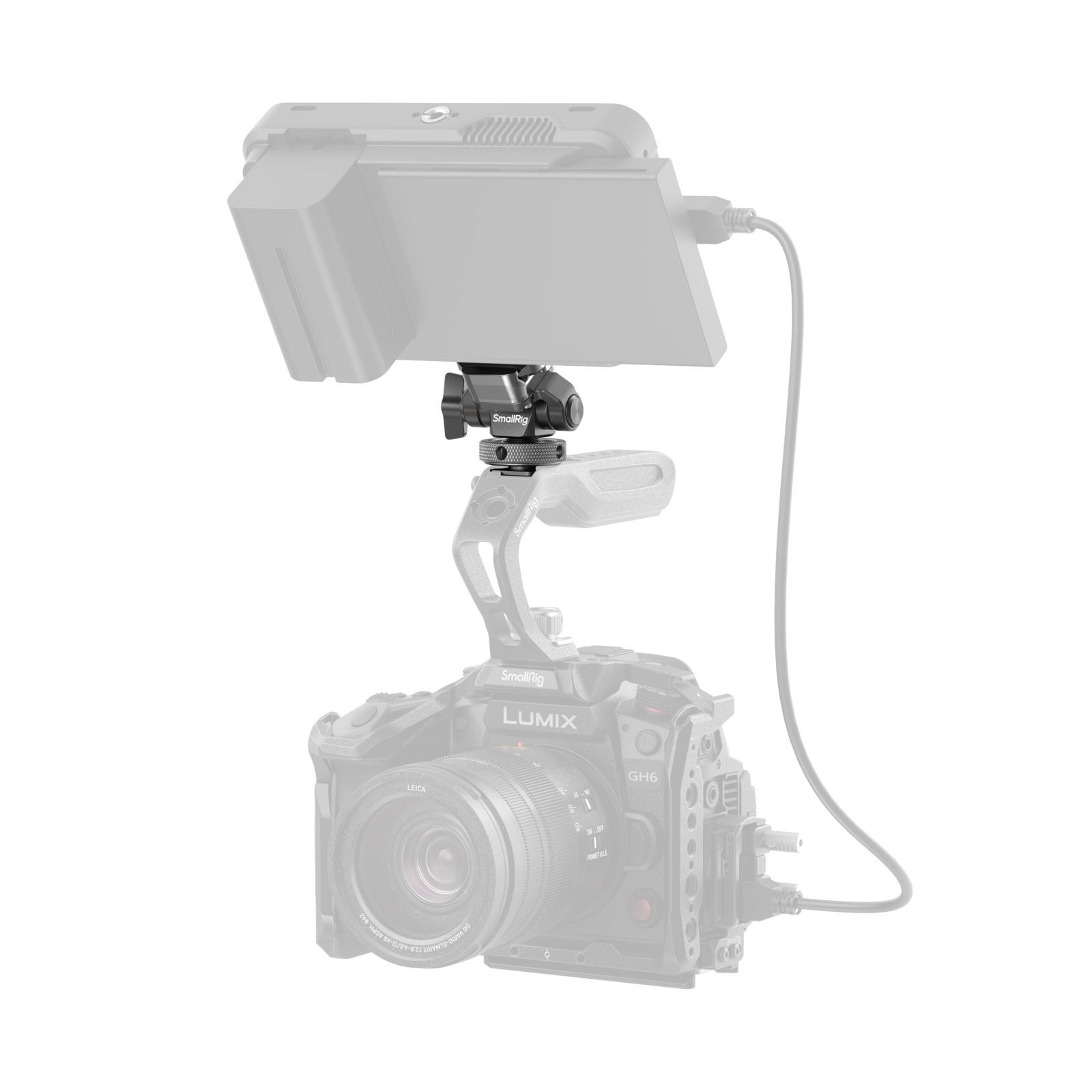

The 1/4"-20 screw allows for attaching monitors, microphones, and video lights. The built-in positioning roll pins on the top plate ensure effective stability and prevent misalignment when used with Ninja V or V+ monitors. The cold shoe mount at the bottom allows for attaching it to cages, handles, and cameras’ hot shoe mounts, effectively expanding accessory options.
The device supports a 140° tilt adjustment, allowing for quick tightening or loosening of the tilt axis with a knob to better accommodate devices of varying weights. Tested to support up to 2.3kg / 5.1lb, with a tilt adjustment endurance of over 10,000 cycles and a damping rate below 20%, it is durable and long-lasting. The horizontal 360° adjustment can be fine-tuned using the included Allen wrench.
Similar monitor supports with different interfaces are 4487, 4886, and others.

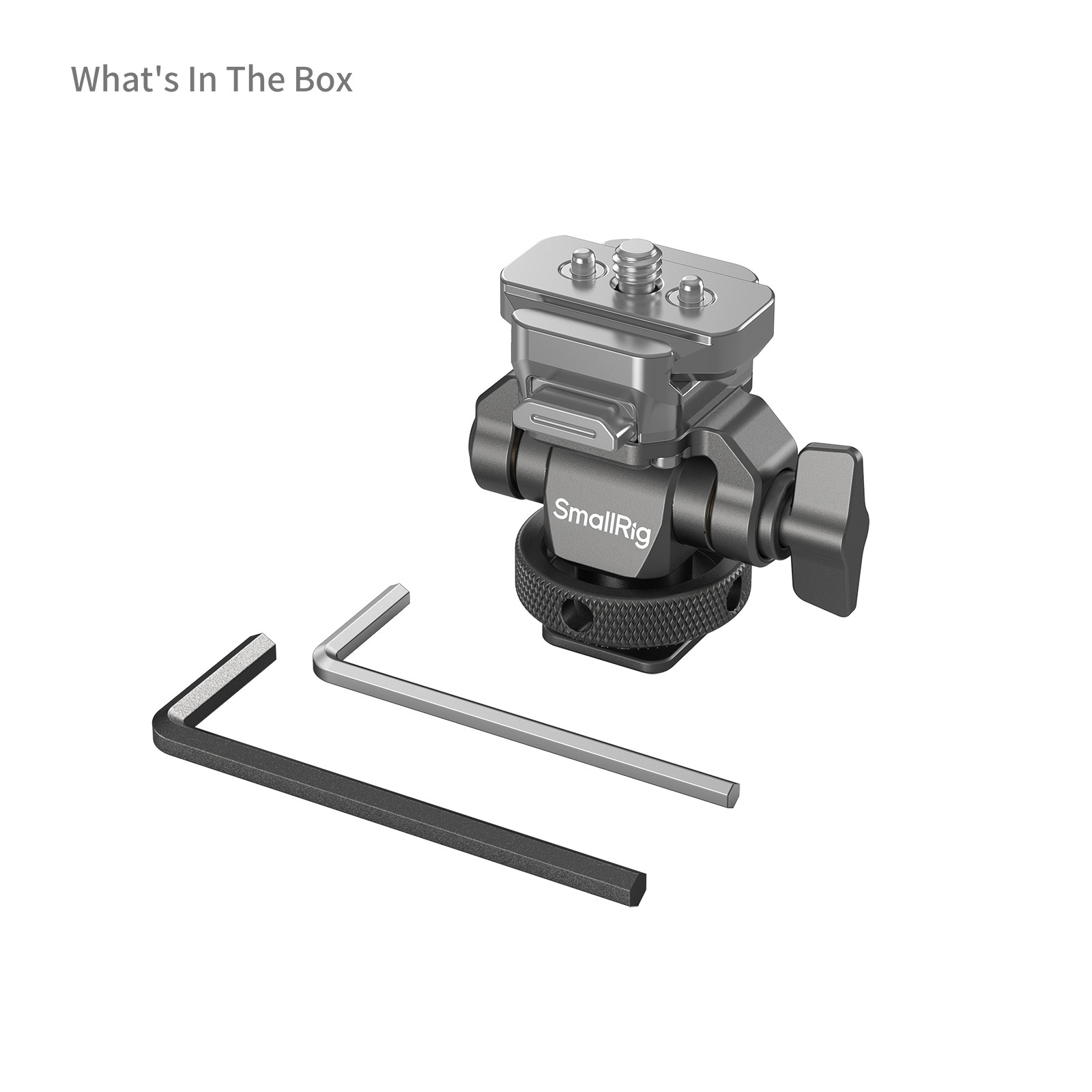

Packing List
Quick Release NATO Rail x 1
Quick Release Monitor Support x 1
Allen Wrench x 2
Technical Data

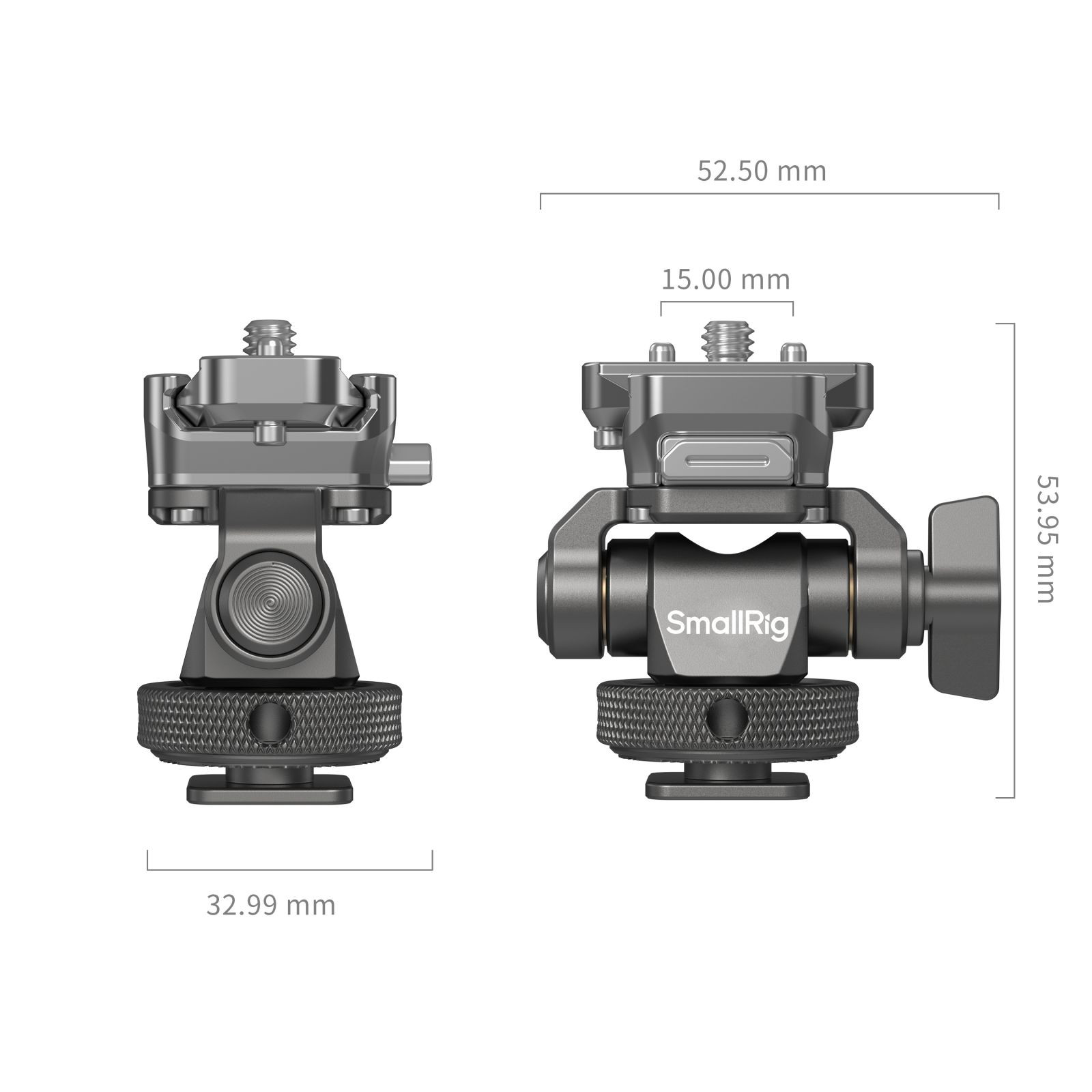

Product Dimensions: 52.0 x 33.0 x 54.0mm / 2.0 x 1.3 x 2.1in
Package Dimensions: 77.0 x 65.5 x 41.0mm / 3.0 x 2.6 x 1.6in
Product Weight: 77.0 ± 5.0g / 2.7 ± 0.2oz
Package Weight: 95.0 ± 5.0g / 3.3 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
