SmallRig Four-Channel Camera Battery Charger for EN-EL15c 5747

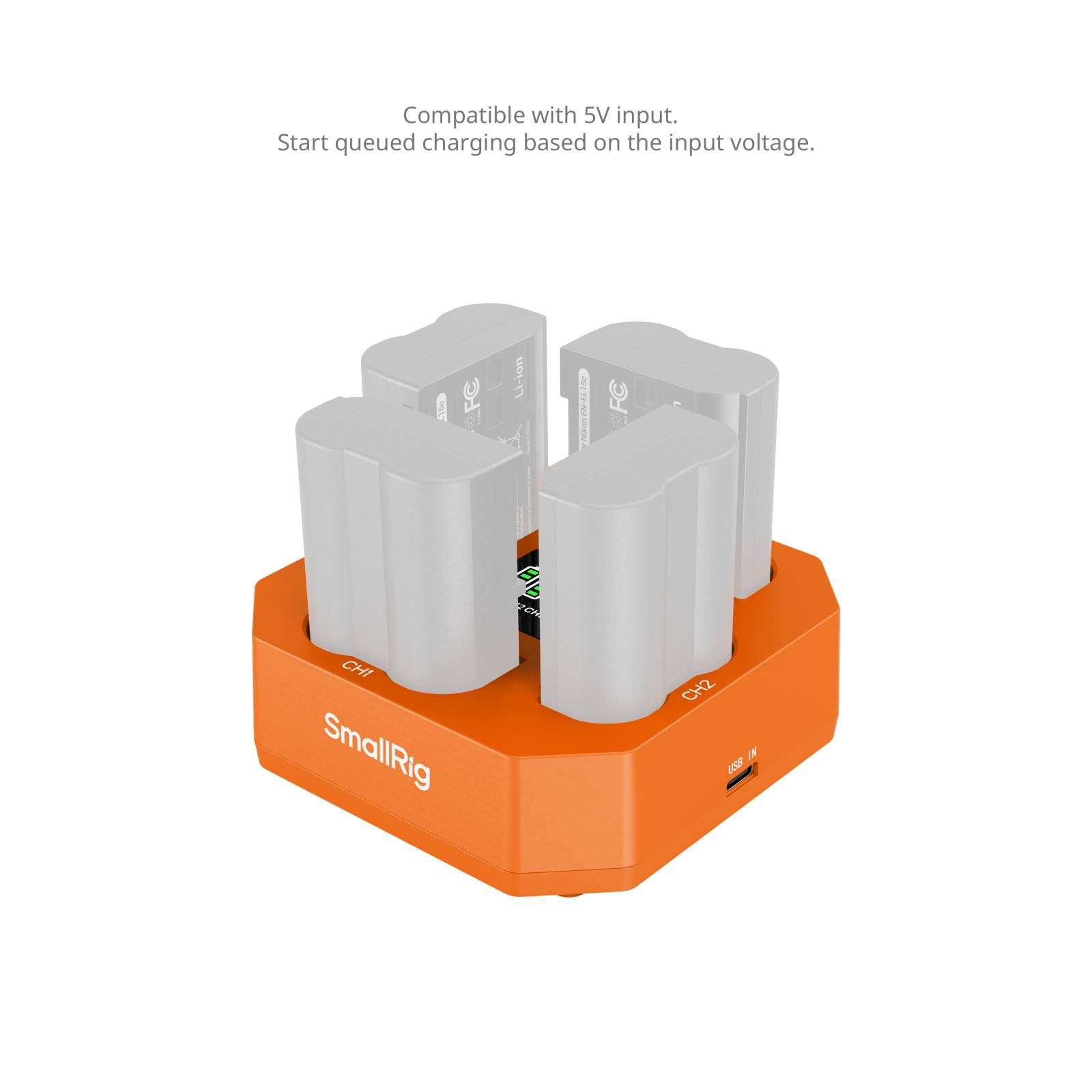

SmallRig Four-Channel Camera Battery Charger for EN-EL15c 5747 is a high-efficiency, high-power charger designed for EN-EL15c batteries. With a 45W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.
The four dedicated channels allow for simultaneous charging of four EN-EL15c batteries, delivering efficient fast charging to meet demanding shooting schedules.
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Charging Time:
Battery Capacity: 2520mAh (e.g., ID 5269, 4966, 4332)

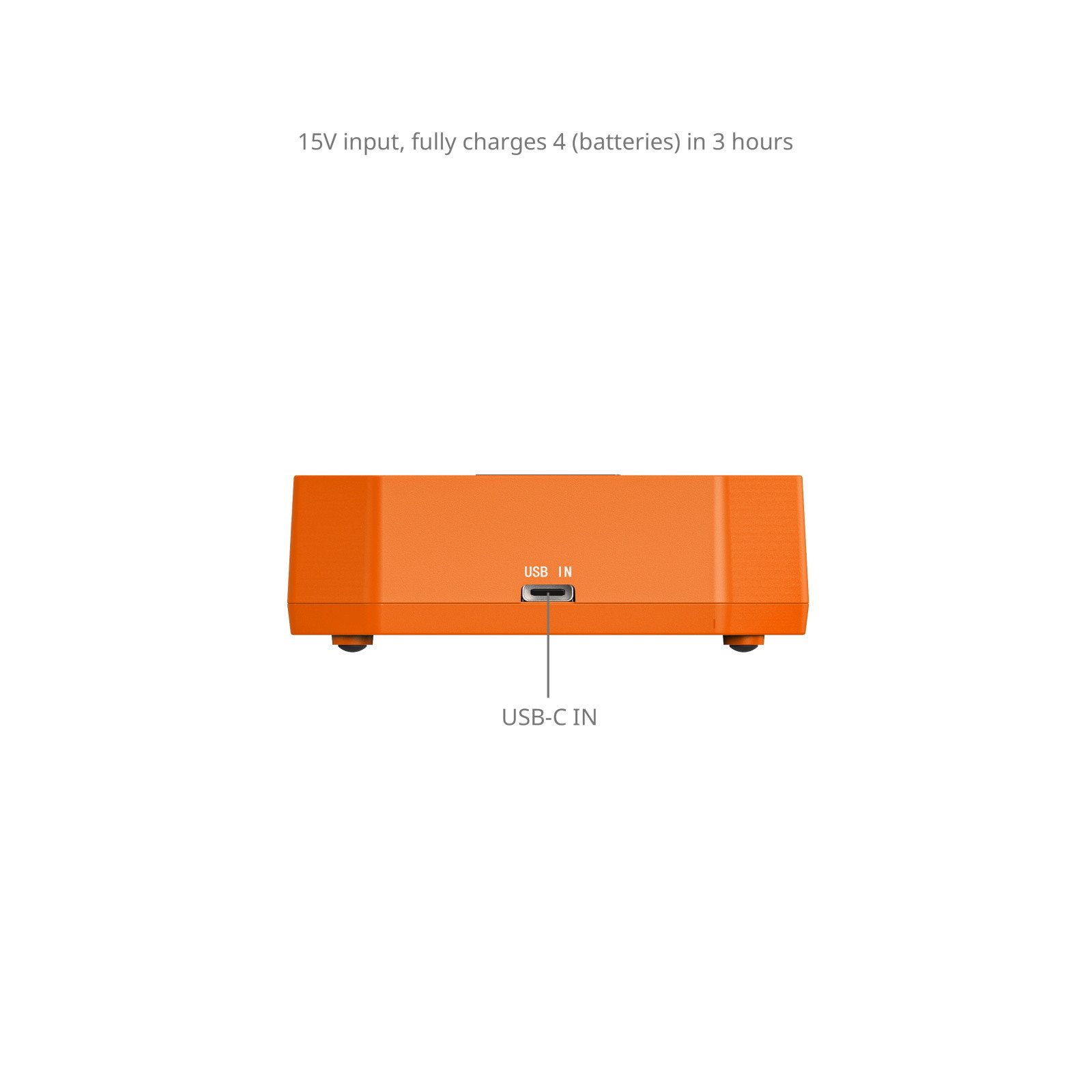

Full Charge: 4 batteries in 3 hours
Note: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.
Certifications: Quality Inspection Report / FCC / CE / KC / RCM / ISED
Indicator Light Functions:
1. When connected to a USB adapter, the charger will perform an automatic system check. The four LEDs will light in sequence and then turn off, indicating the charger is ready for use.
2. When a battery is inserted, the corresponding channel’s LEDs will blink according to the current battery level. The lit bars will increment step-by-step until all 4 LEDs remain solid, indicating a full charge.
3. When a battery is removed, the indicator lights for the corresponding channel will turn off.
4. When a battery is inserted while the charger is disconnected from power, the indicator will display the current charge level for 5 seconds. If the battery level is below 25%, the 25% indicator will blink.
5. If the input adapter power is insufficient, the charger will prioritize charging the battery with the highest charge level first, proceeding from highest to lowest until all batteries are fully charged.
6. Abnormal Status Alert: All 16 LEDs will blink rapidly to indicate an abnormal condition.
Work With
Z8, Z7Ⅱ, Z7, Z6Ⅲ, Z6Ⅱ, Z6, Z5Ⅱ, Z5, Zf, D850, D810, D810A, D780, D750, D610, D800, D800E, and other cameras using EN-EL15c batteries.

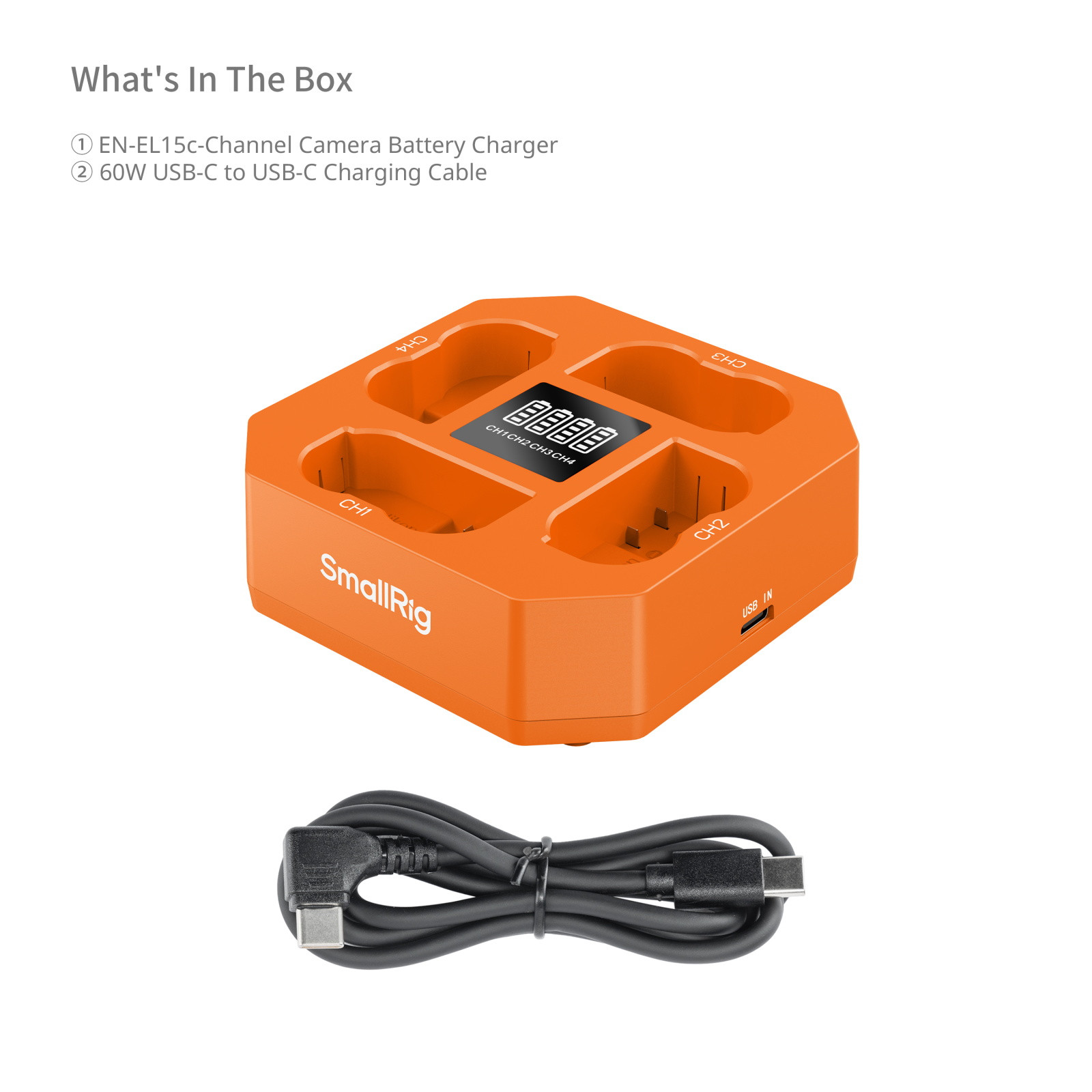

Packing List
EN-EL15c Four-Channel Charger × 1
65W USB-C to USB-C Charging Cable × 1
User Manual × 1
Guarantee Card × 1
Technical Data

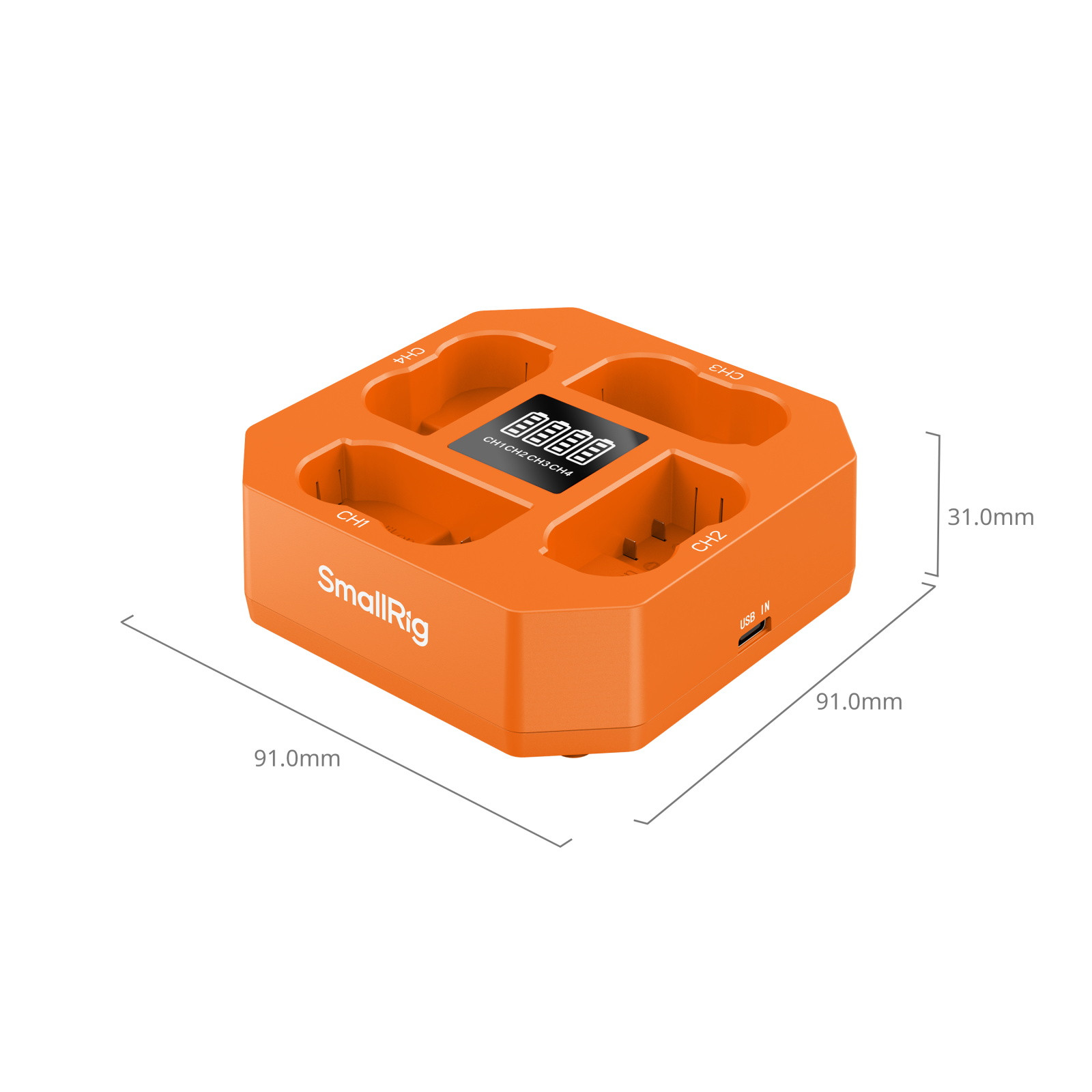

Product Dimensions: 91.0 × 91.0 × 31.0mm / 3.6 × 3.6 × 1.2in
Package Dimensions: 99.0 × 38.0 × 129.0mm / 3.9 × 1.5 × 5.1in
Product Weight: 115.0 ± 5.0g / 4.1 ± 0.2oz
Package Weight: 204.0 ± 5.0g / 7.48 ± 0.2oz
Material(s): ABS + PC
USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓3A (Max 45W)
Output (per channel): 8.4V⎓1A
USB-C Protocol: PD
Charge Limit Voltage: 8.45V
Operating Temperature: 0°C – 45°C / 32°F – 113°F
