SmallRig EVF Mount with NATO Clamp and Arri Rosette 1583B

SmallRig EVF Mount with NATO Clamp and Arri Rosette 1583B
$50.40
Sku 1583B

Availability: In stock 17

Product Description



SmallRig EVF Mount with NATO Clamp and Arri Rosette 1583

This is an EVF mount for Zacuto Gratical HD EVF. The rosette is in standard ARRI style(31.8mm diameter).It can be attached to a Zacuto Gratical HD EVF with the 1/4" screw on one end, the arm can swivel freely for adjusting the position of EVF.It can also be attached to a NATO rail for sliding up and down.

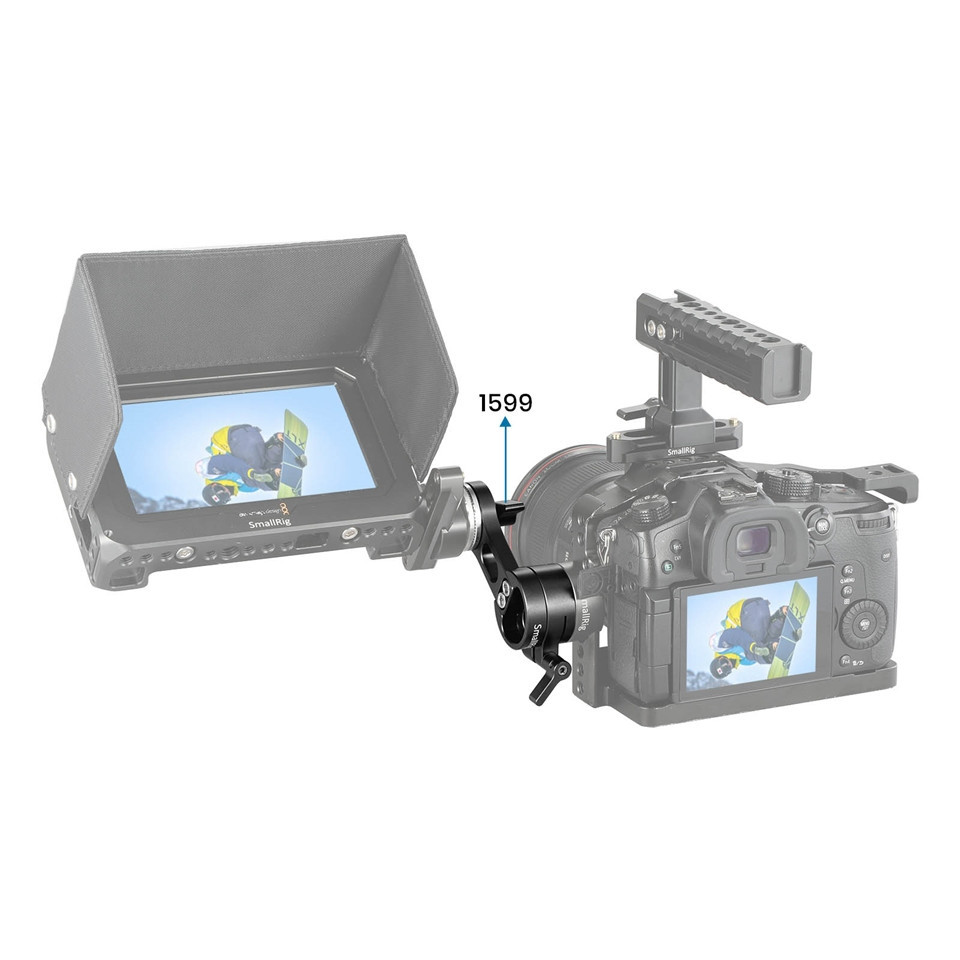

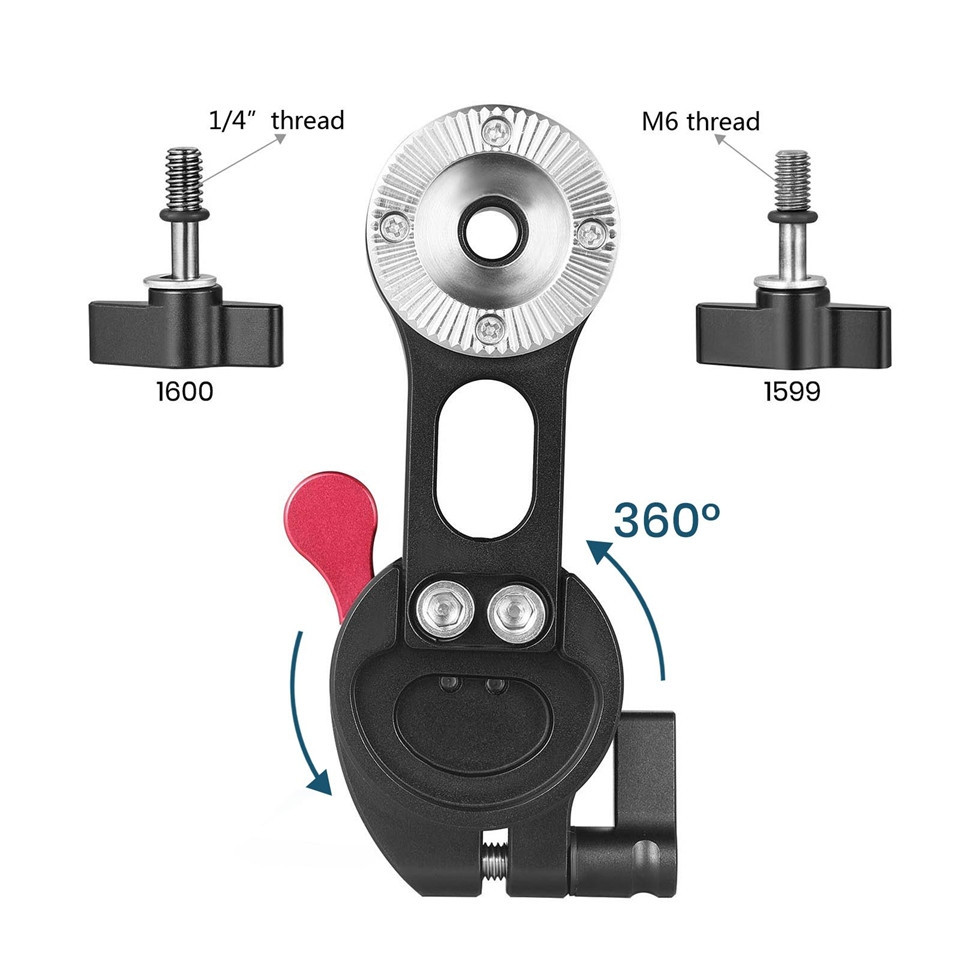

Note: If you want to attach this EVF mount to a device coming with a standard ARRI Rosette mount(M6 thread), please go order the M6 wingnut 1599.

Key Features

1. It supports 360°adjustment of monitoring.

2. It supports monitor/EVF no more than 2.0kg.

3. It could be used together with NATO Rail 1195 for quick release and attachment.

4. It comes with Arri rosette mount with 1/4" screw for Zacuto Gratical HD EVF.

Work With

Monitor/EVF no more than 2.0kg

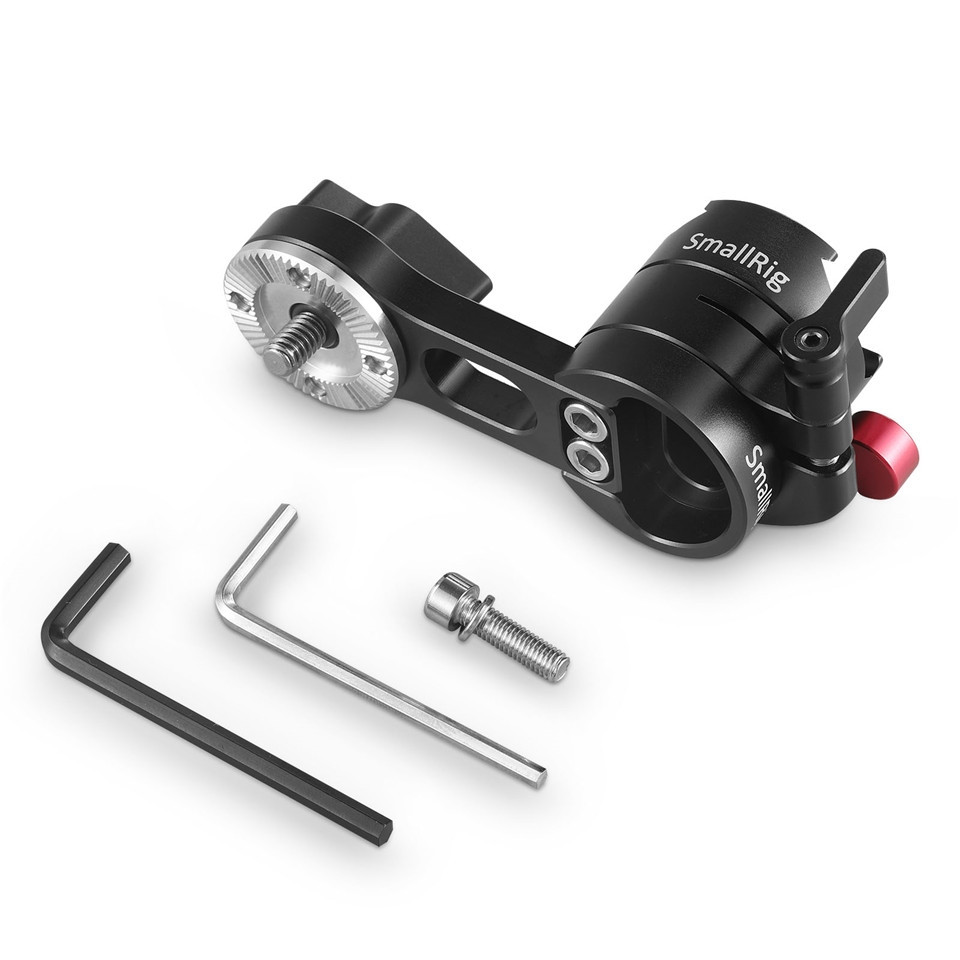

Packing List

1 x EVF Mount 1583

1 x M5 Screw

2 x Hex Spanner

Technical Data

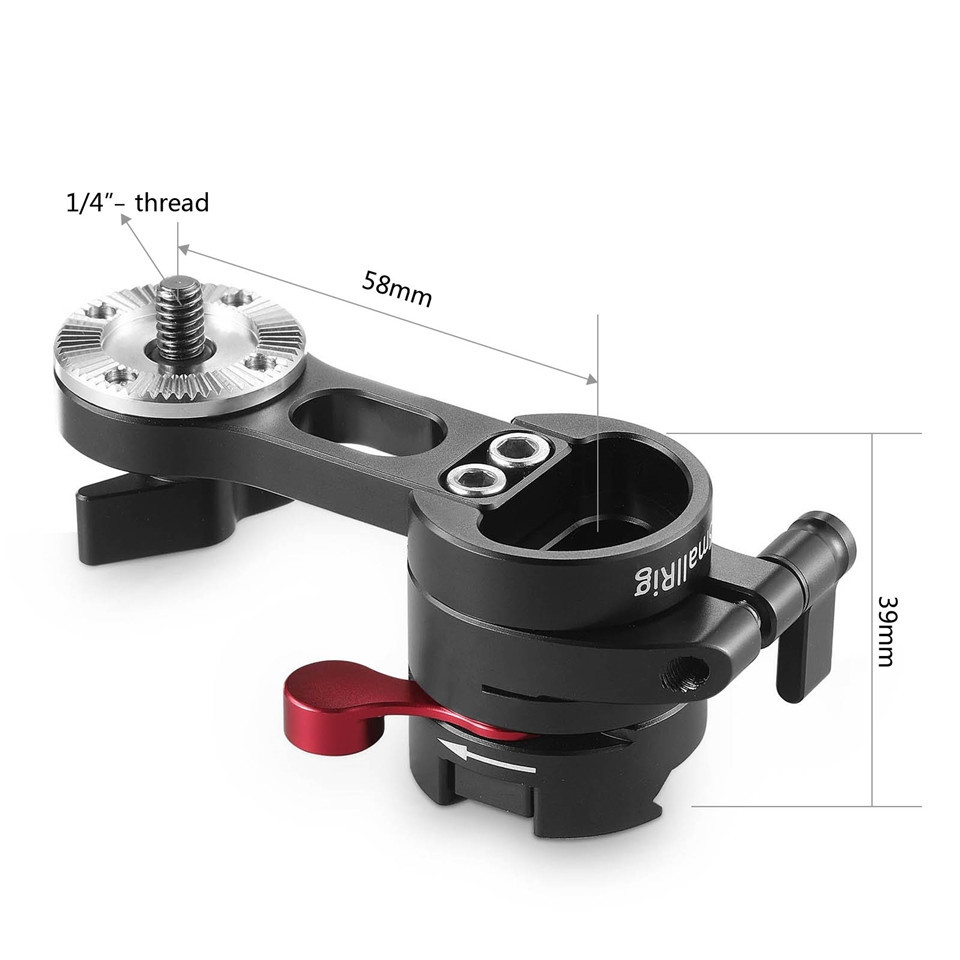

Product Dimensions: 100x52.5x48 mm

Net Weight: 161g

Package Size: 155x80x40 mm

Material(s): Aluminum Alloy
