SmallRig Drop-in HawkLock Universal mini Quick Release Plate and Clamp 3513C

SmallRig Drop-in HawkLock Universal mini Quick Release Plate and Clamp 3513C

1. Highly  compatible with tripods, cages, heads, etc. via 1/4"-20 holes, and features optional dowel pins.

2. Exclusive patent adapts with dual locking structure, providing high load capacity and no shaking.

3. Quickly locked and unlocked  through a click without jamming.

4. Compact and portable.

$19.90
Sku 3513C
EAN 6941590012834

Availability: Available soon

This product has been viewed 679 times

Product Description



SmallRig Drop-in HawkLock Universal mini Quick Release Plate and Clamp 3513C

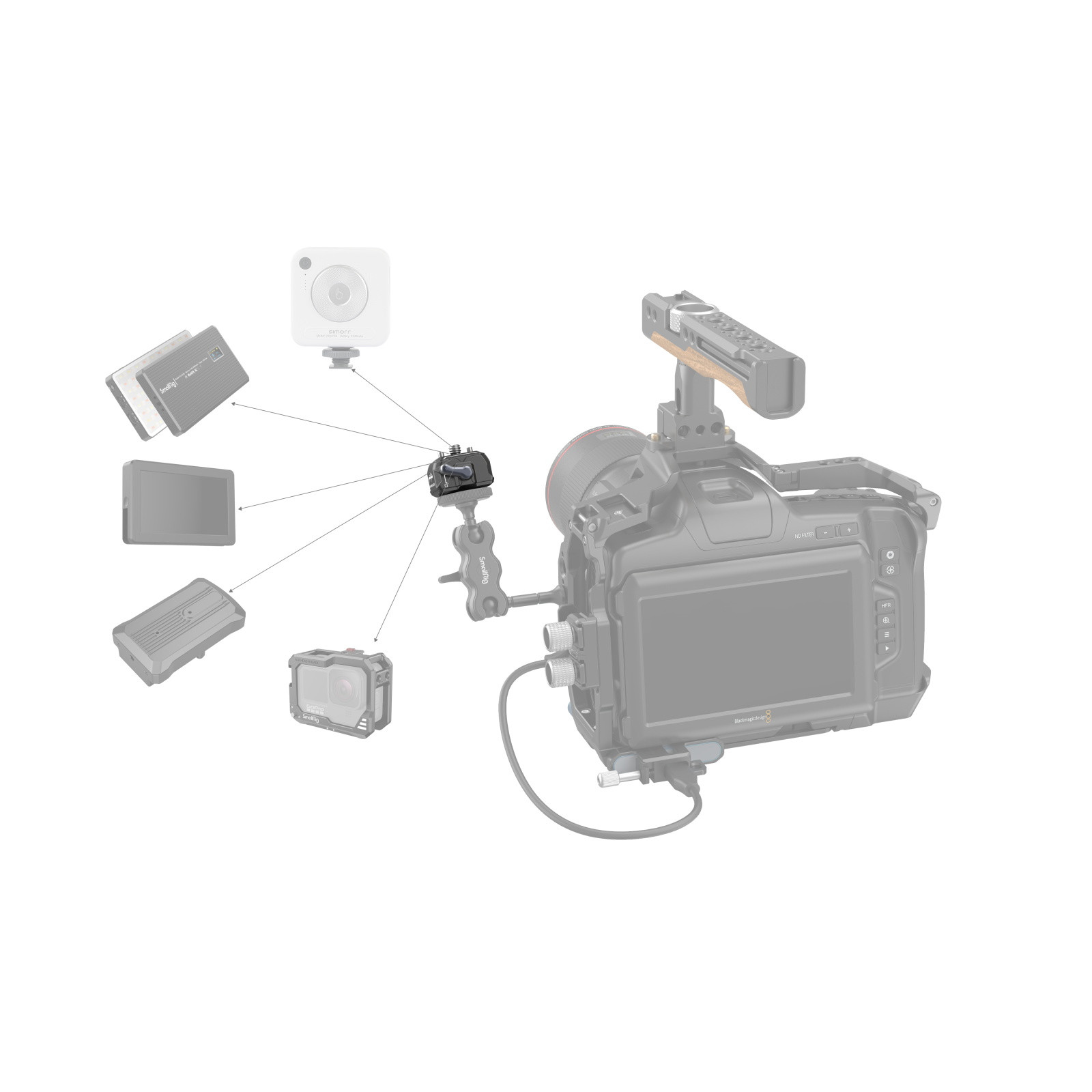

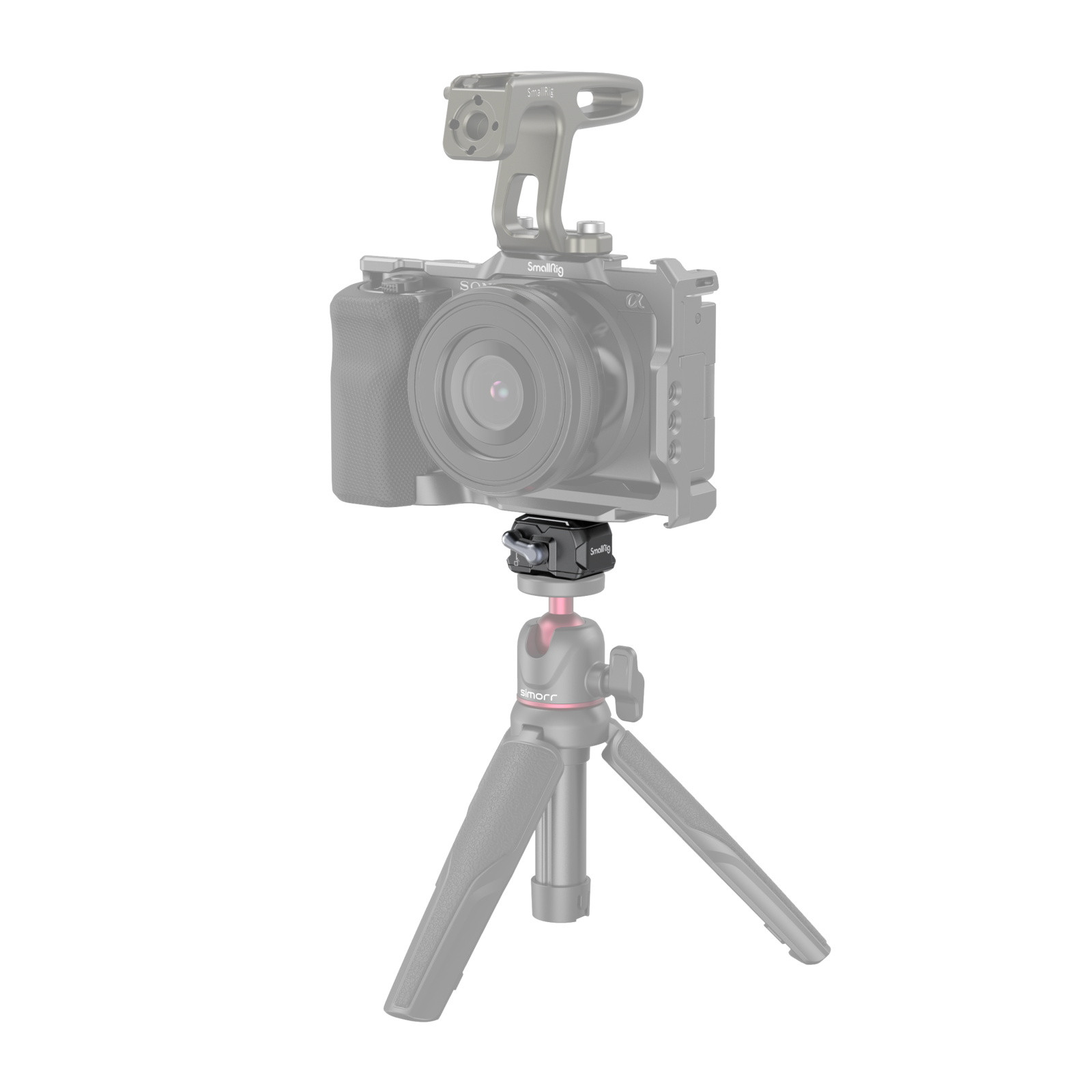

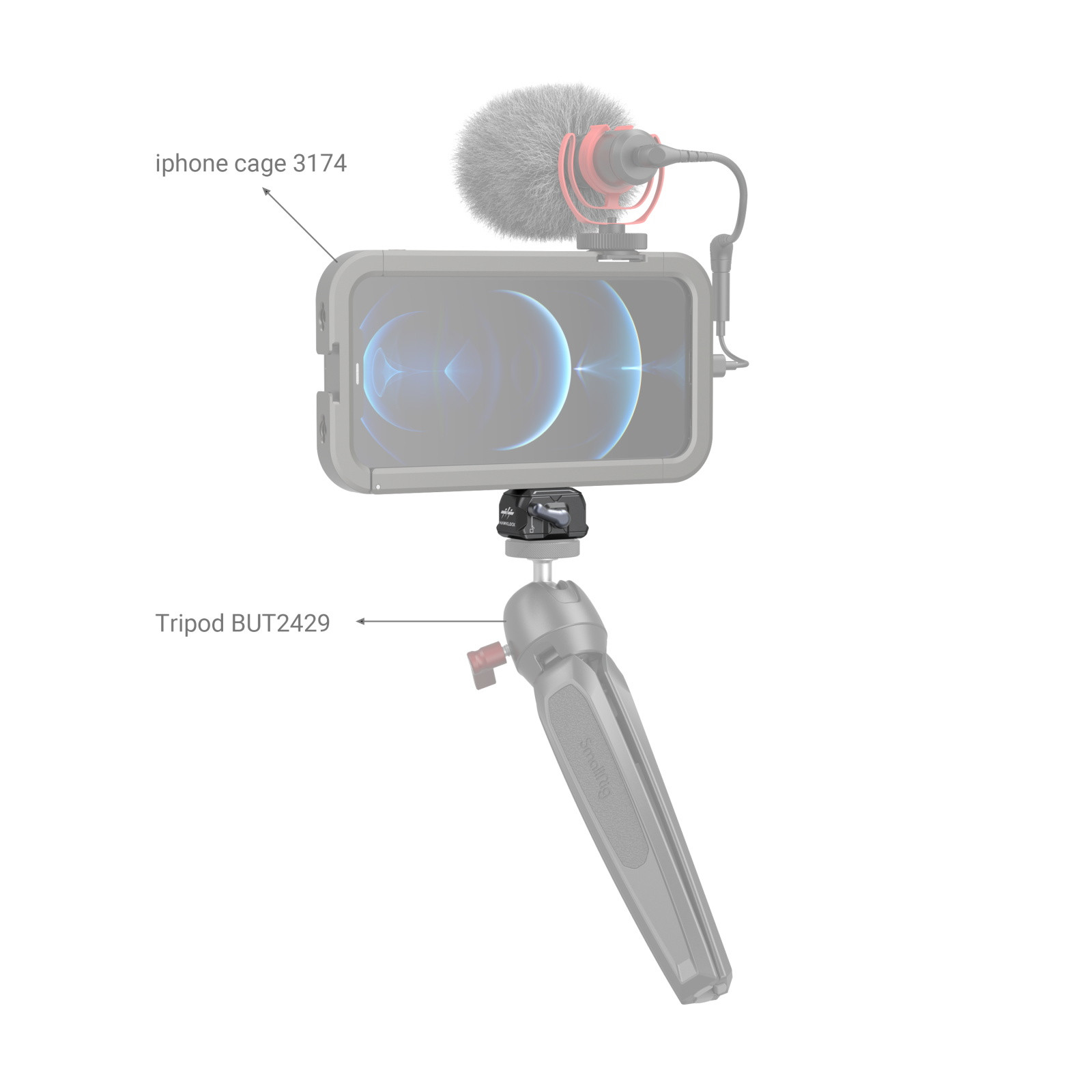

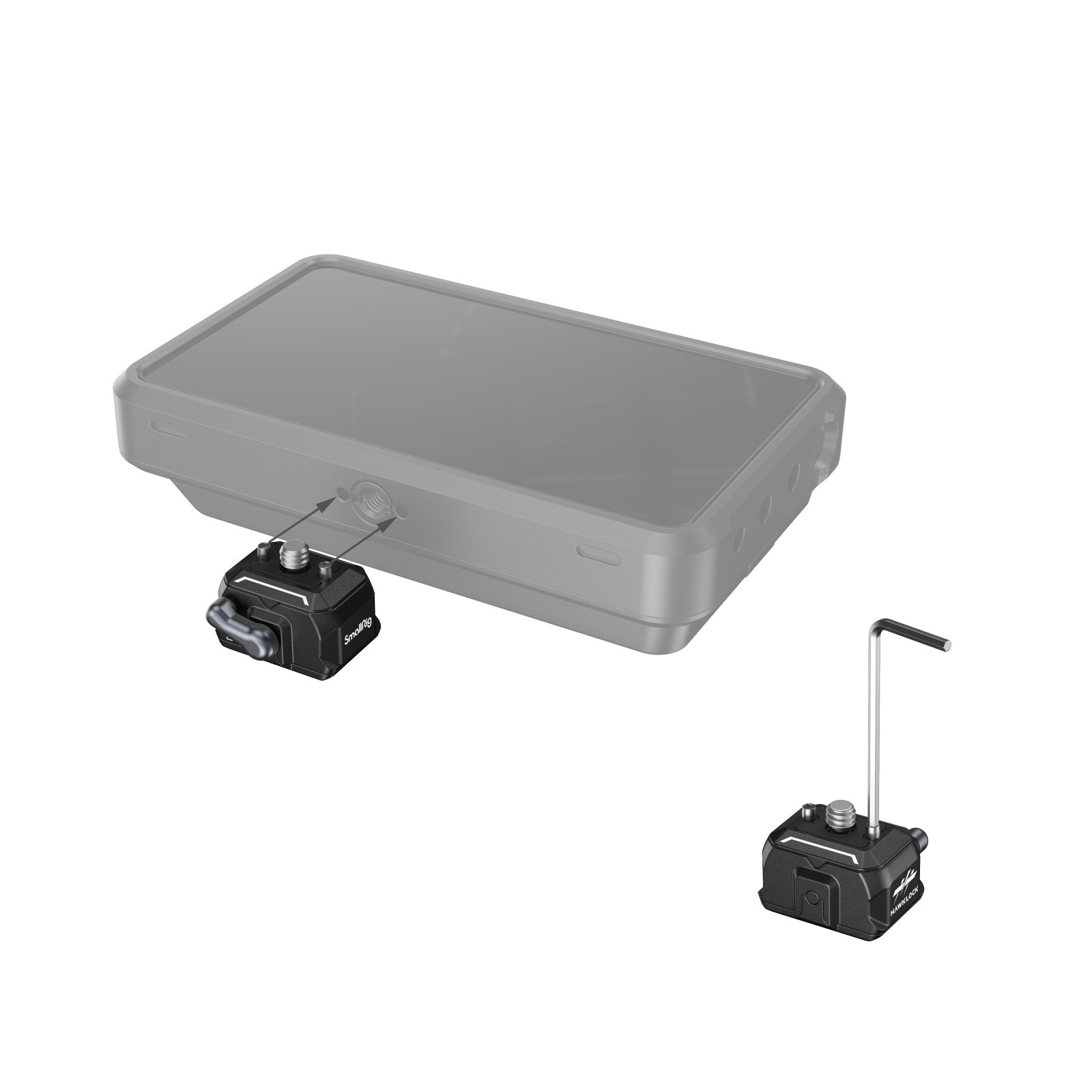

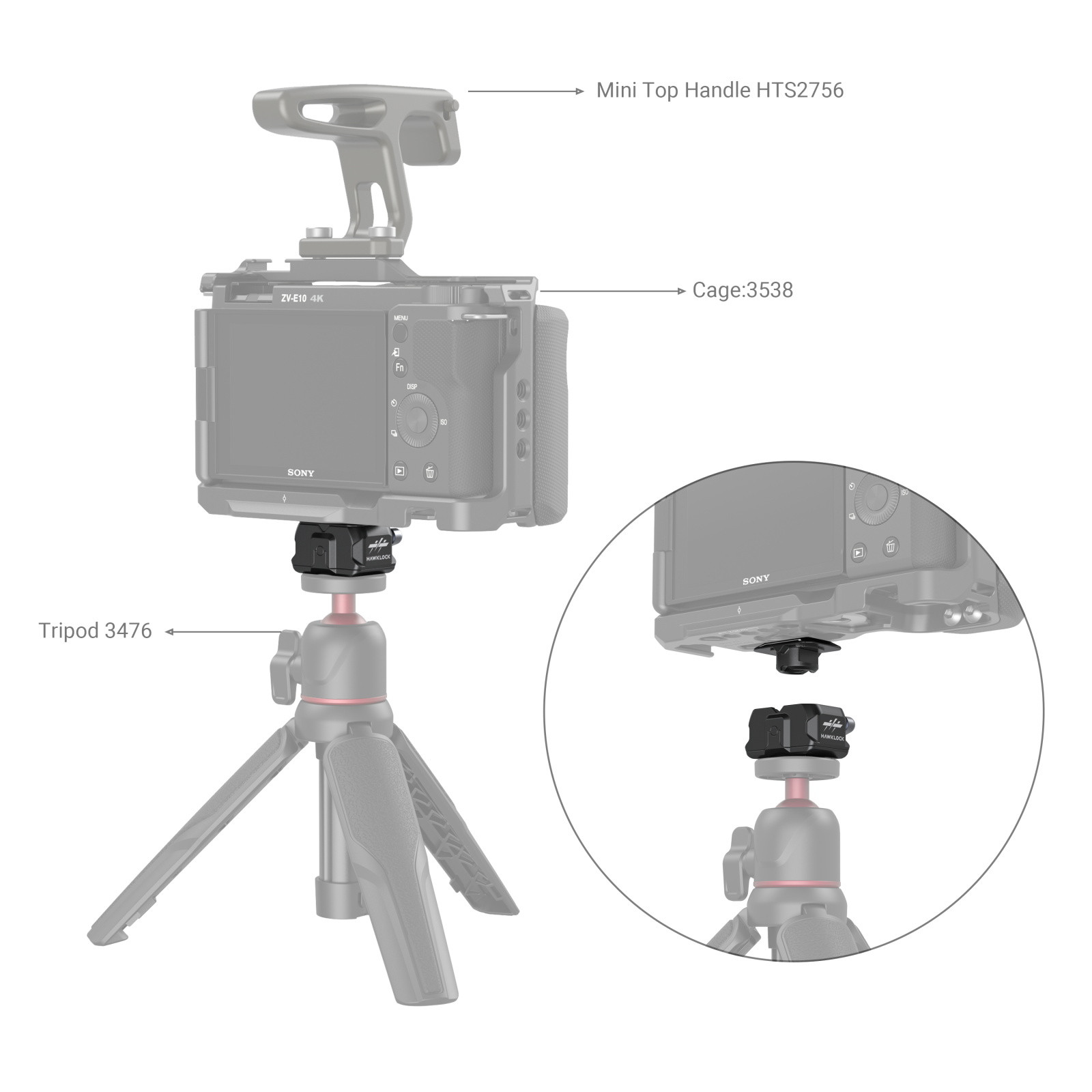

SmallRig Drop-in HawkLock Universal mini Quick Release Plate and Clamp 3513C comprises a quick-release plate and a baseplate. The quick-release plate supports devices with 1/4"-20 threads, such as cameras, monitors, cages, mounting plates, etc.; the quick-release plate is reserved for 2 optional dowel pins, which can be removed and installed as needed to effectively prevent the devices from deflection.  Its 1/4"-20 threaded holes on the bottom allow attaching devices with 1/4"-20 screws, like tabletop tripods, ball heads, etc. It can buckle vertically and stably into the baseplate, causing no deflection. The whole kit, featuring a maximum dynamic load capacity of 5kg, is easy to lock and unlock for multiple shooting scenes. With built-in silicone pads on the top to prevent deflection and scratches.

Note:

1. In order to prevent accidental contact from causing unlocking, the structure of HawkLock Quick Release is designed to prevent accidental contact, and the wrench also has a certain free movement in the locked state. The situation mentioned above is not a quality problem without affecting normal use.

2. The dowel pins are only compatible with Atomos Ninja V, Ninja V +, and Atomos Shinobi 7; The dowel pins need to be removed when using other brands of monitors.

Work With

Universal

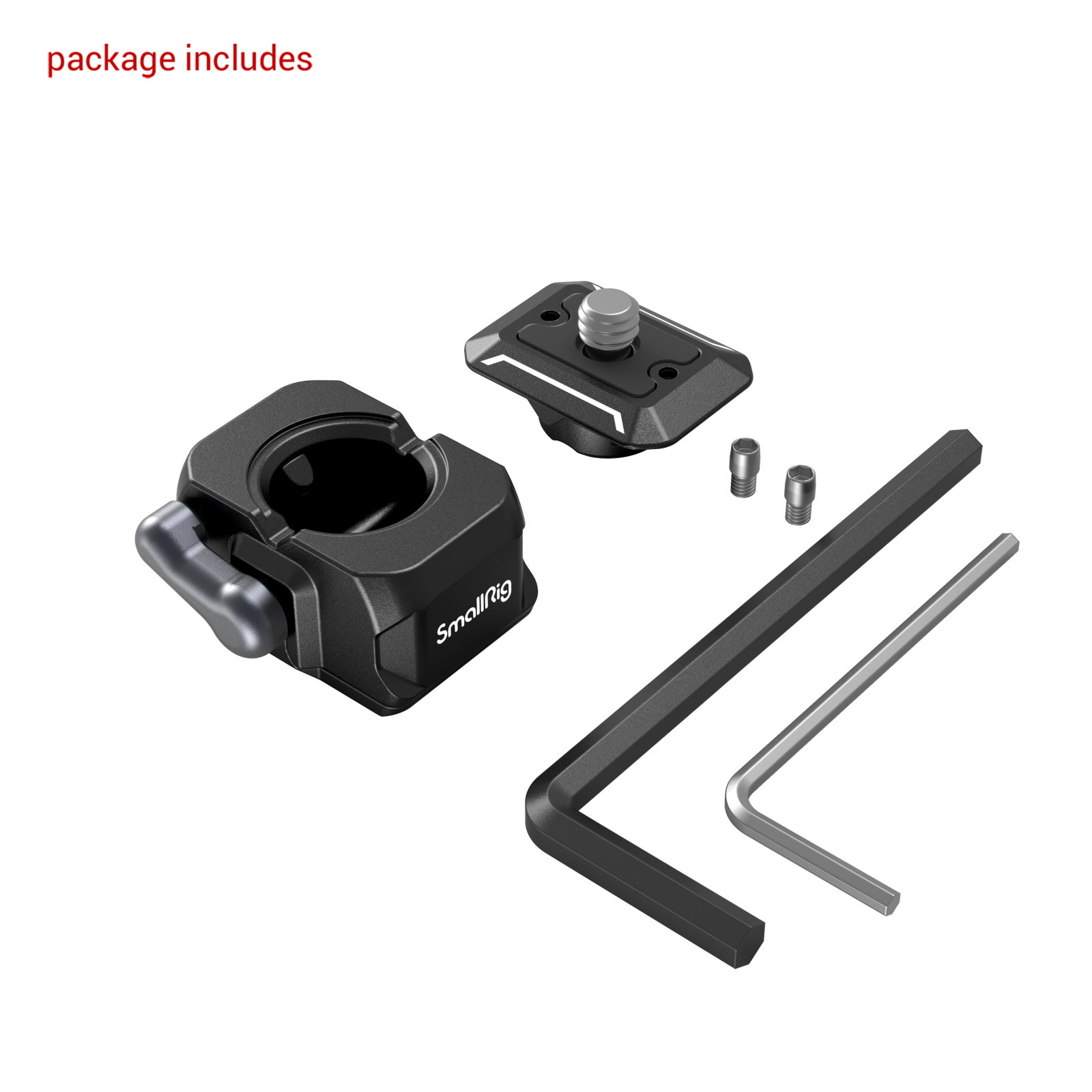

Packing List

1 x Quick Release Clamp and Plate

2 x Allen Wrench

Technical Data

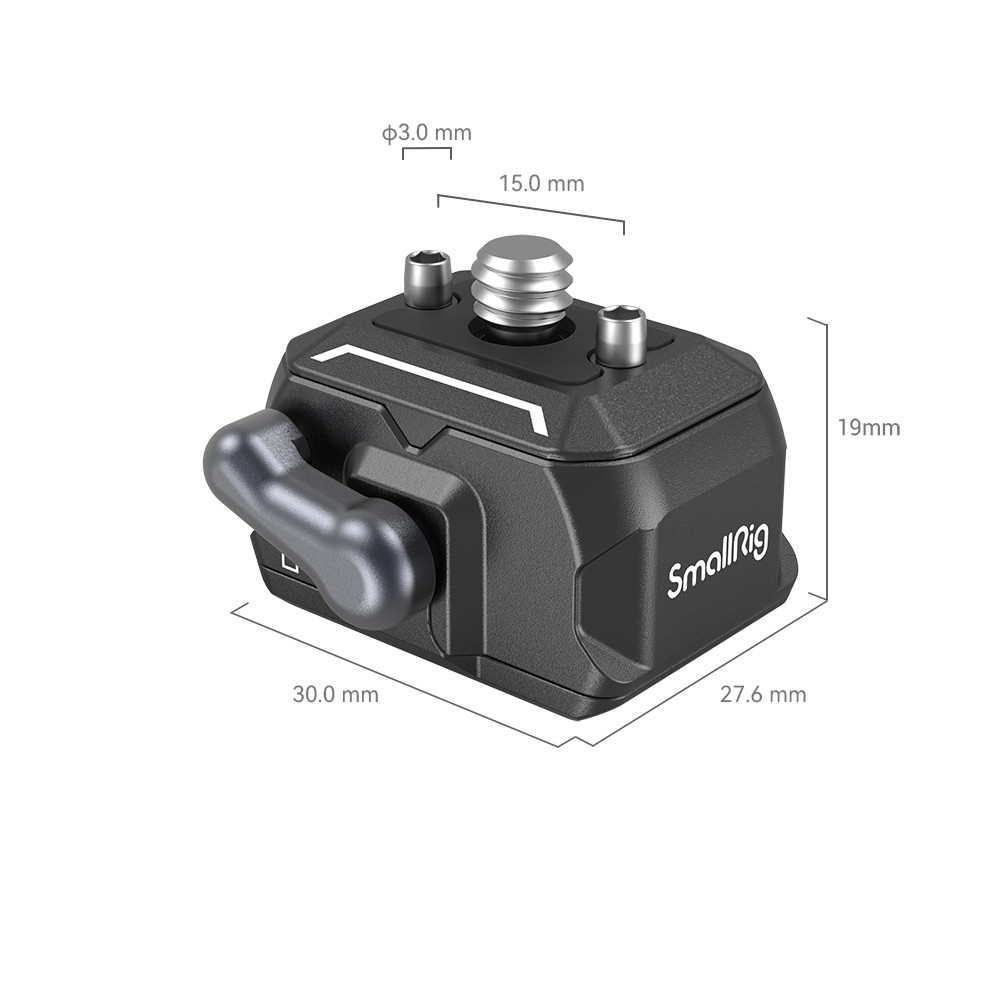

Product Dimensions: 30 x 27.6 x 25.3 mm

Package Dimensions: 65 x 54 x 42 mm

Net Weight: 38g±5g

Package Weight: 64g±5g

Material: Aluminum Alloy, Stainless Steel
