SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 5373

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 5373

1. Made of aircraft-grade aluminum alloy and stainless steel for increased sturdiness and durability.

2. 3.5kg / 7.7lb load capacity, which is compatible with most photographic accessories.

3. Features ARRI 3/8"-16 locating holes and one 3/8"-16 threaded hole for wider compatibility.

4. Features an anti-twist design to prevent loosening.

5. 14mm-65mm / 0.5in-2.5in wider clamping range, and built-in anti-slip pads for more safety and stability.

$19.99
Sku 5373
EAN 6941590023519

Availability: In stock 107

This product has been viewed 40 times

Product Description

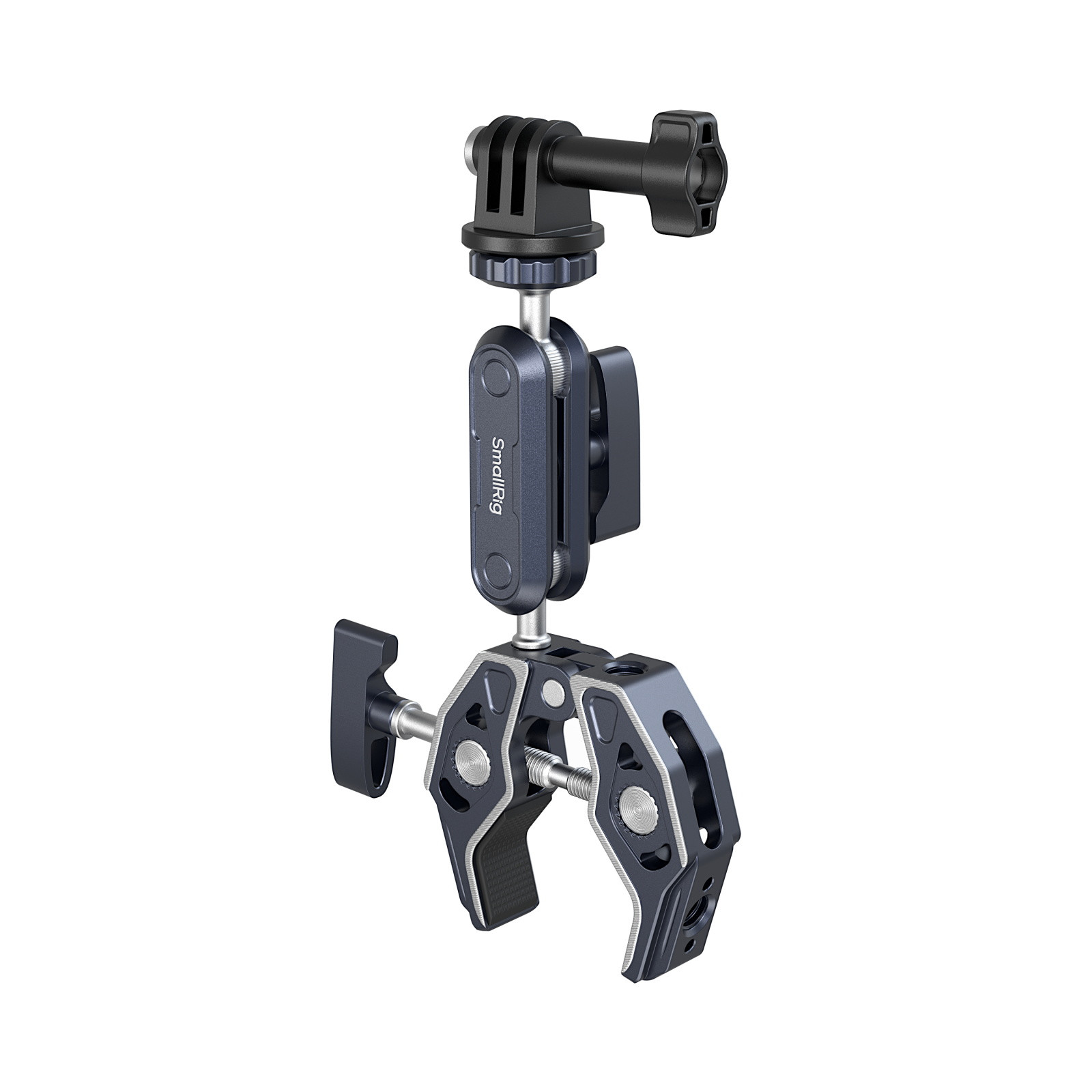

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 5373

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 5373 is constructed from aircraft-grade aluminum alloy and stainless steel, featuring CNC machining and precision carving to enhance sturdiness and durability. It incorporates a bionic skeleton structure and a shark clamp design for a stronger clamping force, while the ARRI 3/8"-16 locating holes and a 3/8"-16 threaded hole allow for rich accessory expansion.

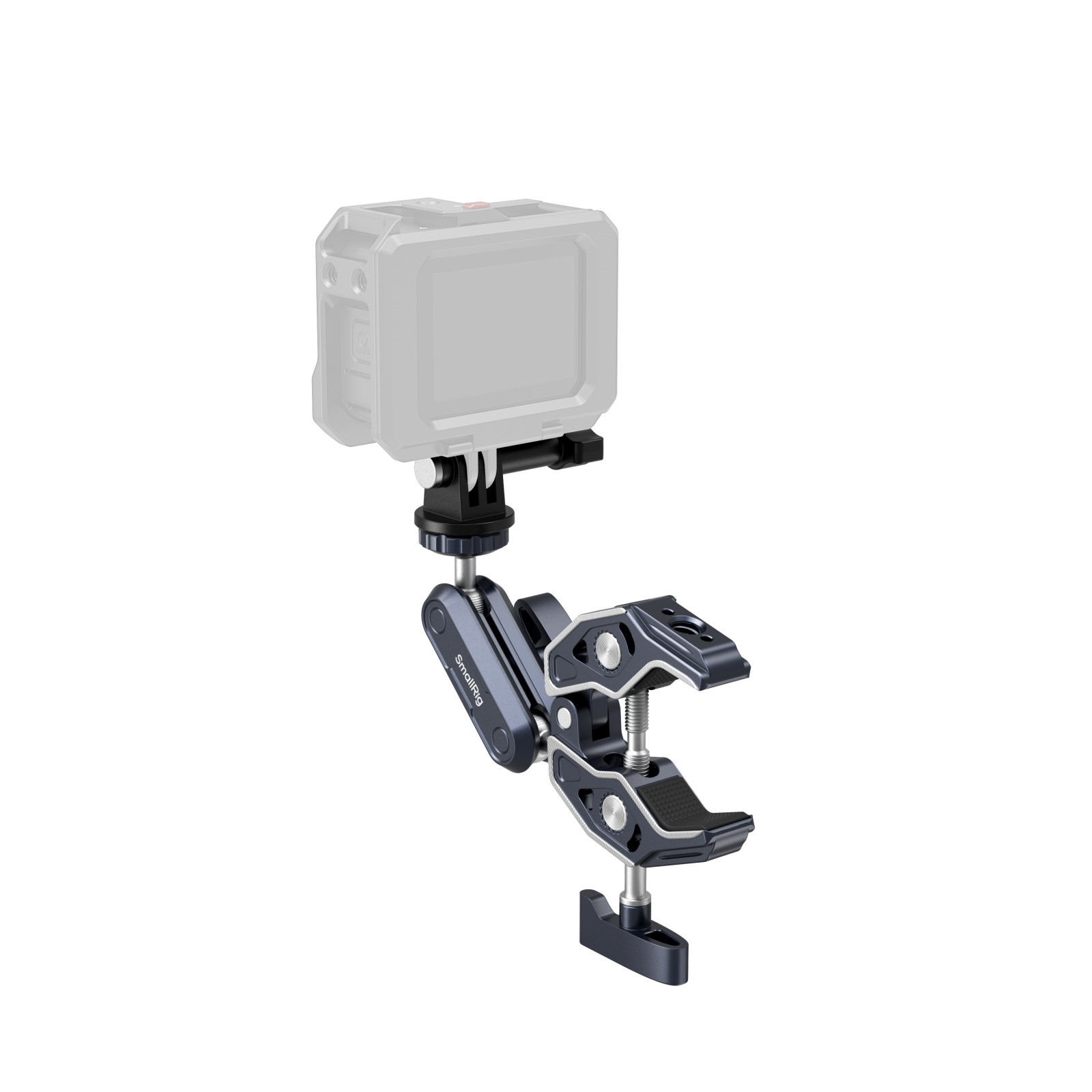

The clamp supports rods ranging from Φ14mm to Φ60mm and surfaces up to 65mm (2.5 in) thick, allowing for quick mounting of cameras, monitors, LED video lights, and more onto rods, tables, tripod legs, and stabilizer handheld rings. Built-in pads enhance protection and clamping stability.

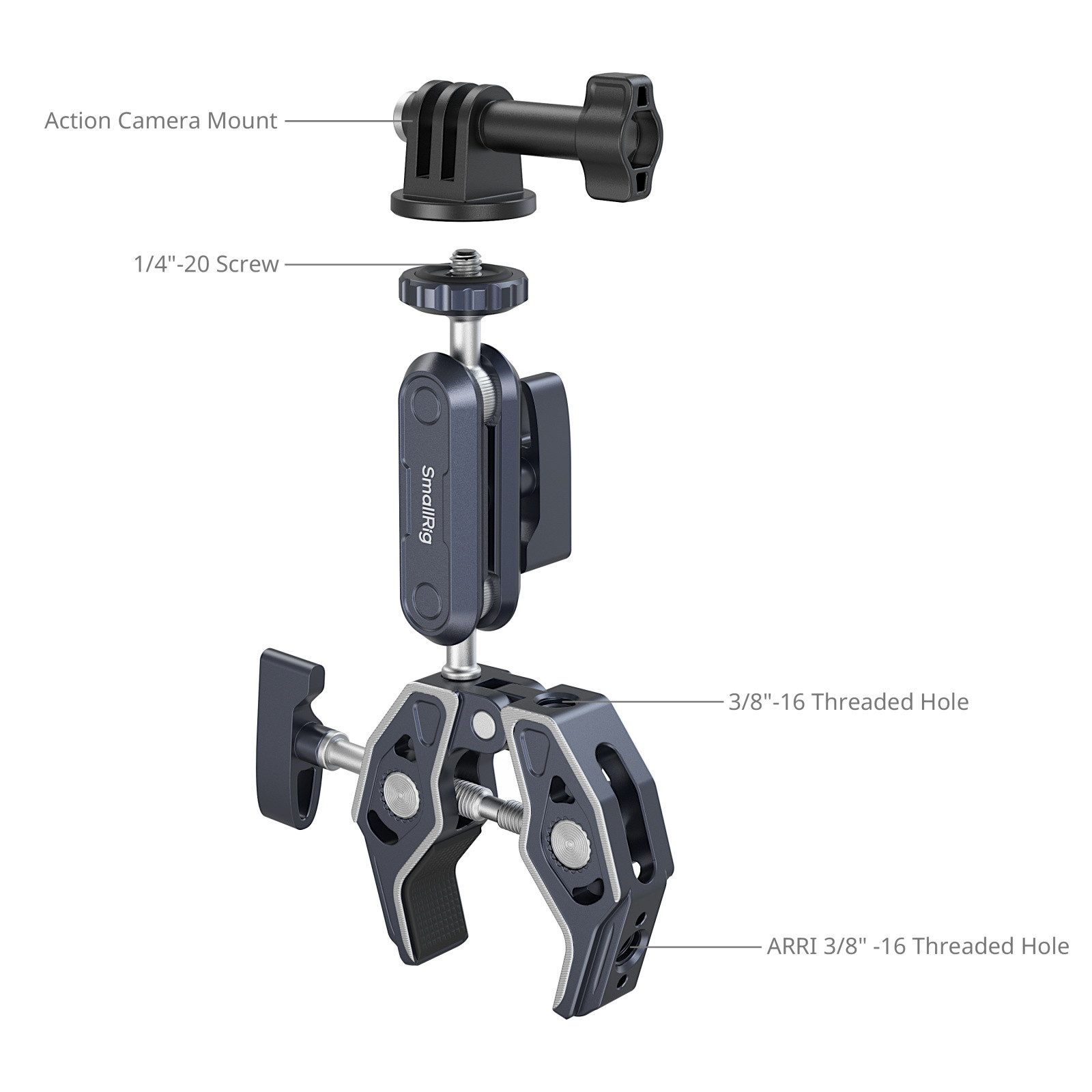

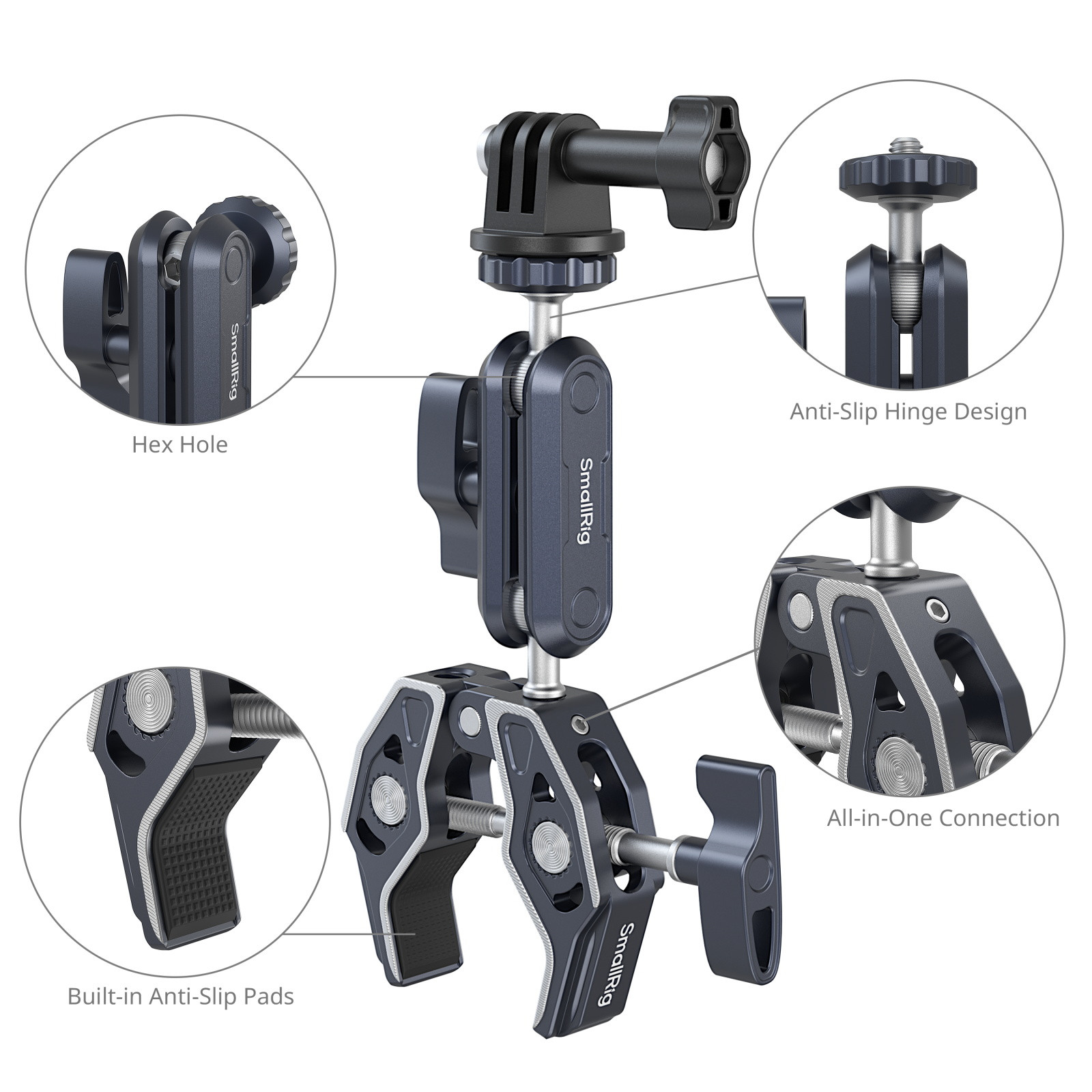

The ballhead magic arm, secured to the clamp via a set screw, features two adjustable ball heads and a ballhead clamp. The 360-degree adjustable ball heads feature anti-slip knurling for easy tightening, while the joint between the ballhead magic arm and the crab-shaped clamp employs an anti-twist design to prevent loosening. Additionally, a hex hole at the bottom allows for enhanced fastening with an Allen wrench, and a 1/4"-20 screw on the top facilitates the attachment of action cameras, monitors, LED video lights, microphones, and more.

Note:

1. Please do not disassemble the original set screw, as it may cause deflection of the ballhead magic arm.

2. Please do not disassemble the original set screw to replace the ballhead magic arm, as it may result in thread failure.

Work With

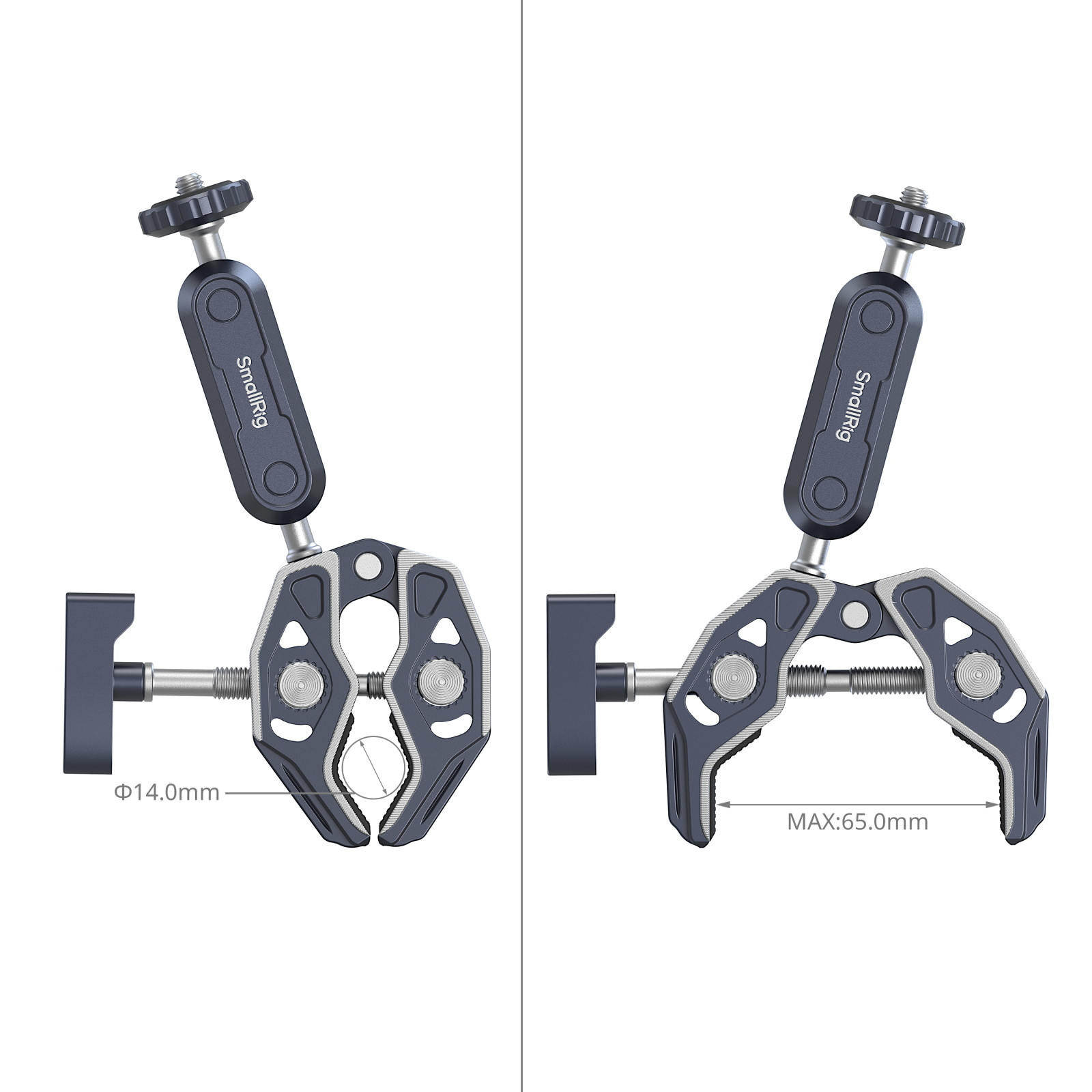

Rod ranging from Φ14mm to Φ60mm

Surface up to 65mm / 2.5in thick

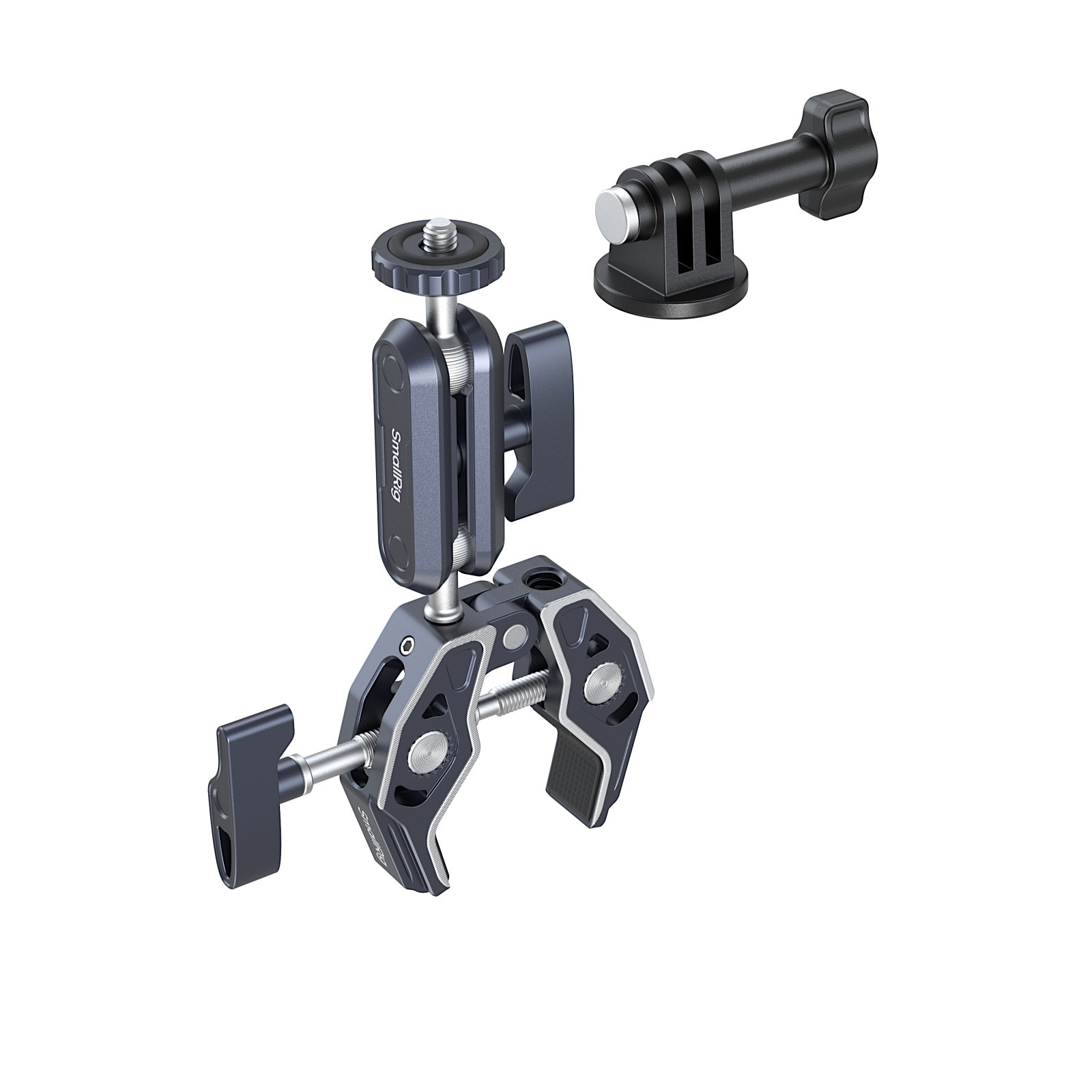

Packing List

Crab-Shaped Clamp x 1

Ballhead Magic Arm x 1

Action Camera Mount x 1

Technical Data

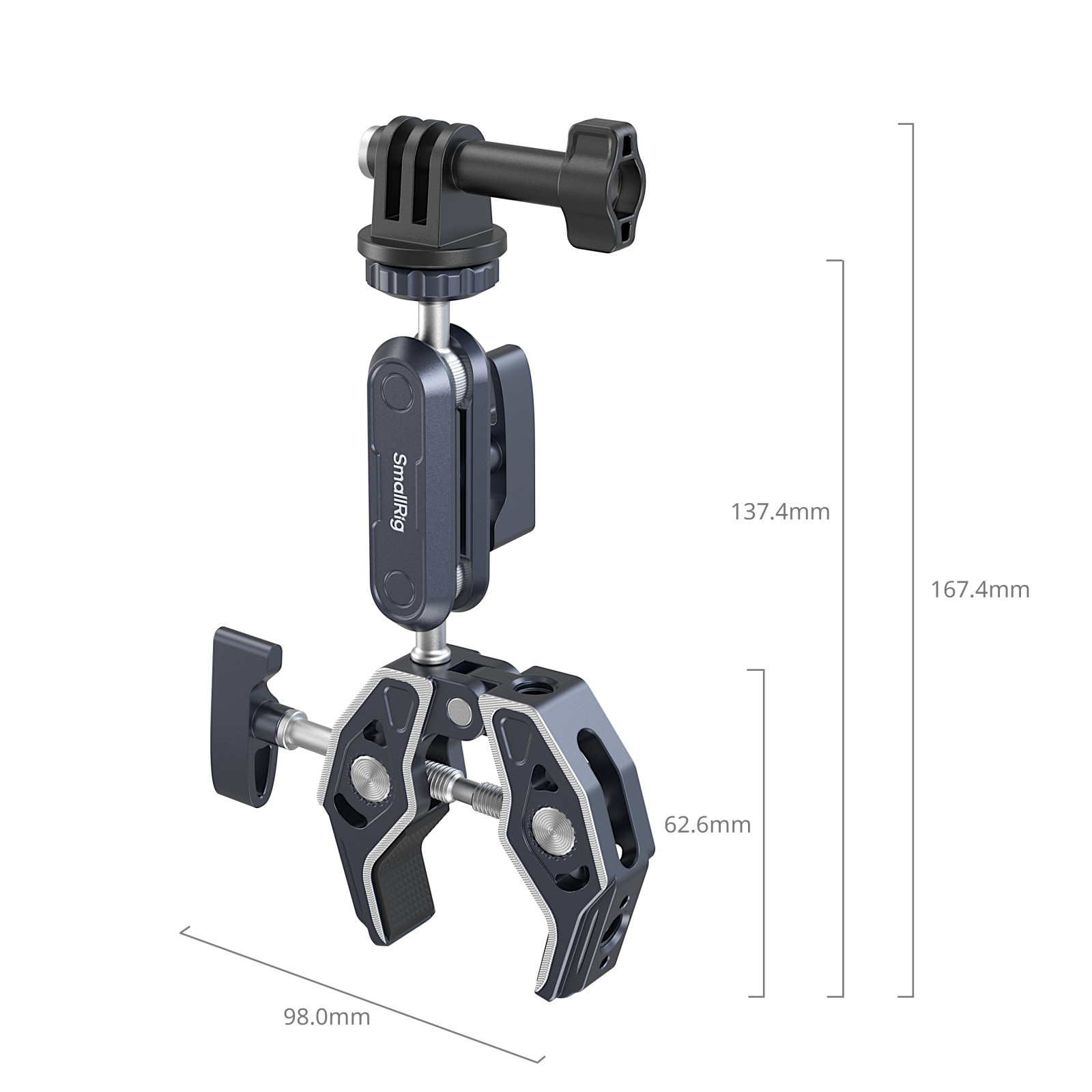

Product Dimensions: 141.0 x 89.8 x 18.0mm / 5.6 x 3.5 x 0.7in

Package Dimensions: 137.0 x 104.0 x 52.0mm / 5.4 x 4.1 x 2.0in

Product Weight: 205.0 ± 5.0g / 7.2 ± 0.2oz

Package Weight: 430.0 ± 5.0g / 15.2 ± 0.2oz

Material(s): Aluminum Alloy, Stainless Steel, Silicone
