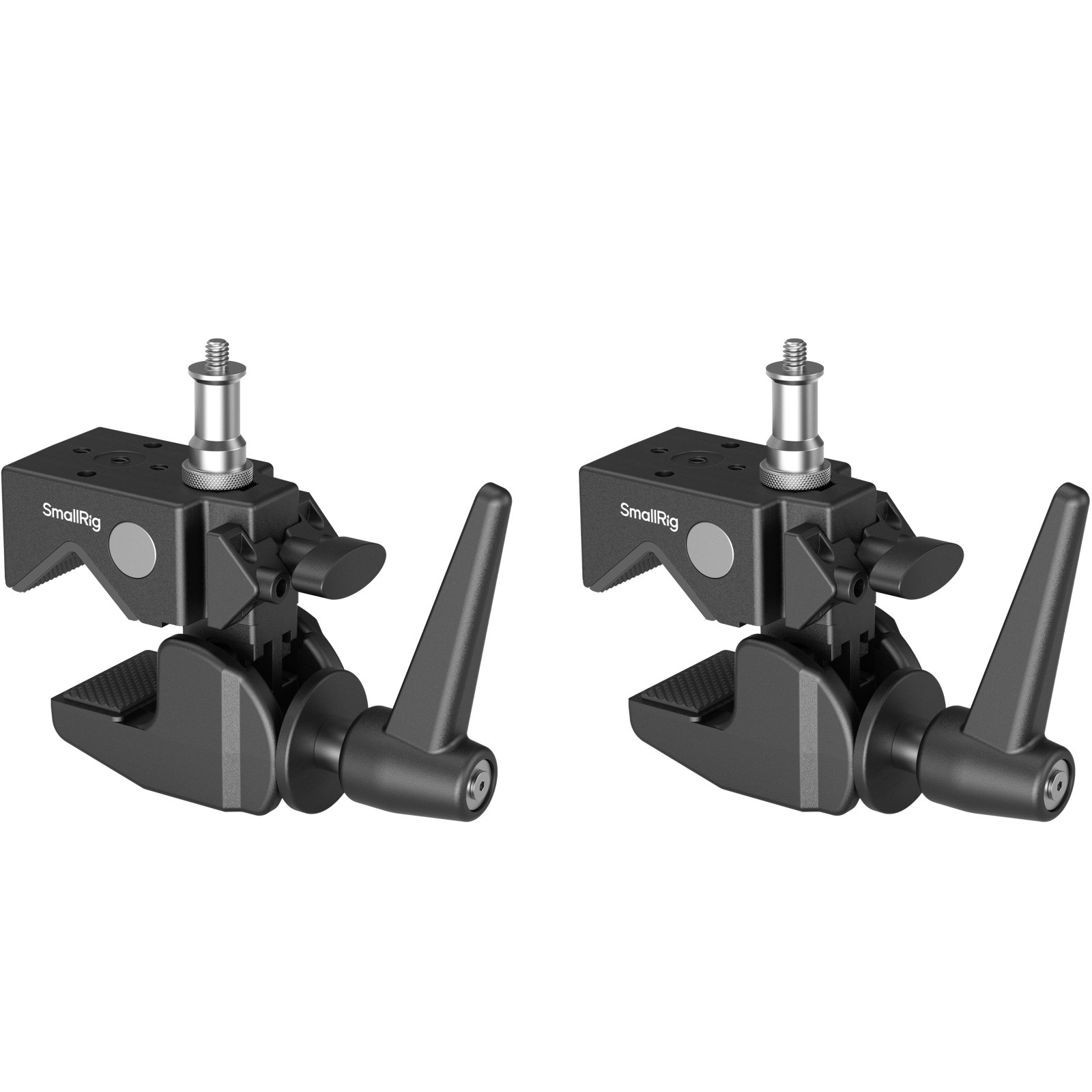

SmallRig Crab-Shaped Clamp Kit 5318
SmallRig Crab-Shaped Clamp Kit 5318 is crafted from durable aluminum alloy, ensuring robustness and longevity. Its detachable wedge design enhances grip on flat surfaces and cylindrical objects, providing stable support for your equipment.
Equipped with a 1/4"-20 and 3/8"-16 top screw, as well as 1/4"-20 and M5 threaded holes, it supports a load capacity of 15kg (33.1lb) and allows for accessory expansion with SmallRig magic arms (ID 3873, 4899, 4900 and more).
When using without the wedge block, it can securely grip round tubes with diameters ranging from 10mm to 55mm (0.4in to 2.2in). With the wedge block, it can clamp flat surfaces up to 30mm (1.2in) thick. Its high adaptability allows for quick attachment of cameras, microphones, monitors, video lights, and other equipment to round tubes, tables, tripod legs, and stabilizer handheld rings.
The clamp jaws feature built-in pads to protect clamped objects and enhance grip stability.
Work With
1. When clamping cylindrical objects, remove the detachable wedge block; suitable for cylindrical objects with diameters ranging from 10mm to 55mm (0.4in to 2.2in).
2. When clamping flat surfaces, install the wedge block; the maximum clamping thickness is 30mm (1.2in).
3. Not recommended for flat surfaces exceeding 30mm (1.2in) in thickness.
(For accuracy, please refer to the actual data)

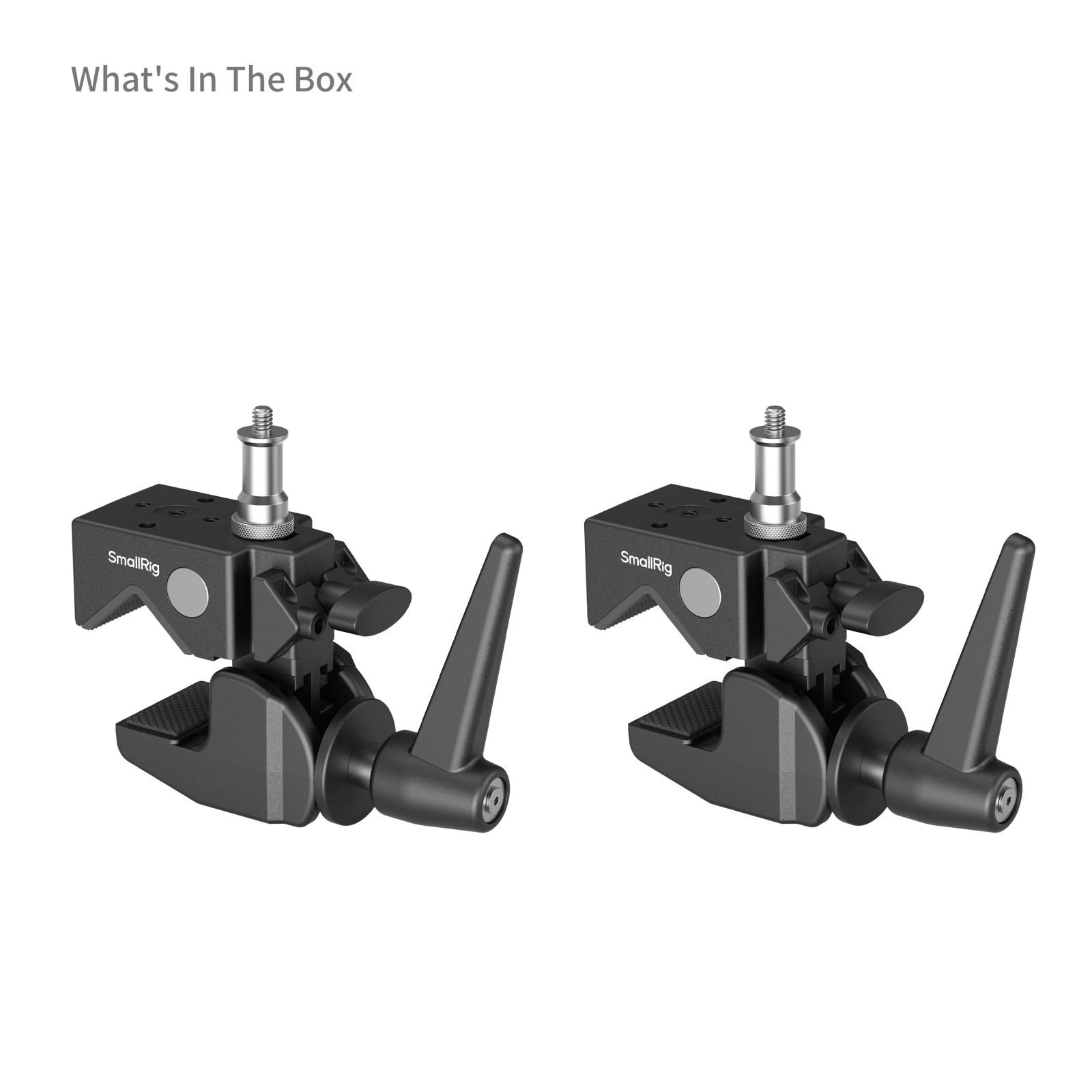

Packing List
Super Clamp x 2
1/4"-20 to 3/8"-16 Threaded Adapter x 2
Technical Data
Product Dimensions: 200.0 x 146.0 x 44.0mm / 7.8 x 5.7 x 1.7in
Package Dimensions: 278.0 x 175.0 x 67.0mm / 10.9 x 6.9 x 2.6in
Product Weight: 1120.0 ± 5.0g / 39.5 ± 0.2oz
Package Weight: 1327.0 ± 5.0g / 46.8 ± 0.2oz
Material(s): Aluminum Alloy
