SmallRig Closed Top Handle for FS7/FS7II/FS5/Ursa Mini 1979

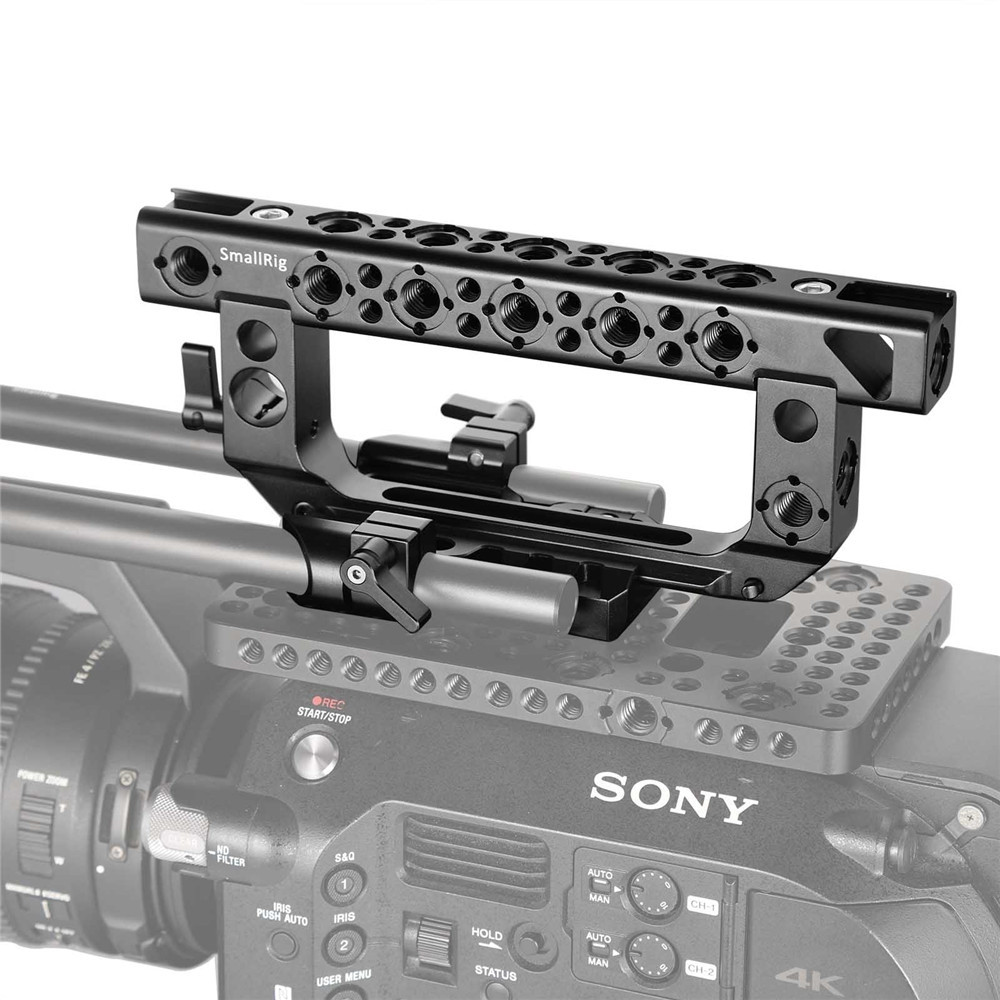

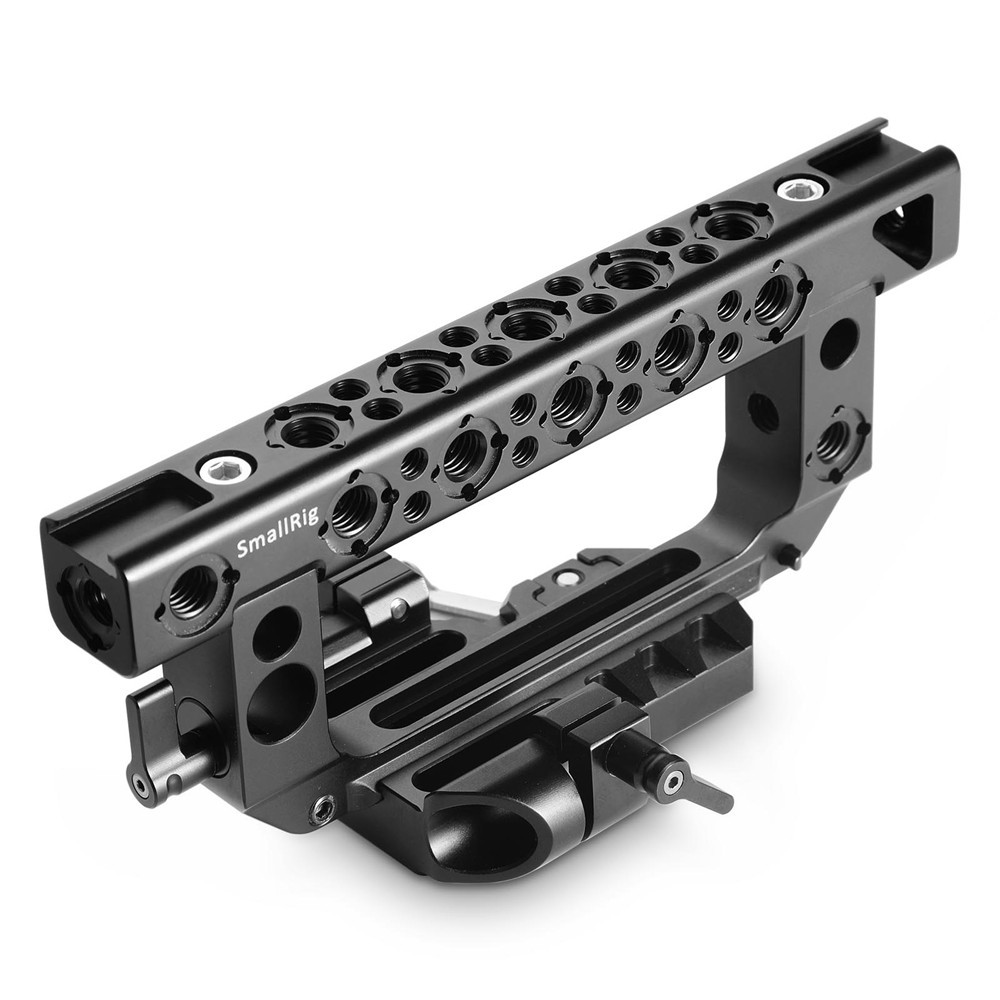

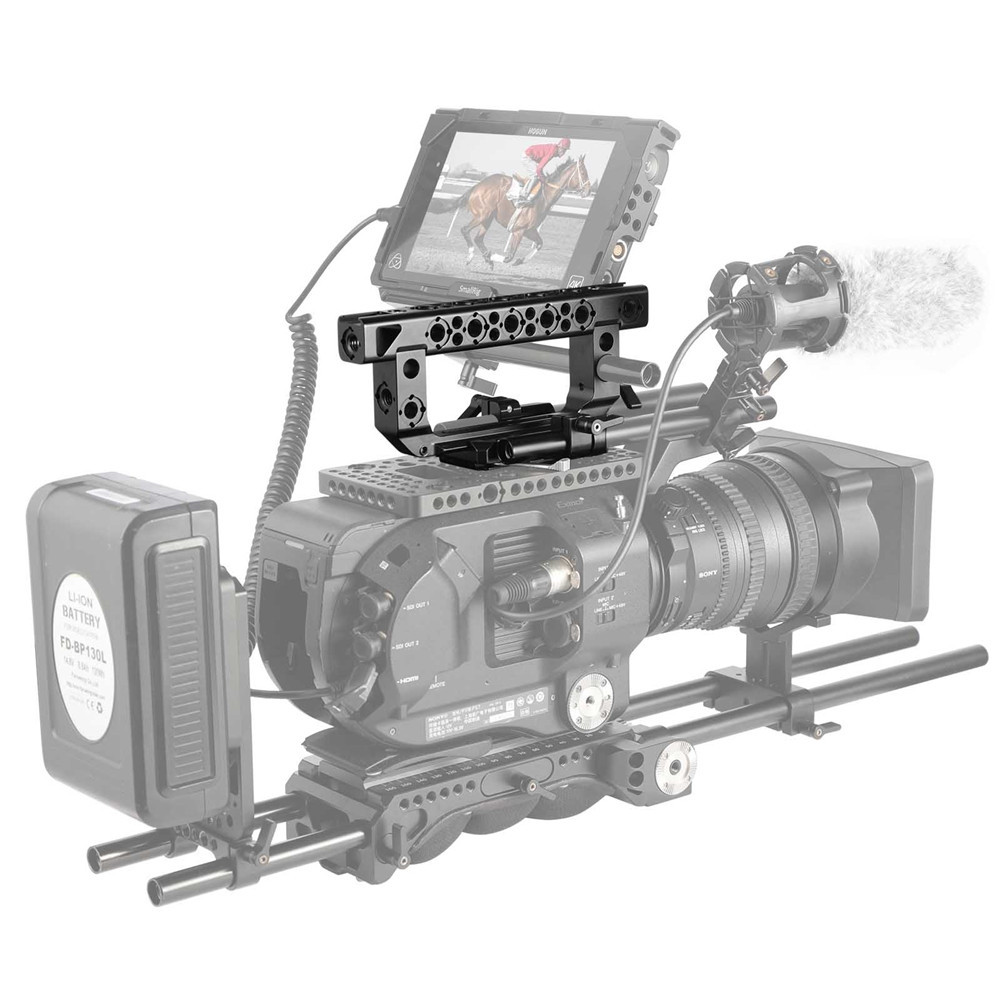

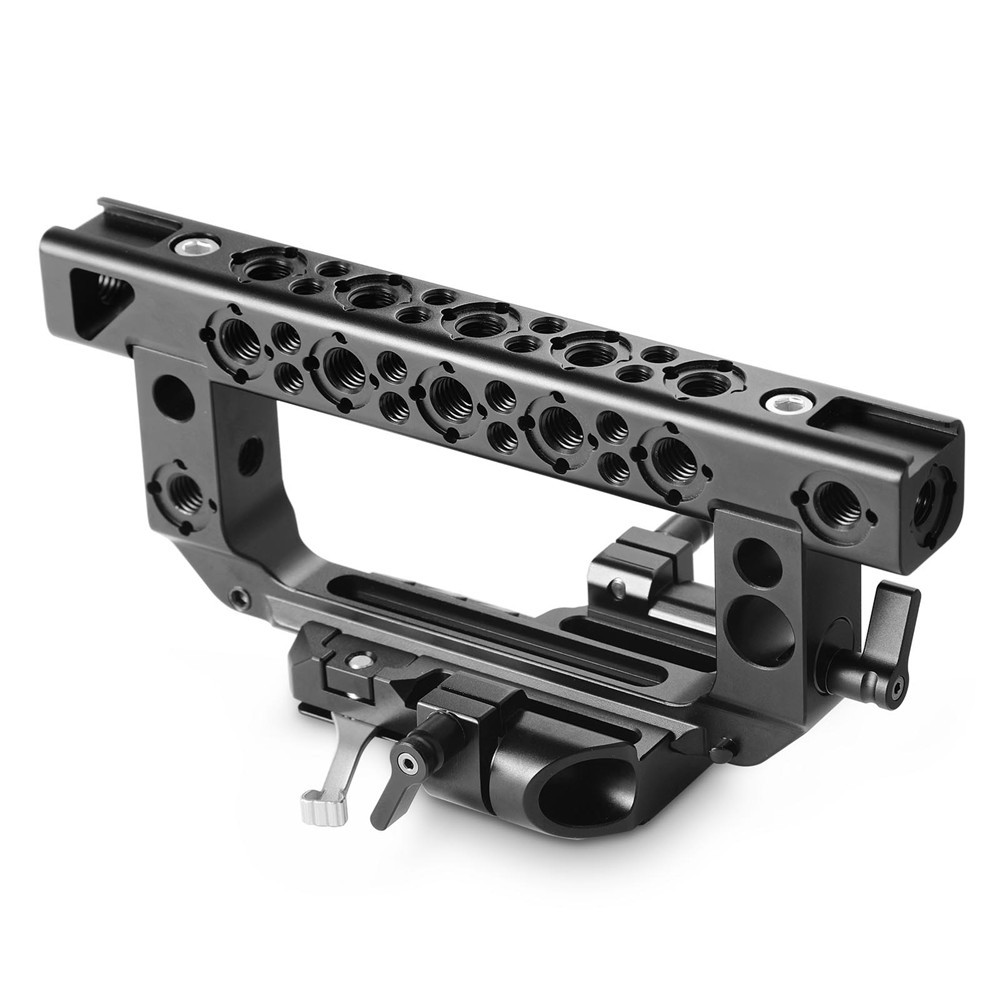

The rod clamps at the bottom of closed top handle could attach 15mm rods for monitor or wireless follow focus in one end and external battery or Wireless Transmitter Cage 1994 in the other end. 15mm rod clamp above could attach 15mm rod clamp for original microphone support of FS7 or Microphone Shock Mount 1802. It is equipped with an abundance of Arri locating holes for accessories with Arri locating pins, such as Magic Arm 2026 for monitor. It comes with NATO rail at the bottom to attach NATO clamp, thus the top handle could be detached and locked quickly as per your needs during shooting. The cold shoes on the handle could attach microphone or Magic Arm 1497 for monitor. It features its compatibility with the top plates of large video cameras, such as Top Plate 1852/1853/1974, Center Plate 1641 and Cheese Plate 1681 etc.
Key Features
1. Rod clamps at the bottom of closed top handle could attach 15mm rods.
2. 15mm rod could attach 15mm rod clamp for original microphone support of FS7 or Microphone Shock Mount 1802.
3. It comes with NATO rail at the bottom to attach NATO clamp, thus the top handle could be detached and locked quickly.
4. Integrated cold shoes on the handle could attach microphone or Magic Arm 1497 for monitor.
5. It features its compatibility with the top plates of large video cameras, such as Top Plate 1852/1853/1974, Center Plate 1641 and Cheese Plate 1681 etc.
Work With
FS7/FS7II/FS5/Ursa Mini
Packing List
1 x Closed Top Handle 1979
2 x Hex Spanner
2 x 1/4" Screw
Technical Data
Product Dimensions: 200x109x88.5mm
Net Weight: 450g
Package Size: 210x145x55 mm
Material(s): Aluminum Alloy
