SmallRig Carbon Fiber Tripod Kit FT-S303 4643

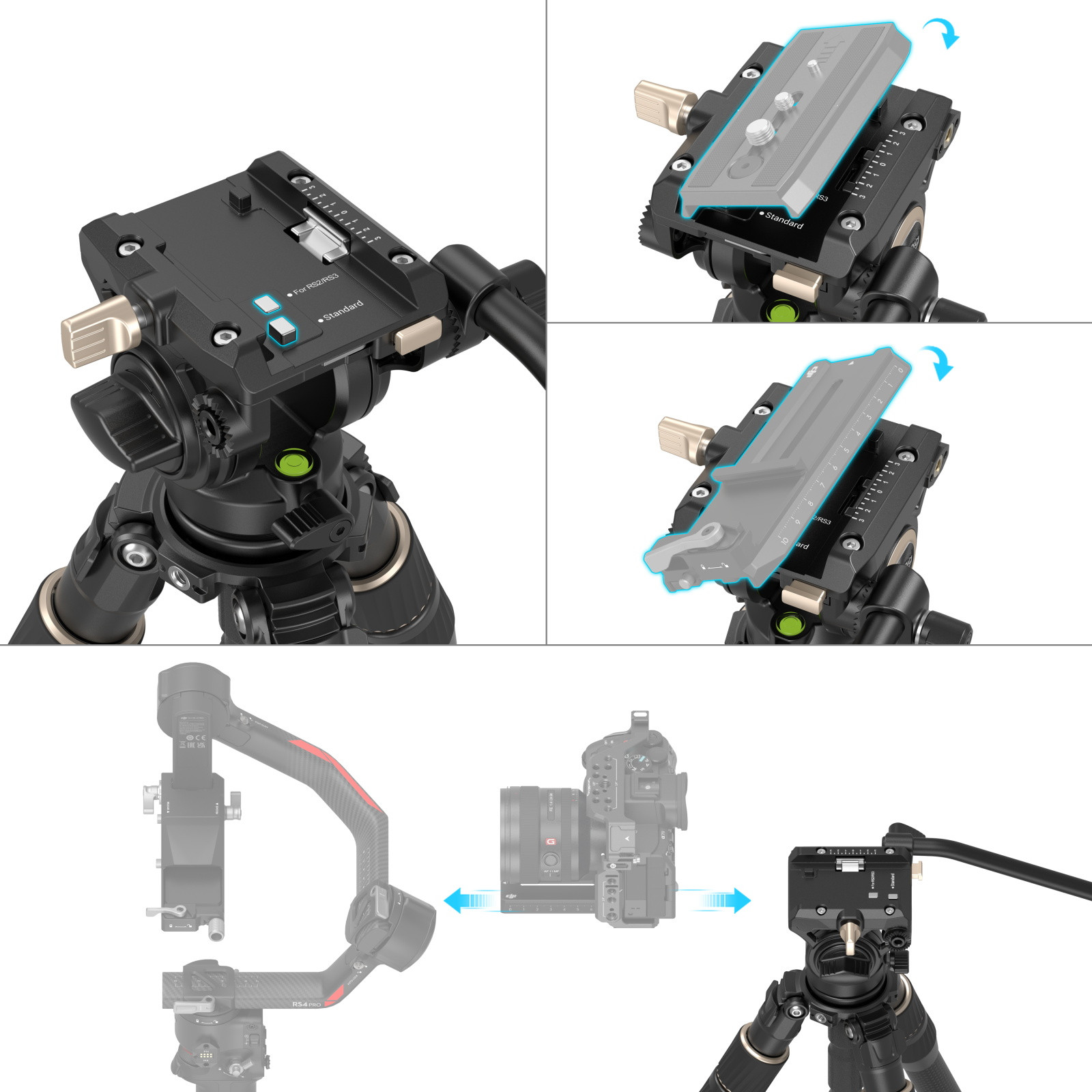

SmallRig Carbon Fiber Tripod Kit FT-S303 4643 is a carbon fiber tripod designed for professional outdoor videography. The legs feature a FreeSpeed-Twist quick-tightening design, allowing for easy and efficient setup by tightening double knobs to lock all three sections. Operating Altitude ranges from 27cm (10.6in) to 150cm (59.0in), and a compact storage length of 74cm (29.1in). The use of a 30mm diameter for the legs ensures a lightweight design without compromising stability and load-bearing capacity. This tripod, featuring a built-in bubble level, works with a 65mm bowl base for leveling and easy management of frame level. The kit includes a compact fluid head, featuring a damping system, that allows you to pan the camera smoothly. When its center of gravity height is put at 50mm, the panning, and pre-set fixed counterbalance system can help precisely control the camera or other rigs weighing up to 4kg for great counterbalance. The video head can carry as much as 6kg (13.2lb). It has a newly designed snap-on quick-release plate mount, a more efficient mounting solution than traditional slide-on ones, which is DJI RS series quick-release plate and 501PL quick-release plate compatible to realize a free switch between stabilizer shooting and tripod shooting. The kit also features 1/4"-20 and 3/8"-16 threaded holes for attaching accessories like magic arms, along with a built-in flat head screw for convenient camera installation and removal. It weighs only 2.9kg (6.4 lbs).
Note:
1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.
3. Max payload of head: 6kg / 13.2lb (leg angle at 23°, height at 150cm / 59.0in).
4. The weight capacity of the tripod head is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the center of gravity.
5. Max payload of tripod: 15kg / 33lbs ( Tripod head detached, leg angle at 23°, height at 140cm / 55.1in).
Work With
501PL Quick Release Plate
DJI RS Series Quick Release Plate
Packing List
Tripod Kit x 1
Allen Wrench x 1
Storage Bag x 1
Smartphone Holder x 1
Guarantee Card x 1
Technical Data
Product Dimensions: 740.0 x 120.0 x 120.0 mm / 29.2 x 4.73 x 4.73in
Package Dimensions: 820.0 x 160.0 x 160.0 mm / 32.3 x 6.3 x 6.3in
Product Weight: 2.9 ± 0.1kg / 6.4 ± 0.2lbs
Package Weight: 3.9 ± 0.1kg / 8.6 ± 0.2lbs

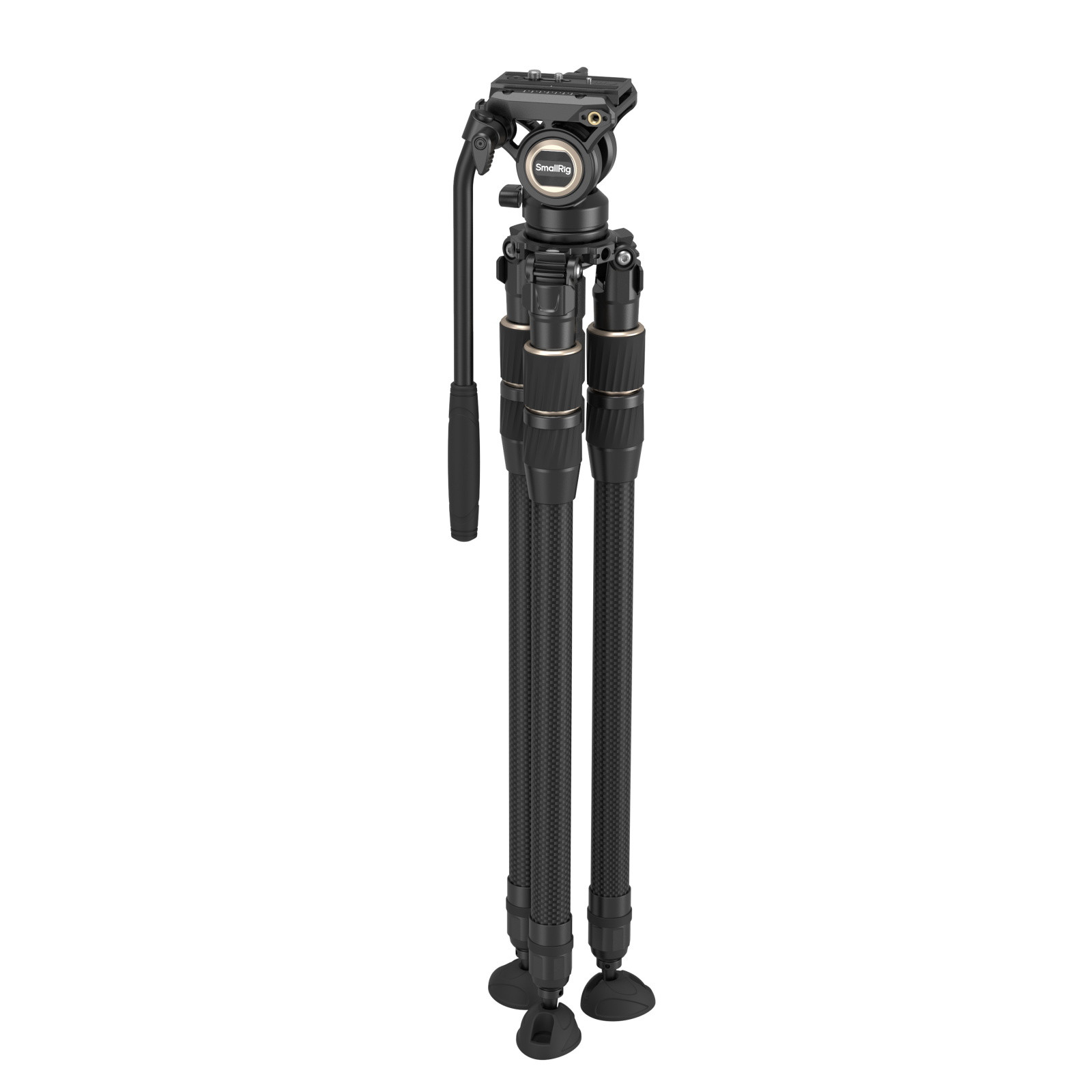

Closed Length: 74cm / 29.1in

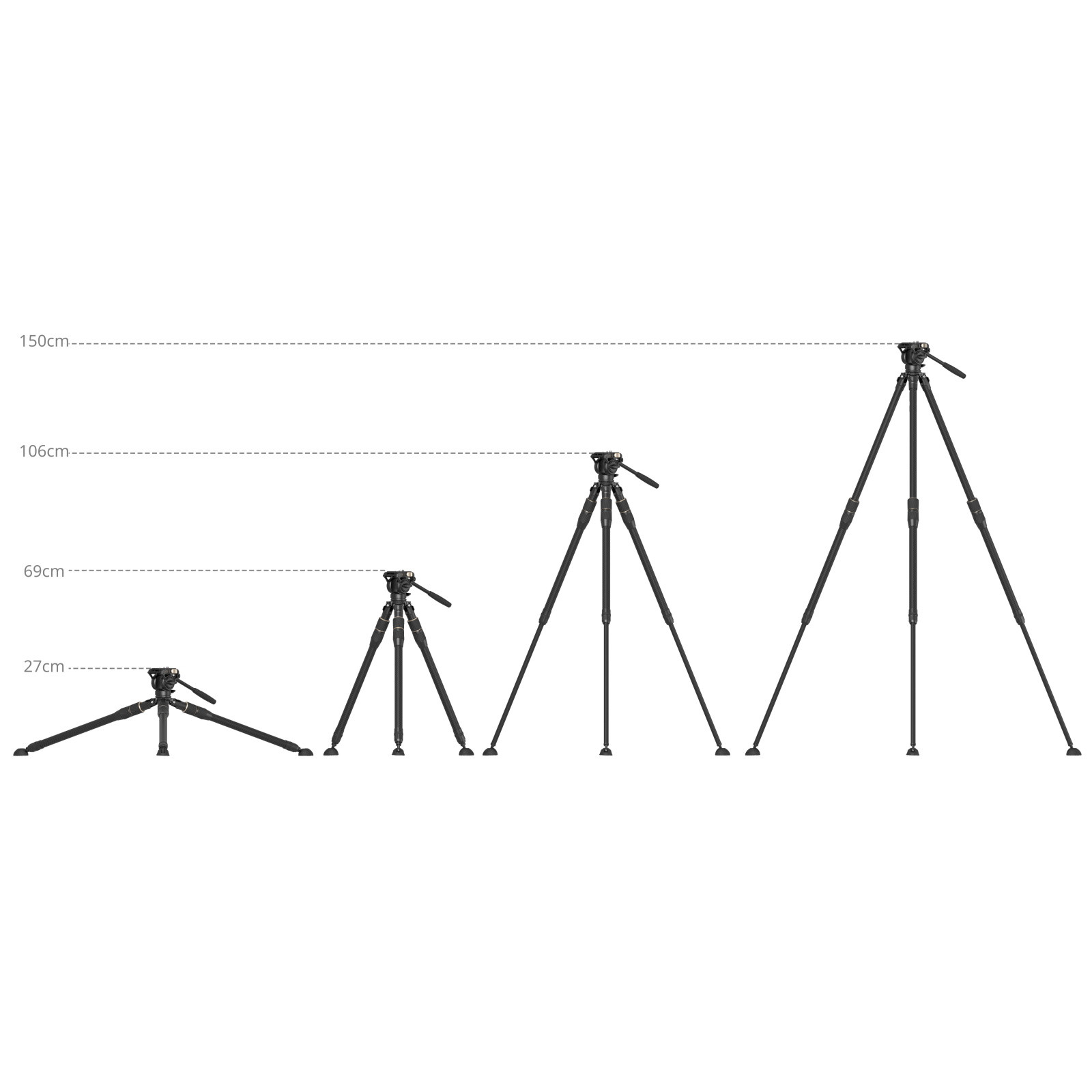

Height Range: 27~150cm / 10.6~59.0in
Leg Sections: 3

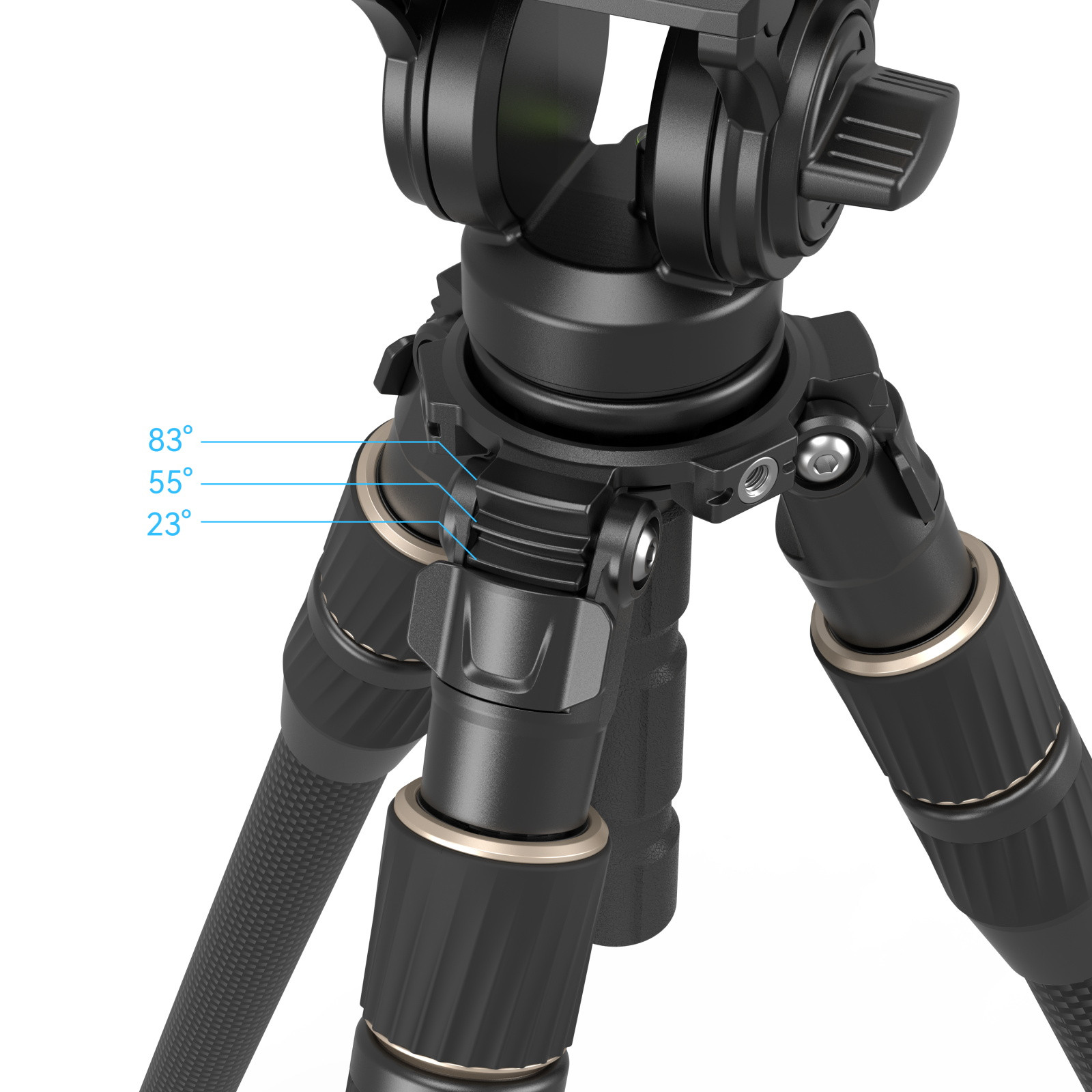

Leg Angles: 23°/ 55°/ 83°
Legs Diameter: 30mm - 28mm - 18.5mm / 1.18in - 1.1in - 0.73in
Fluid Head Base Diameter: 65.0mm / 2.55in

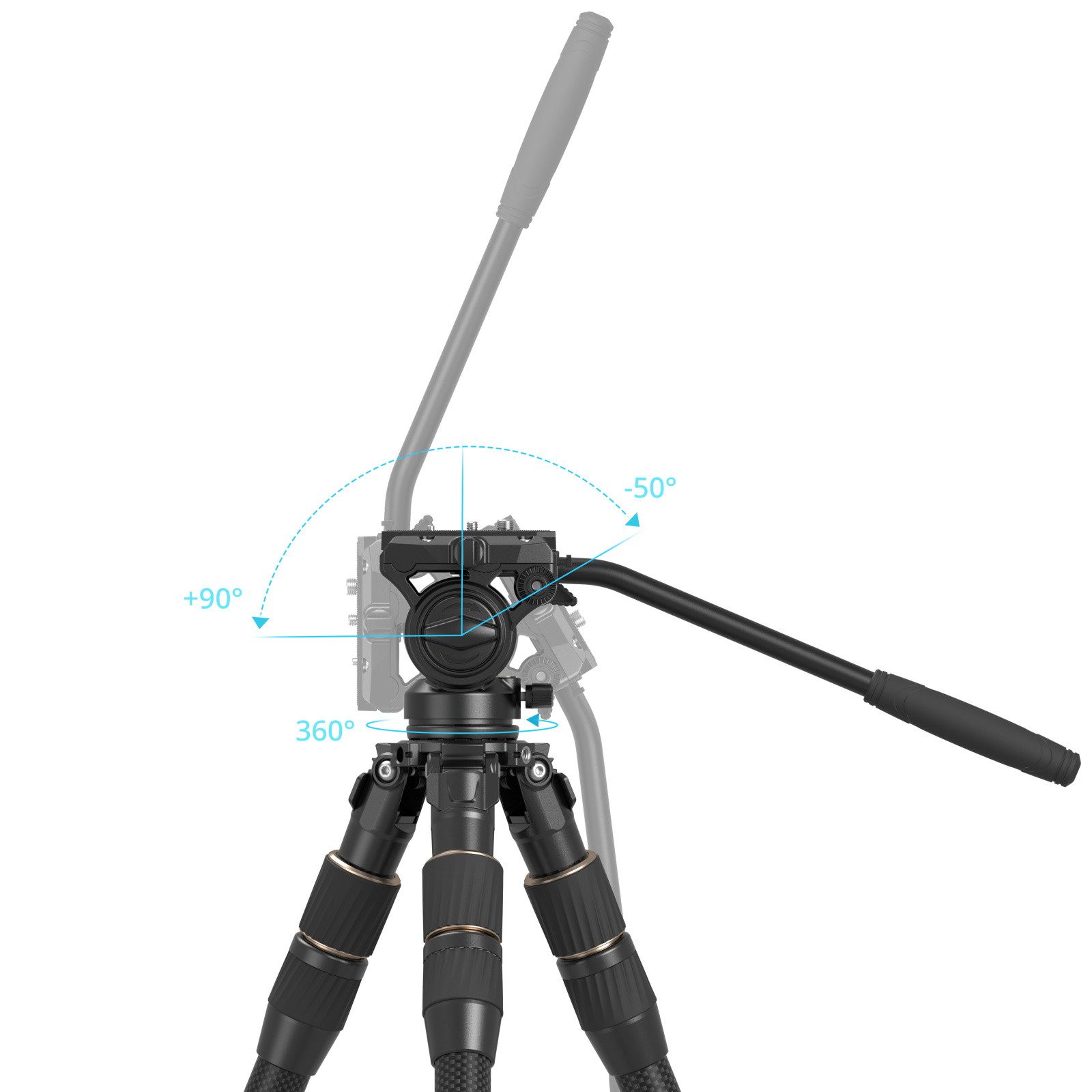

Tilt Range: +90°/-50°
Head Payload: 6kg / 13.2lb
Counterbalance Payload: 4.0kg / 8.8lb
Counterbalance Step: Fixed
Tilt Control: Fixed
Pan Control: Fixed
Material(s): Carbon Fiber, Aluminum Alloy, POM, Stainless Steel, Silicone
