SmallRig Cage Kit for BMPCC 1991

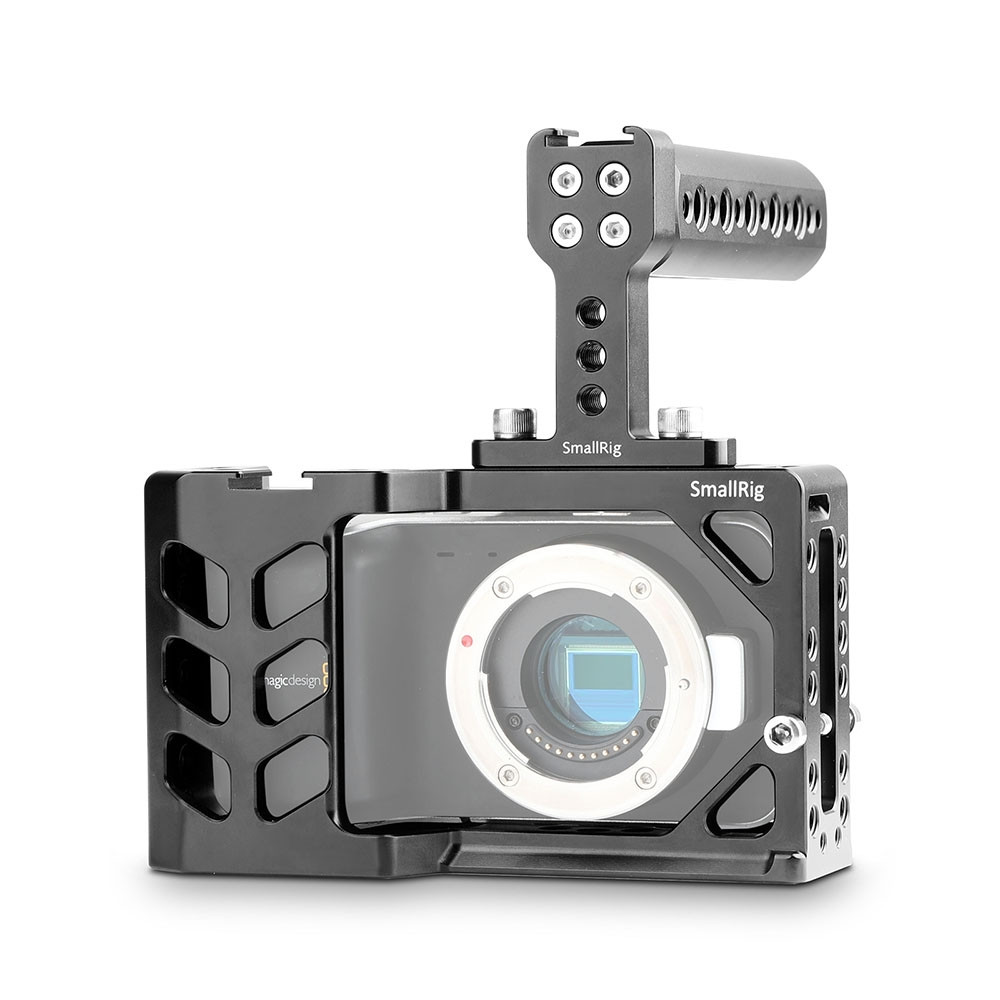

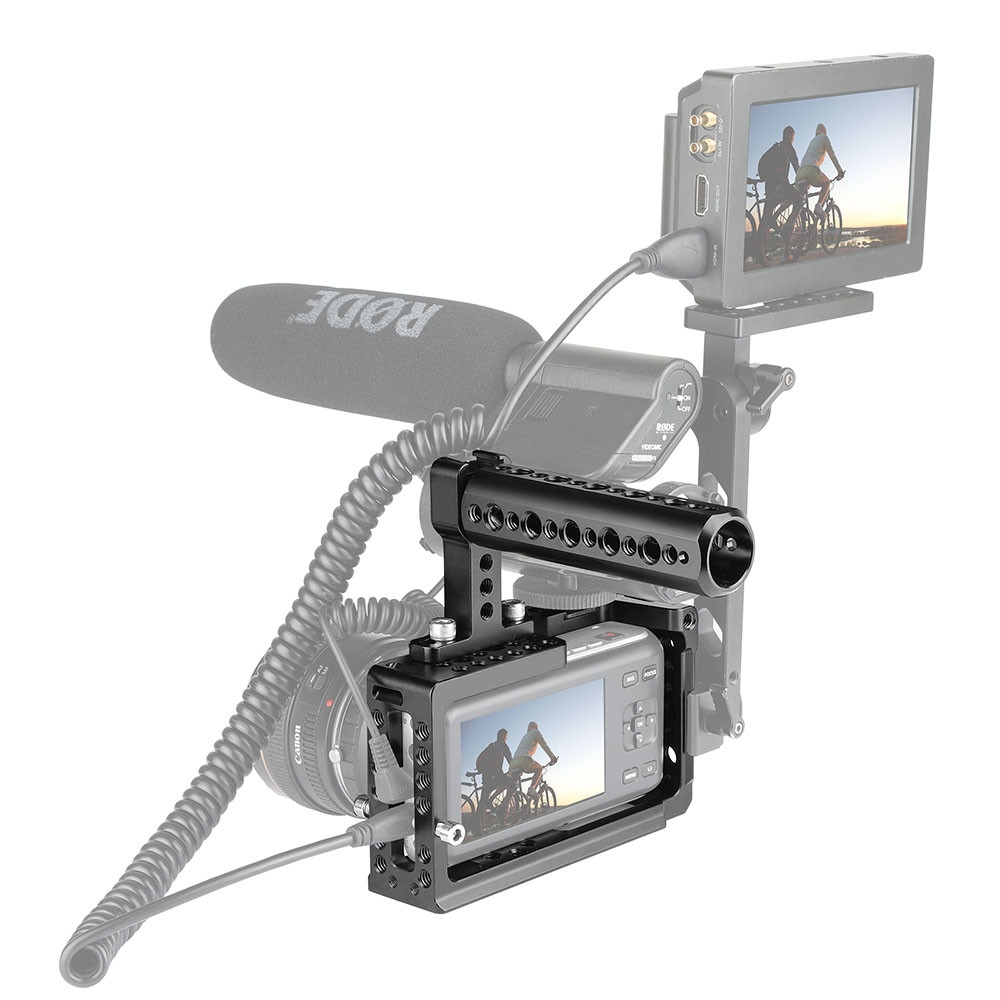

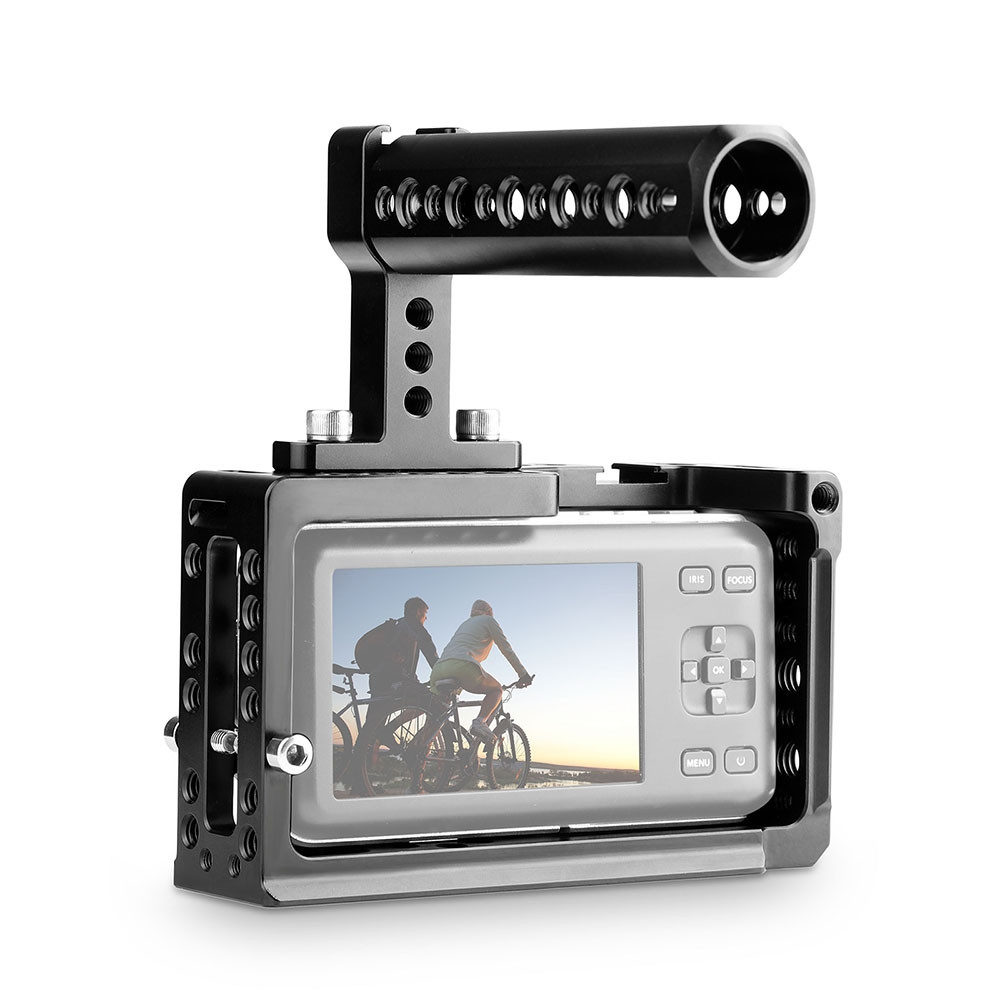

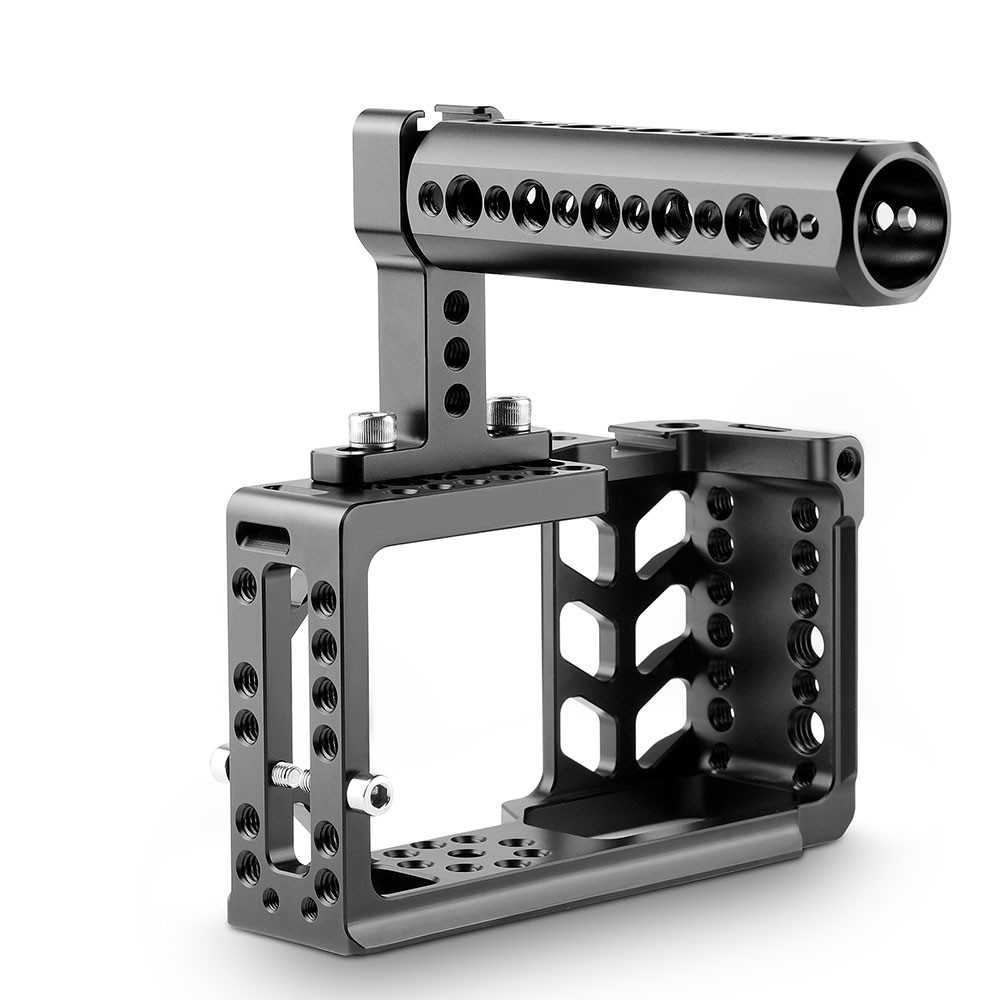

SmallRig Cage Kit 1991 is e*clusively designed for BMPCC cameras. It is equipped with Top Handle with Cold Shoe (Cheese) 1638 for handheld shooting. The cold shoe could attach microphone; attach Articulating Rosette Arm(7") 1497 and then monitor; attach Hot Shoe with 1/4" Male Screw and Cold Shoe Base with 1/4" Female Hole 1639. The hollow part of cage does not interfere with the easy access to battery slot. The NATO rail on the left side is accessible to QR Cheese Handle 1688 or EVF support. 1/4"-20 threaded holes could attach Manfrotto quick release plates. The cage is thickened, so that it could enlarge the grip part and thus offer you a better holding e*perience. M5 threaded holes could attach HDMI Cable Clamp 1521. Arca quick release plate at the bottom of cage could attach 15mm Rail Support System Baseplate(Arca Swiss) 1687 and Arca swiss dovetail Clamp 1711. Two M5 screws are used to secure and protect HDMI cable. 2 holes on the right side are designed for shoulder straps and the whole set does not block any buttons and ports of the camera.
Key Features
1.Top handle included for handheld shooting
2.Cold shoe for more accessories
3.NATO rail could attach QR cheese handle and EVF support
4.Arca quick release plate could attach rail support system baseplate and Arca swiss dovetail Clamp
5. HDMI cable secured via M5 screws
Work With
BMPCC

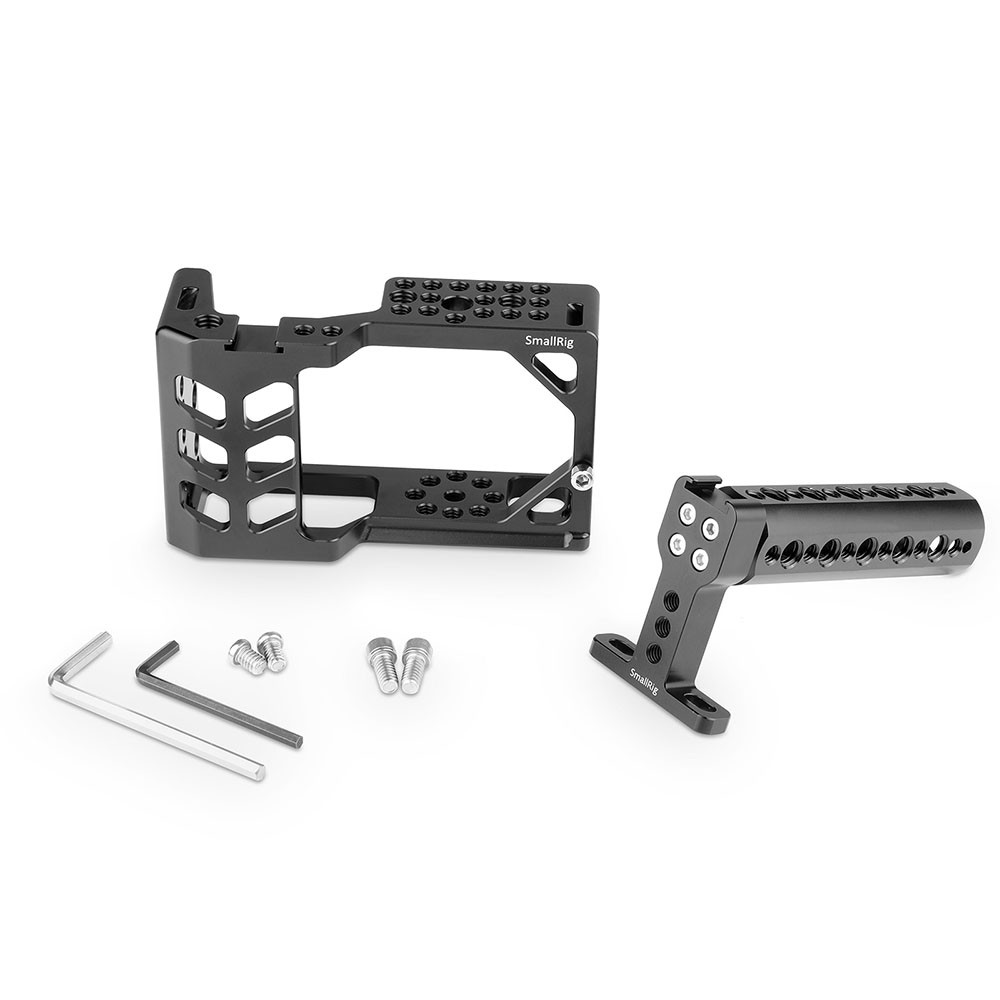

Packing List
1 x BMPCC Cage 2012
1 x Top Handle 1638
4 x 1/4" Screw
2 x Hex Spanner
Technical Data
Product Dimensions: 143.2 x 154 x 52mm
Net Weight: 450g
Package Dimensions: 215 x 115 x 60mm
Material(s): Aluminum Alloy
