SmallRig Cage Kit and Sunhood for Atomos Shogun 7 CMA2409

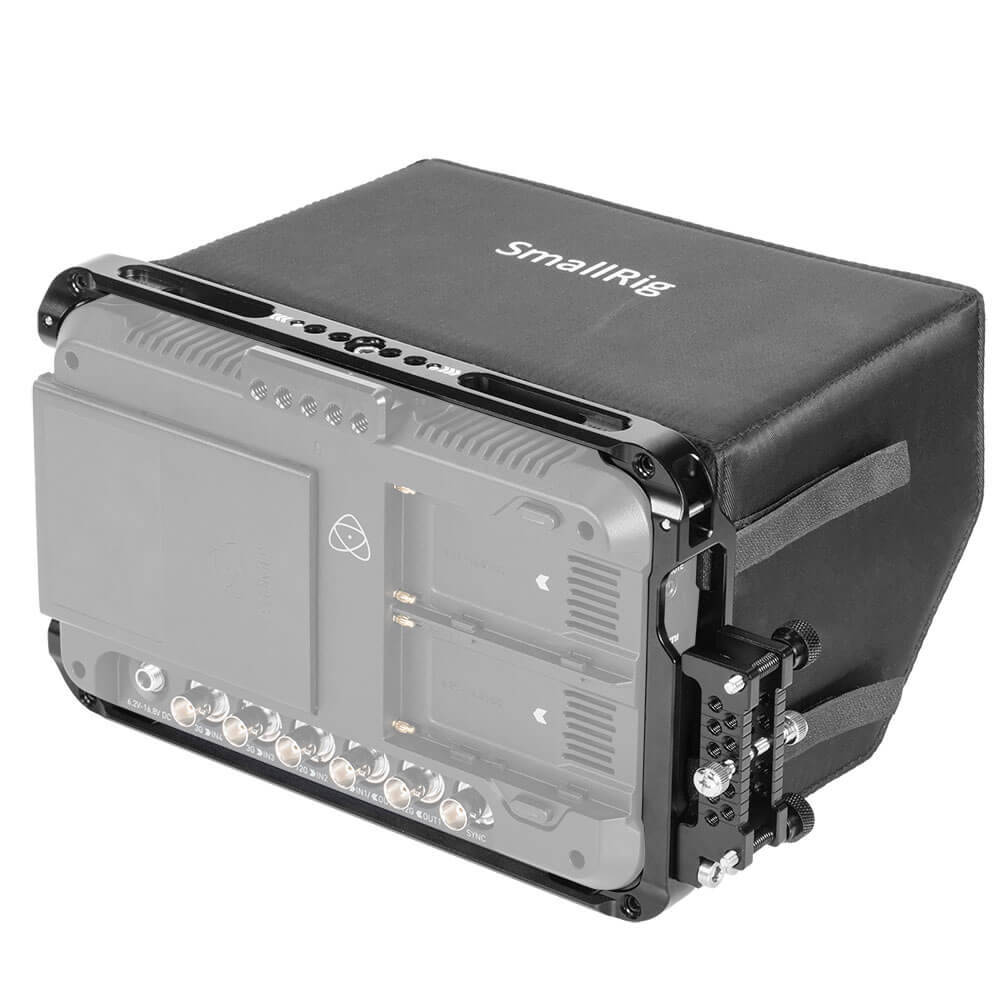

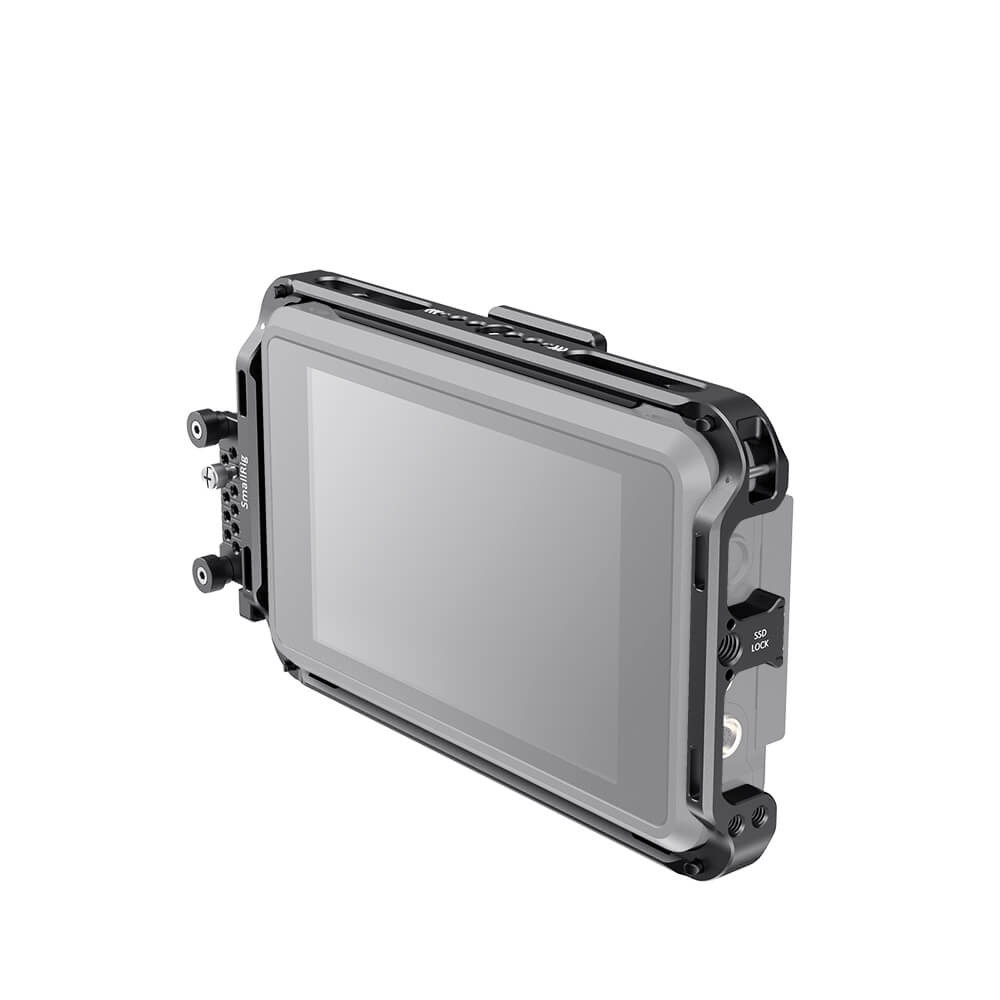

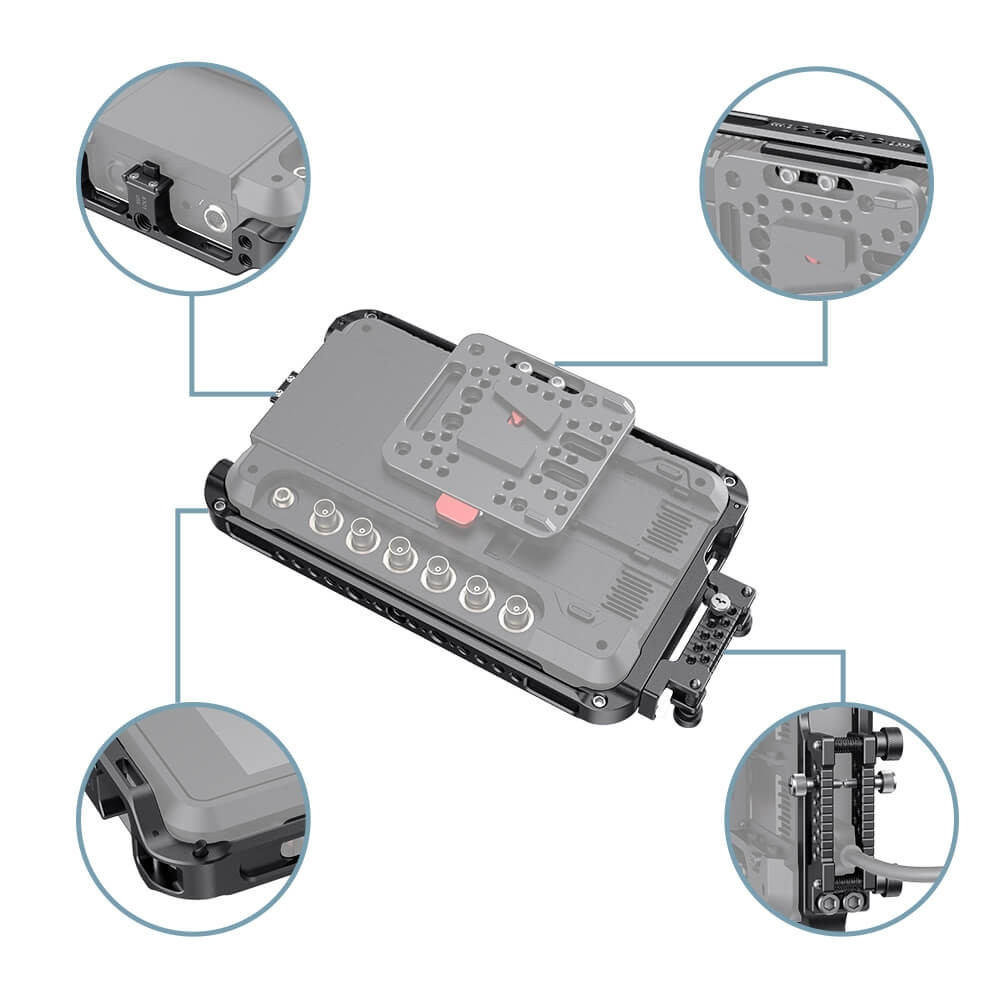

SmallRig Cage Kit and Sunhood for Atomos Shogun 7 CMA2409 provides an additional protective exo-skeleton for the monitor. The cage mounts to the monitor by two 1/4’’-20 screws on the top and bottom. Across the cage features multiple 1/4’’-20, 3/8’’-16 holes, and ARRI locating holes allowing mount of accessories, such as SmallRig V-mount Battery Plate 1846 and SmallRig Mounting Bracket for Teradek 2107. NATO rails are also provided along both top and bottom to allow use with a range of SmallRig mounts such as SmallRig Ball Head Magic Arm 2071 or the 2072 for quick release. The cage includes a cable clamp that works with a range of HDMI cables. It is attached on the left to protect the HDMI cables and ports. The cage also features a drive lock that prevents the SSD on the back from accidentally falling off. In addition, it comes with a sun hood which helps provide great viewing experience in harsh lights, and attachment points for use with neck straps.
Key Features
1. A form-fitting cage designed for Atomos Shogun 7
2. NATO rails on the top and bottom
3. Multiple 1/4’’-20, 3/8’’-16 and ARRI locating hole
4. HDMI cable clamp included

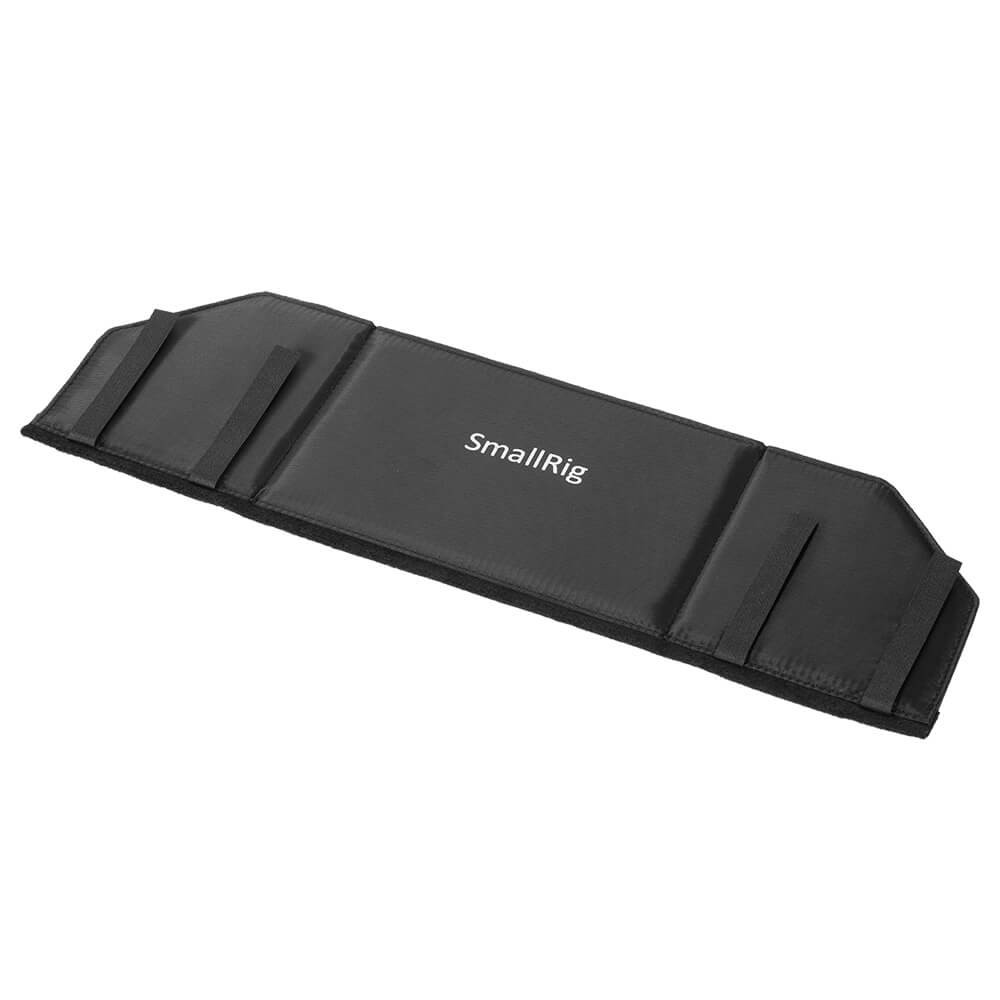

5. Sunhood included
Work With
Atomos Shogun 7

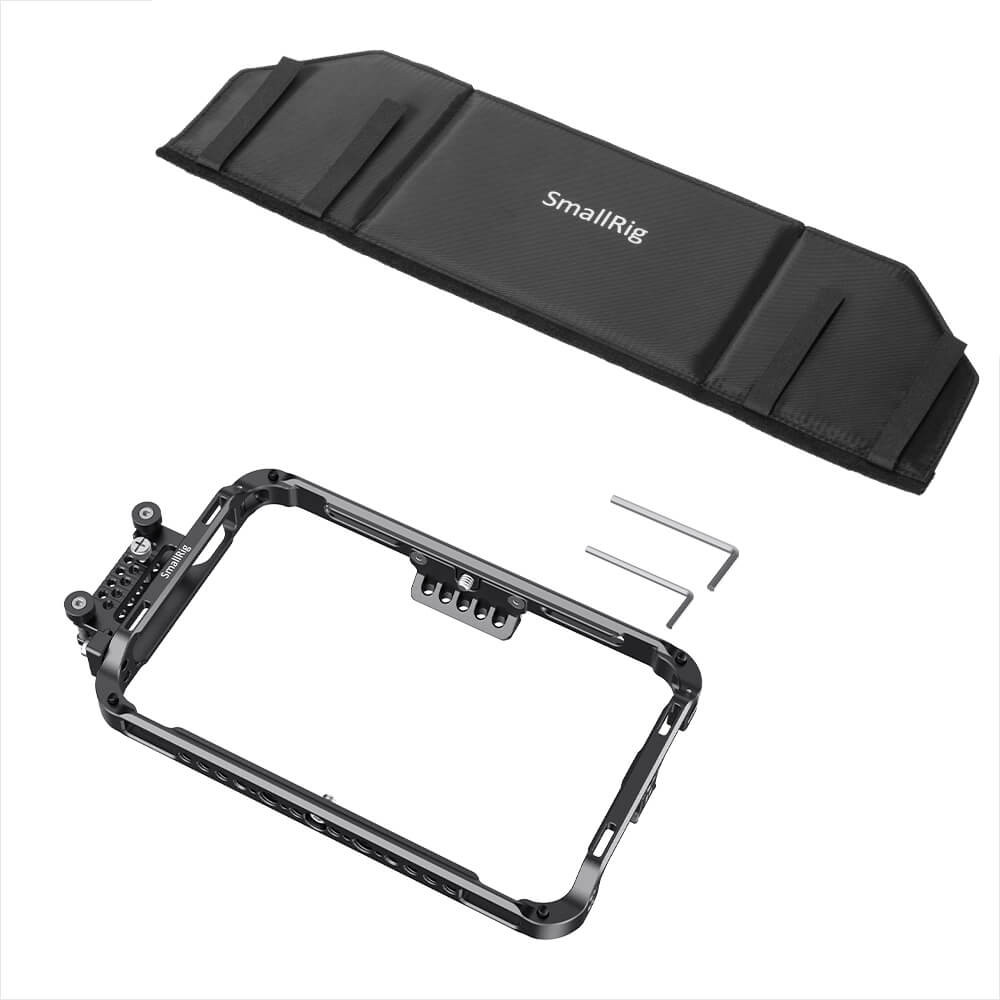

Packing List
1 x cage
1 x HDMI Cable Clamp
1 x Sunhood
2 x 1/4 Screw
2 x Hex Spanner
Technical Data
Product Dimensions: 258 x 145 x 47mm
Package Dimensions: 270 x 165 x 50mm
Net Weight: 381g
Package Weight: 518g
Material(s): Aluminum Alloy
