SmallRig Cage for Z cam E2 Camera CVZ2264

SmallRig Cage for Z cam E2 Camera CVZ2264

1.Designed for Z CAM E2 Camera

2.Modular Designed to Make Your Setup Lightweight

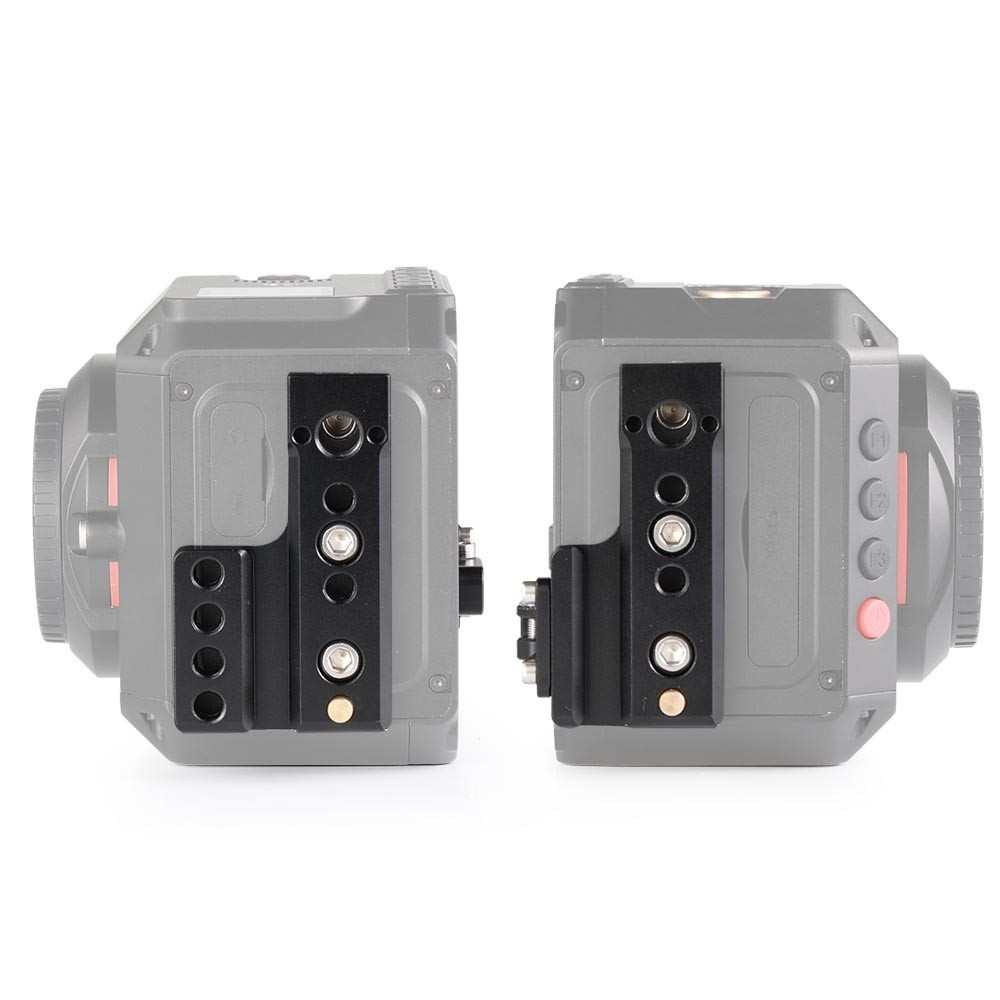

3.Nato Rail on Each Side Plate

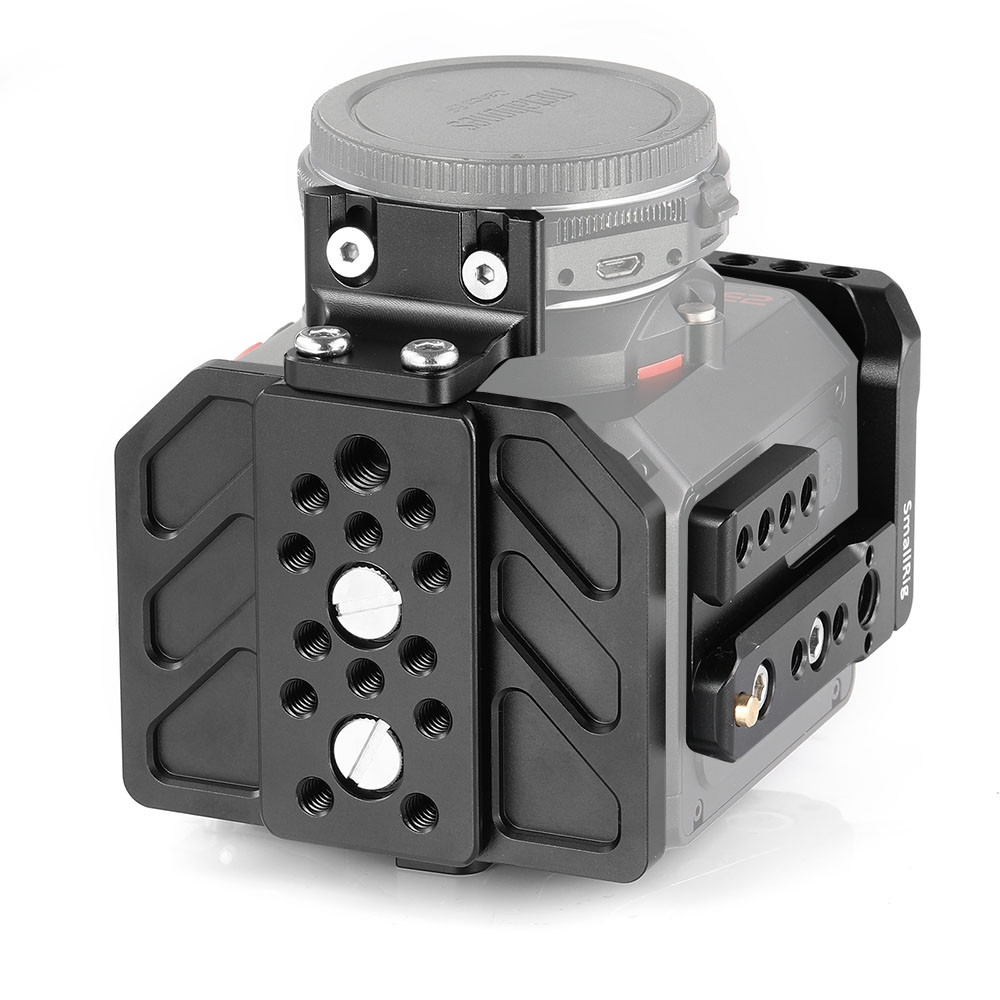

4.Integrated with Arca Swiss Plate on the Bottom

5.Features Multiple 1/4"-20, 3/8"-16 and Arri 3/8"Threaded Holes

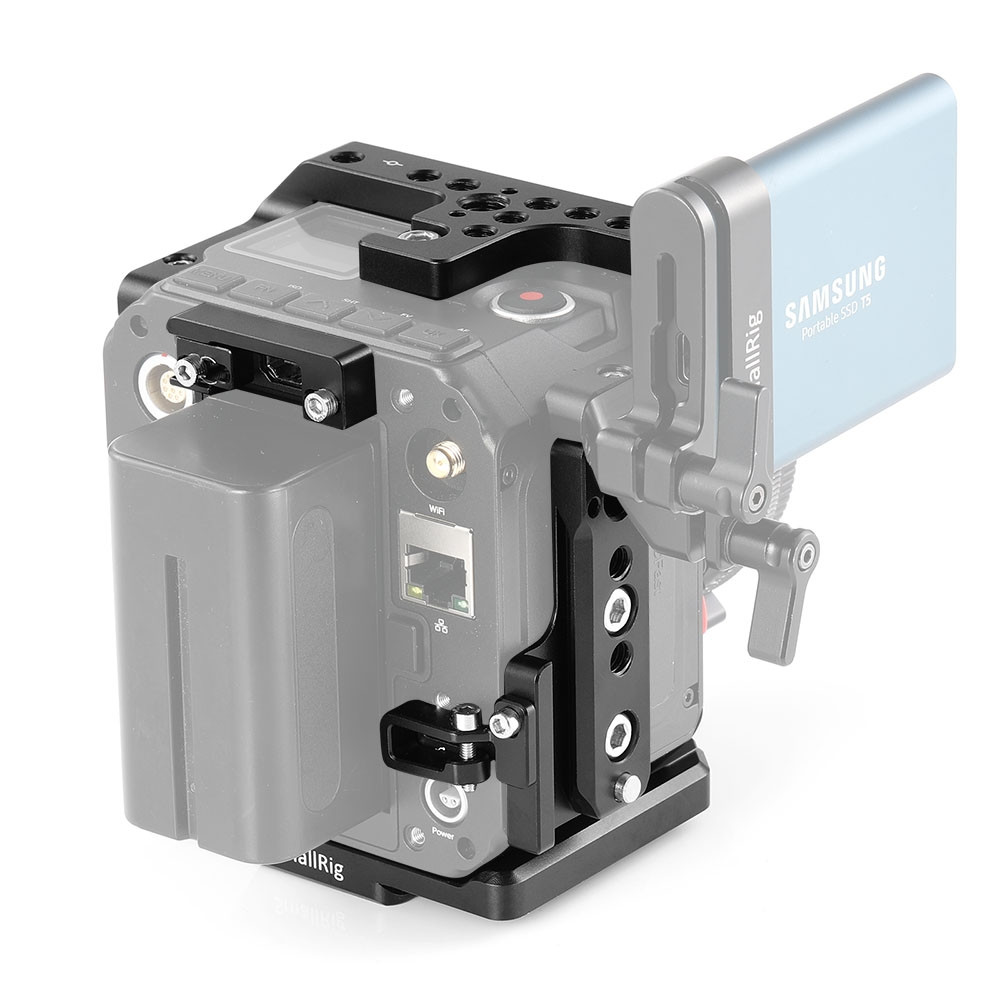

6.Lens Adapter Support, HDMI and USB Cable Clamp are Included Compatible with Smallrig Samsung T5 SSD Mount 2245

$43.14   $71.90
Sku CVZ2264
EAN 6972070624797

Availability: Discontinued Item

This product has been viewed 513 times

Product Description



SmallRig Cage for Z cam E2 Camera 2264

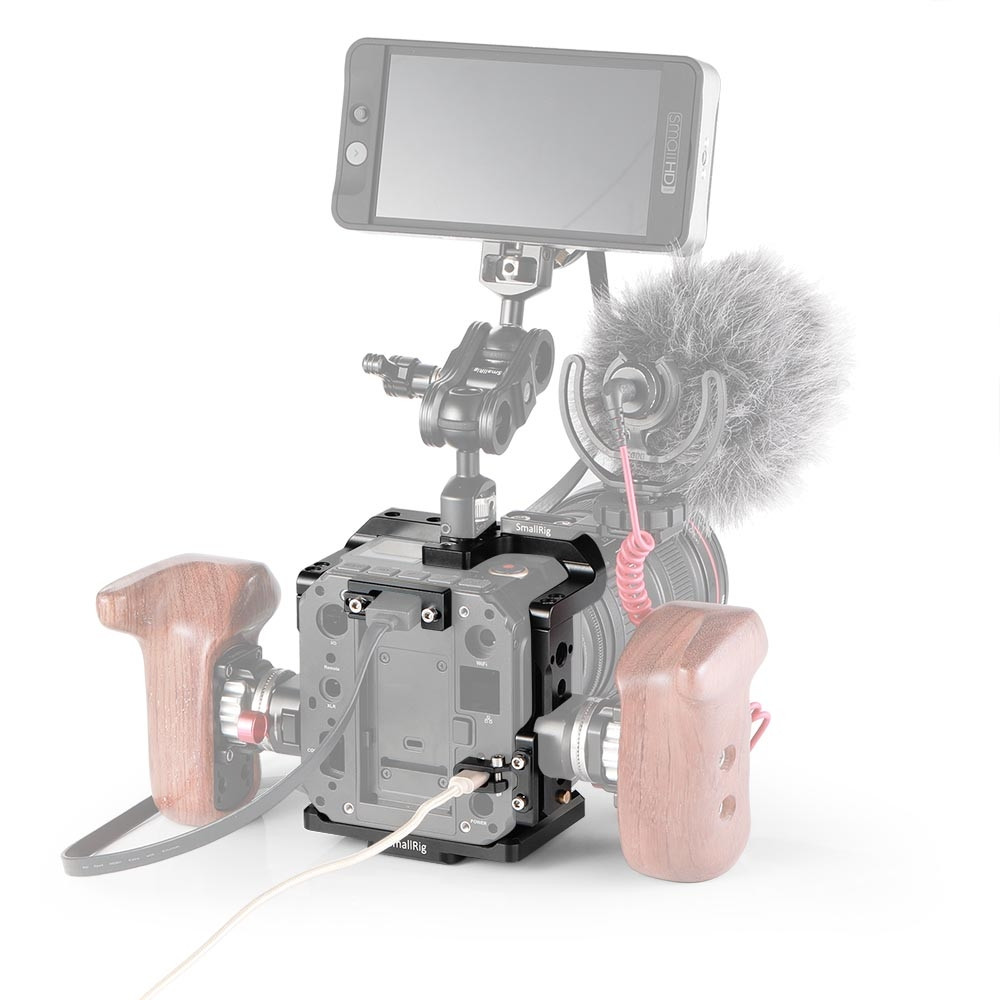

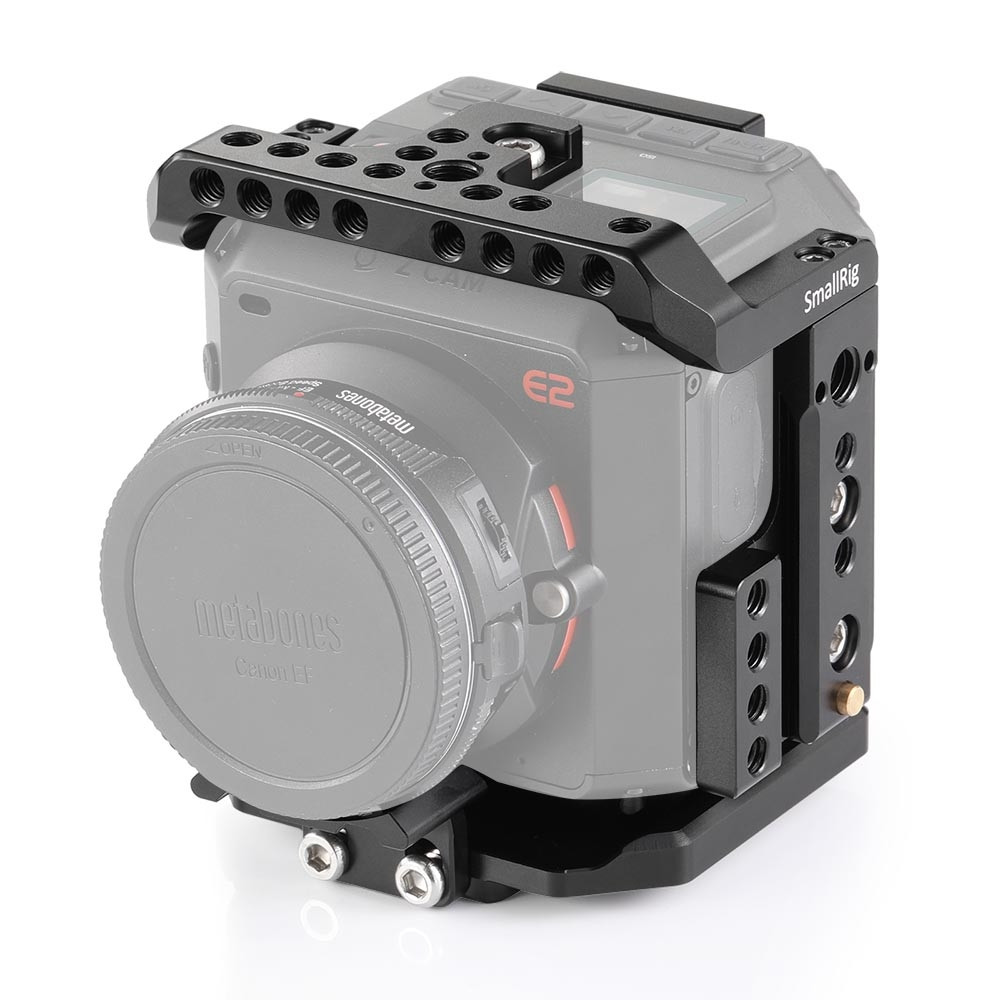

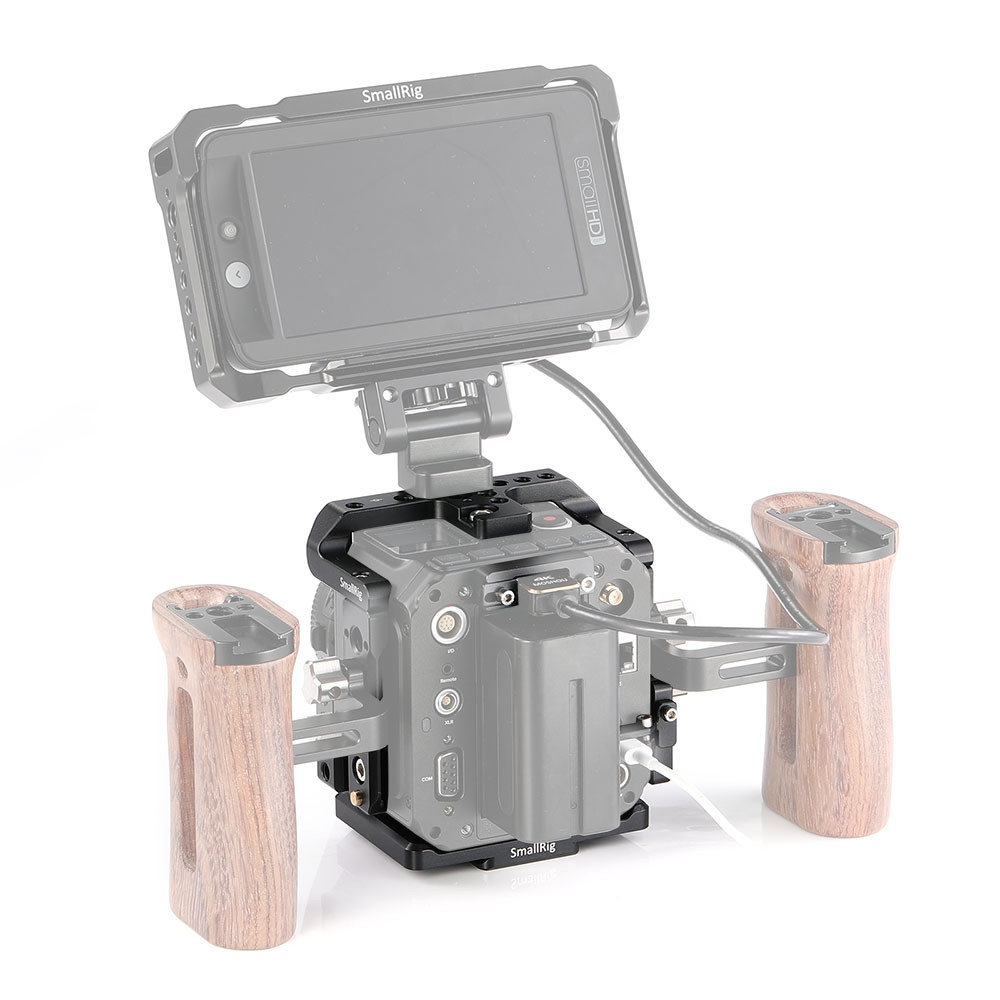

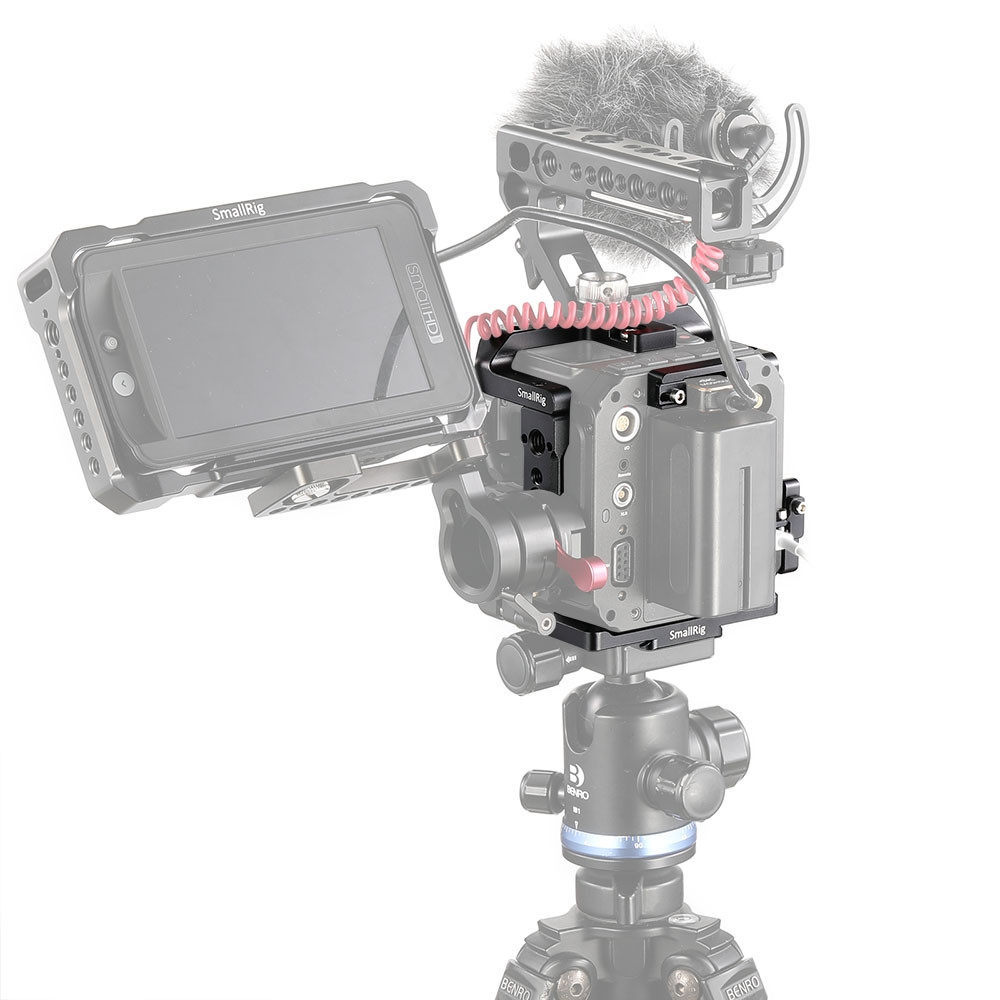

SmallRig Cage for Z cam E2 Camera CVZ2264 is designed to provide protection and mounting options for Z cam E2. The modular designed cage is mainly consists of a top plate, bottom plate, two side plates, HDMI and USB cable clamp as well as a M43 lens adapter support. The purpose of the cage is to make your setup lightweight so that you can use the side plate or bottom plate separately based on your needs. The cage provides multiple 1/4"-20, 3/8"-16 and arri 3/8"threaded holes for accessory attachment such as magic arm, cold shoe and handles. Each side plate comes with a nato rail allows for mounting Magic Arm 2071 for monitor and Nato Handle 2187 to make your setup quick releasable. The bottom plate features rubber cushions on the top to prevent the cage from scratching the camera and integrates with an Arca Swiss plate allows to mount your Z cam E2 camera to the Arca tripod directly in seconds.

Note:The usb cable clamp is compatible with type-c cable under 10x6mm in size.

Key Features

1.Designed for Z CAM E2 Camera

2.Modular Designed to Make Your Setup Lightweight

3.Nato Rail on Each Side Plate

4.Integrated with Arca Swiss Plate on the Bottom

5.Features Multiple 1/4"-20, 3/8"-16 and Arri 3/8"Threaded Holes

6.Lens Adapter Support, HDMI and USB Cable Clamp are Included Compatible with Smallrig Samsung T5 SSD Mount 2245

Work With

Z cam E2 Camera

Metabones Adapter Support Compatible with:

Canon EF Lens to Micro Four Thirds T Smart Adapter (MB_EF-m43-BT2)

Canon EF Lens to Micro Four Thirds T Speed Booster XL 0.64x (MB_SPEF-M43-BT3)

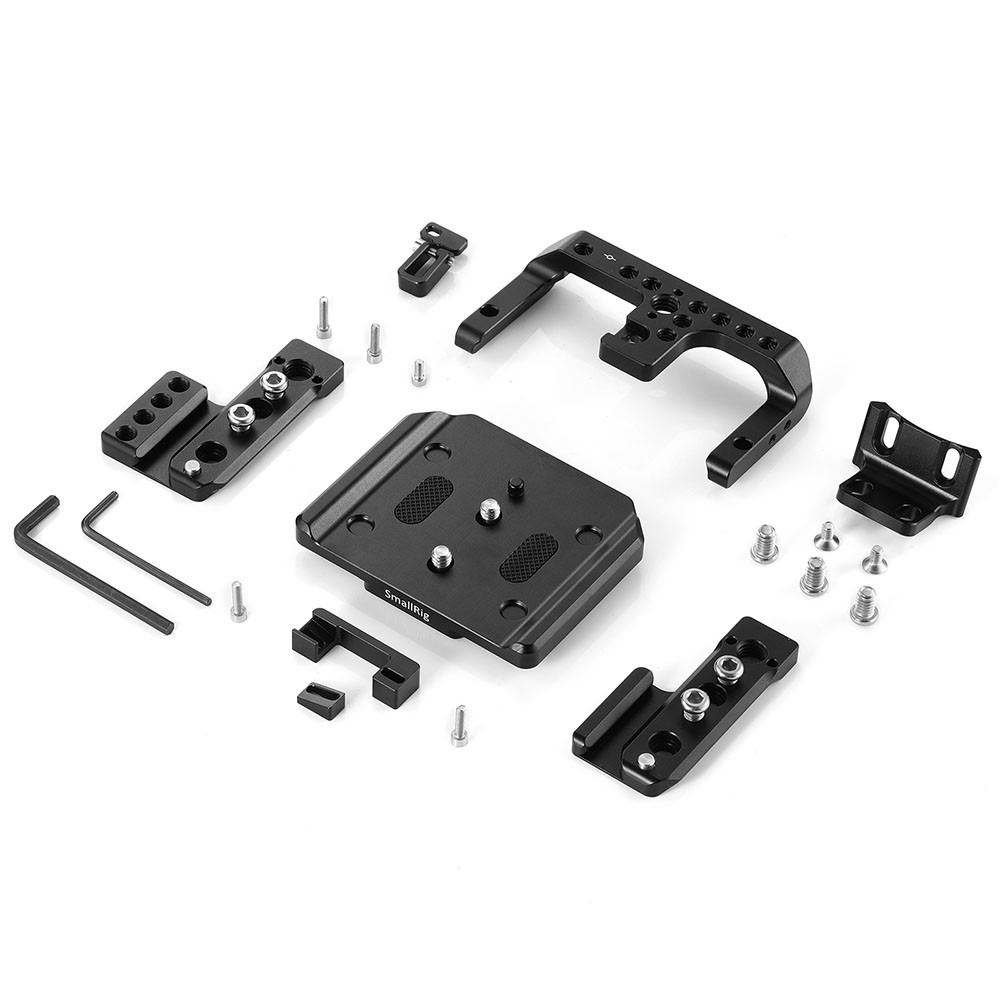

Packing List

1 x Top Plate

1 x Bottom Plate

2 x Side Plate

1 x Lens Support

1 x HDMI Cable Clamp

1 x USB Cable Clamp

7 x 1/4 Screw

2 x M4 Screw

6 x M3 Screw

2 x Hex Spanner

Technical Data

Product Dimensions: 106x114.5x87mm

Package Dimensions: 95x65x28mm

Net Weight: 268g

Package Weight: 325g

Material(s): Aluminum Alloy
