SmallRig Cage for SmallHD 701Lite,702 Lite,702 Bright Monitor 2131

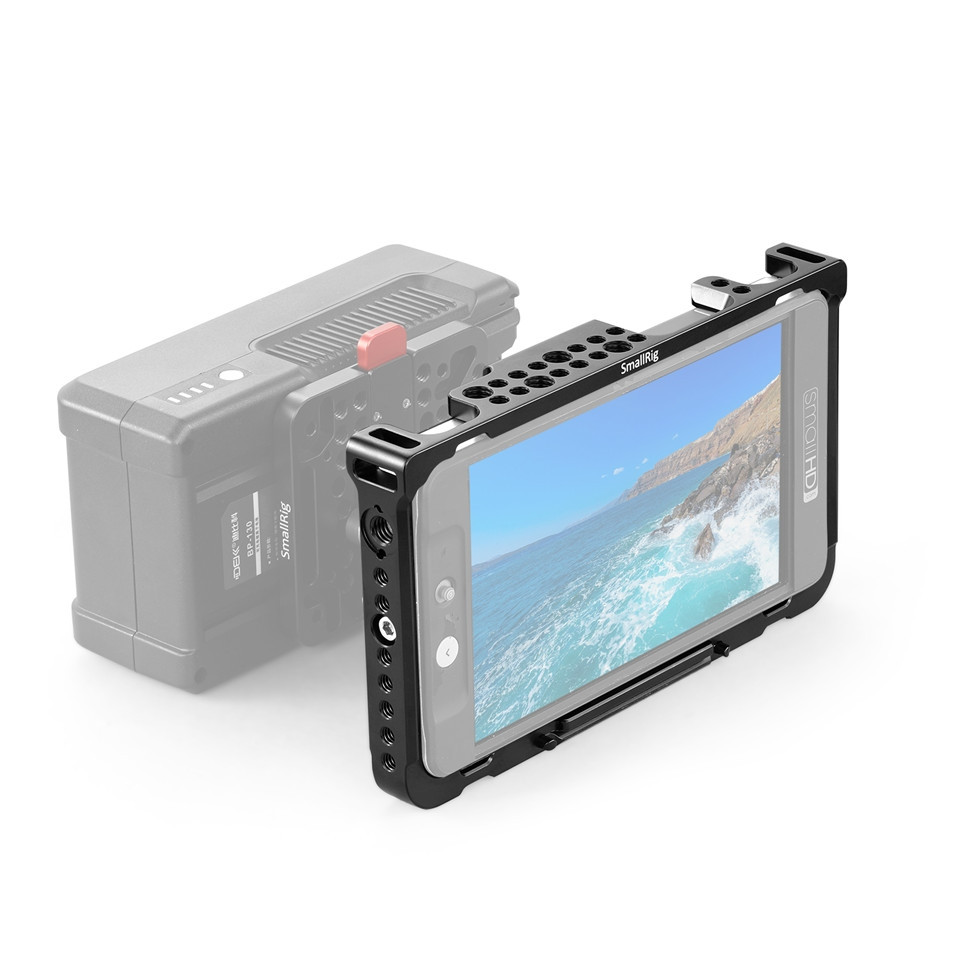

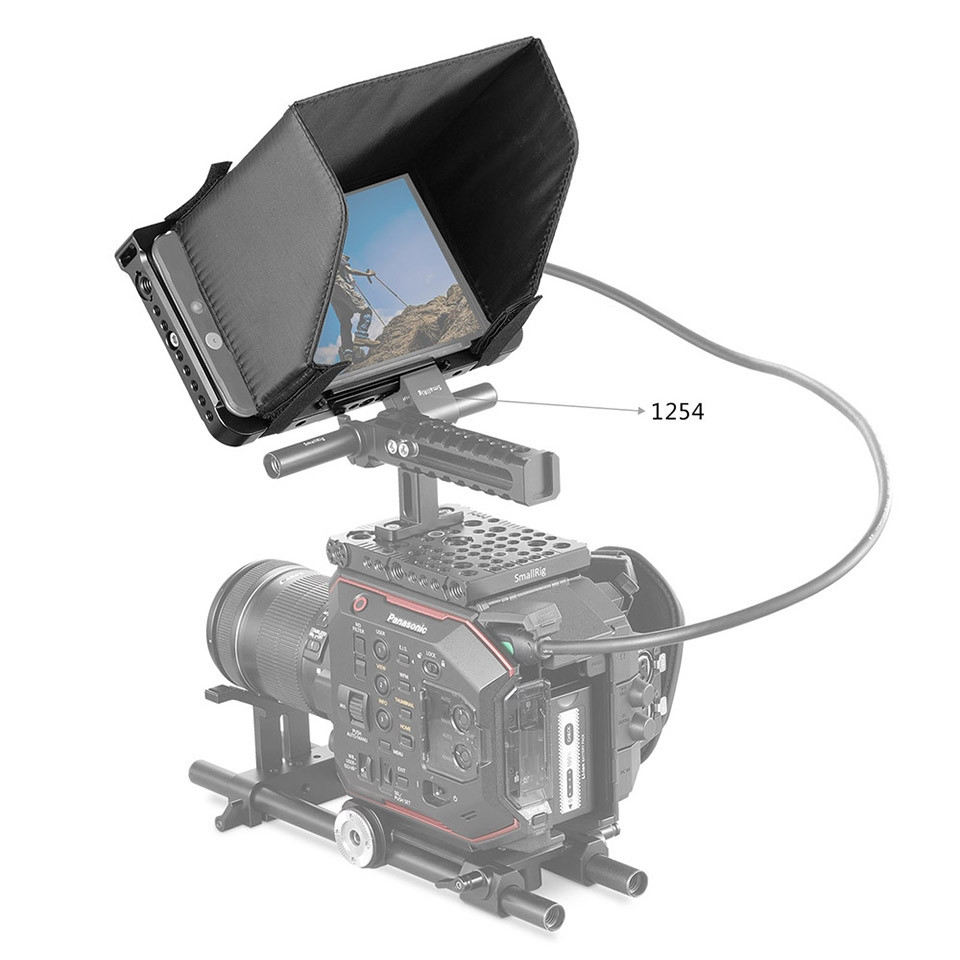

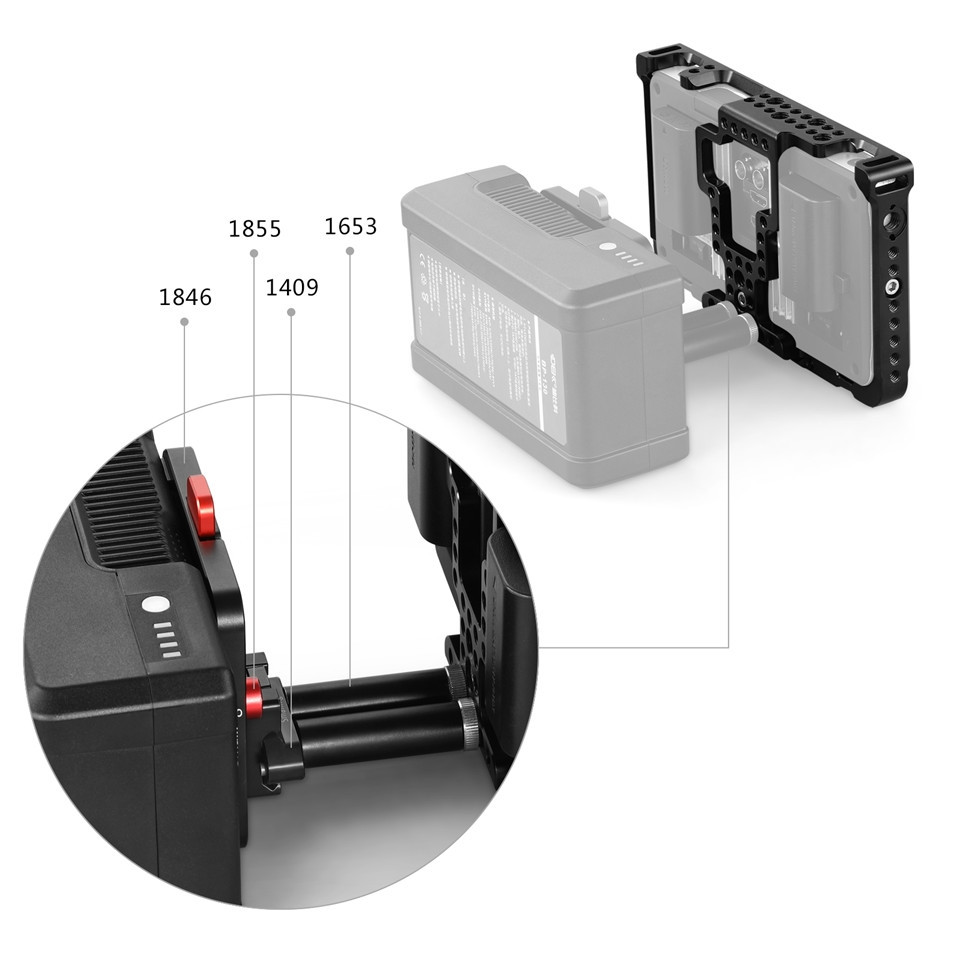

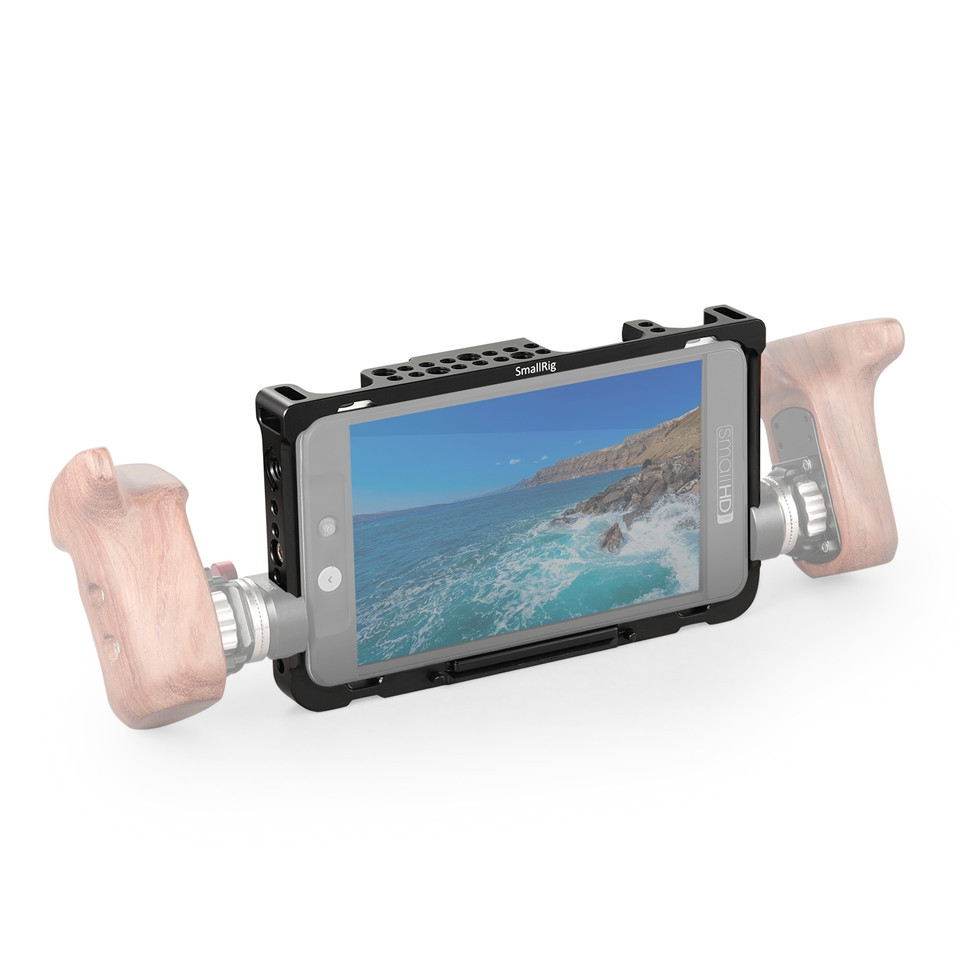

SmallRig SmallHD 700 Series Monitor Cage 2131 is a form-fitted monitor cage which is designed to provide an all-around protection and mounting options for SmallHD 701Lite, 702 Lite, and 702 bright. The monitor is fixed on the cage through three 1/4 screw holes on each side and back of the monitor. It features a Nato rail on each side and bottom for accessories with nato clamp to make your setup quick release, such as nato side handle 2117 and 2118. You can also mount a nato rod clamp 1254 to the bottom with a short rod to make your monitor adjustable. The cage provide multiple 1/4, 3/8 and arri 3/8 holes for accessory attachment such as magic arm 2065 and Teradek mounting bracket 2107. Optional cable clamp 1693 is used to protect the HDMI and SDI ports on the monitor. You can use a short rod 1653 and 1846 for battery attachment. A dedicated monitor sunhood is included to provides glare protection when shooting outdoors.
Key Features
1.Provide protection for SmallHD 701Lite,702 Lite,702 Bright monitors.
2.Multiple 1/4, 3/8 and arri 3/8 holes for accessory attachment.
3.Nato rail on each side and bottom for accessories with nato clamp to make your setup quick release.

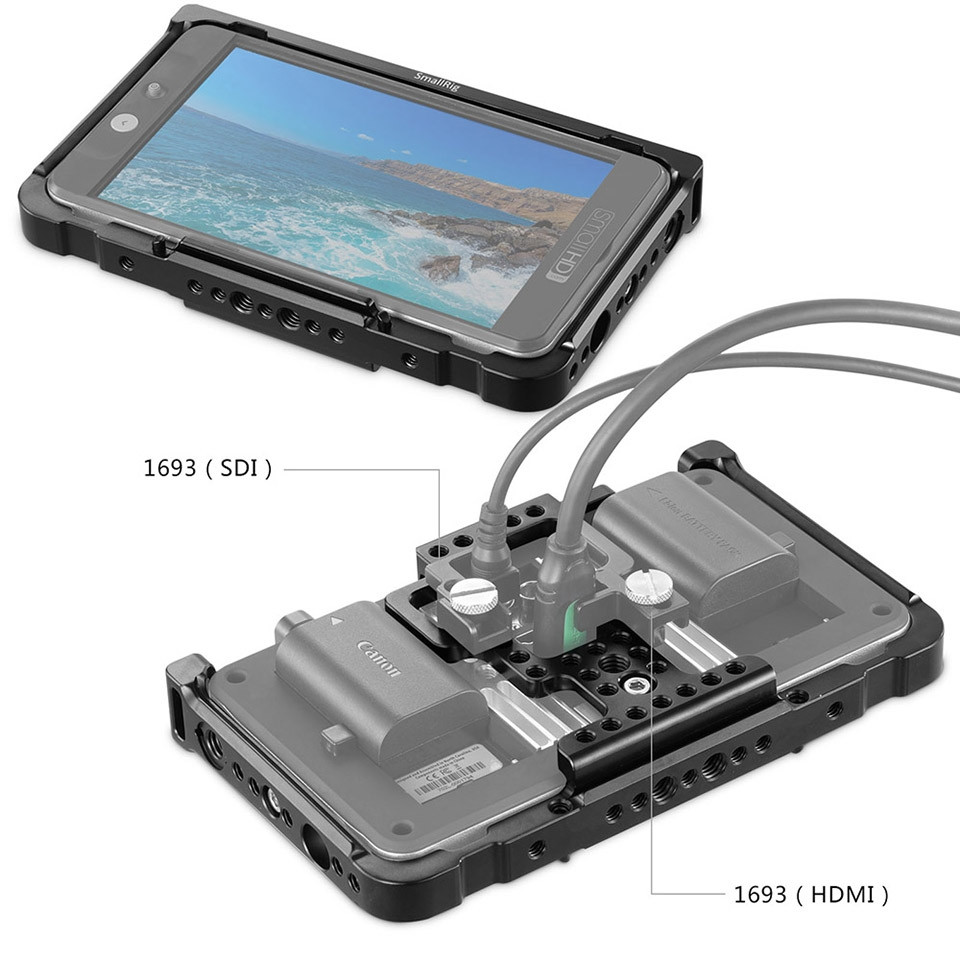

4.Optional cable clamp 1693 to protect the HDMI and SDI port on the back.

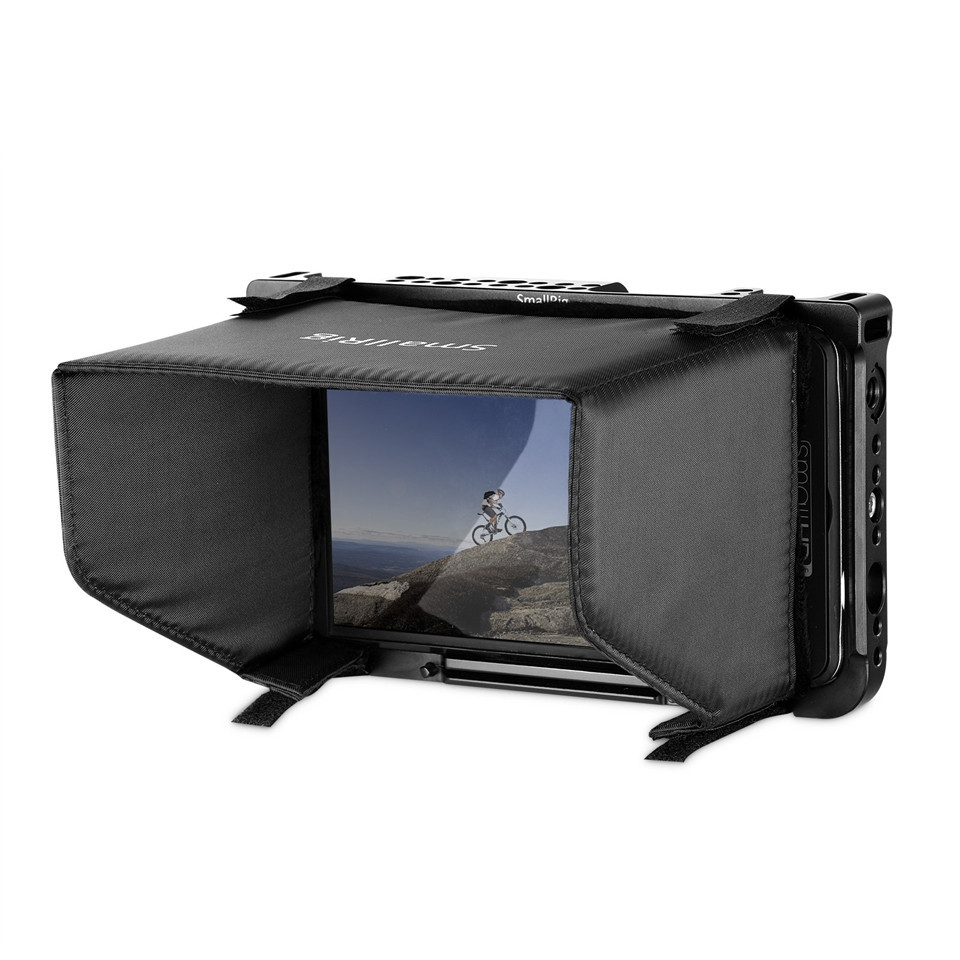

5.Dedicated Sunhood included without obstructing the control button.
6.Shoulder strap holes on both sides.
Work With
SmallHD 701Lite,702 Lite,702 Bright monitor

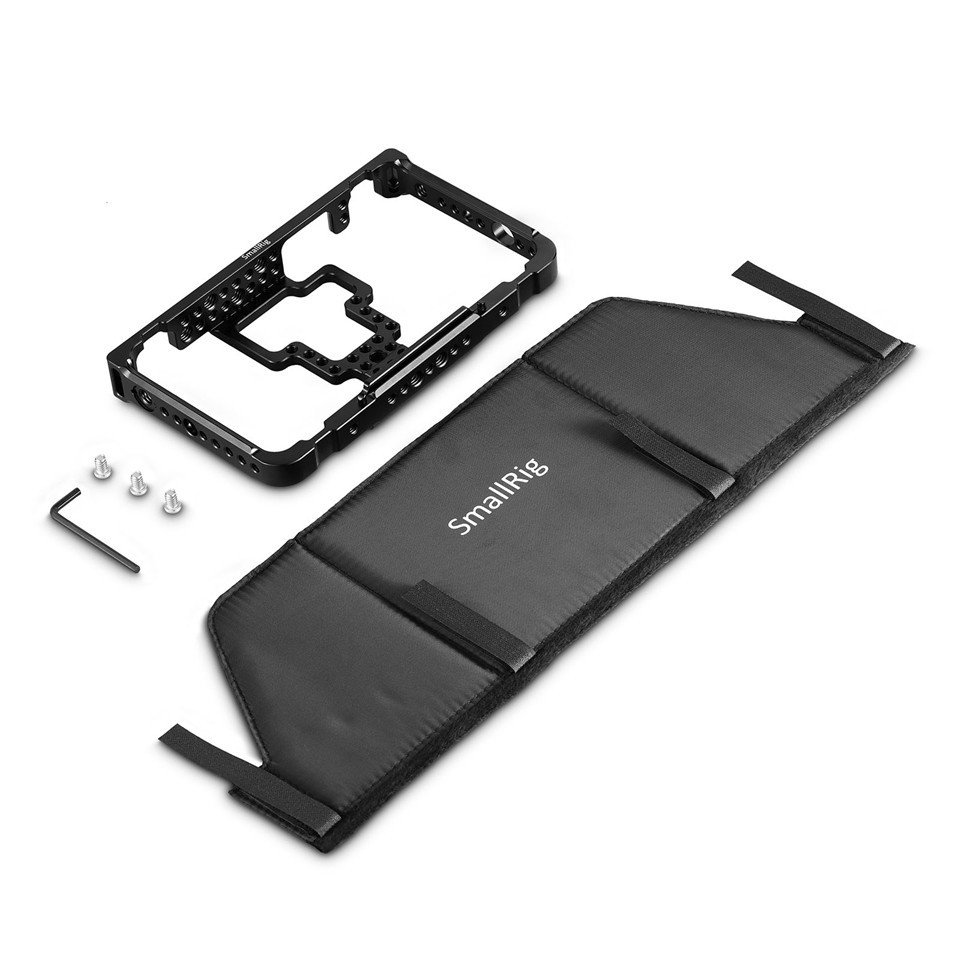

Packing List
1 x Monitor Cage
3 x 1/4" Screw
1 x Hex Spanner
1 x Sunhood
Technical Data

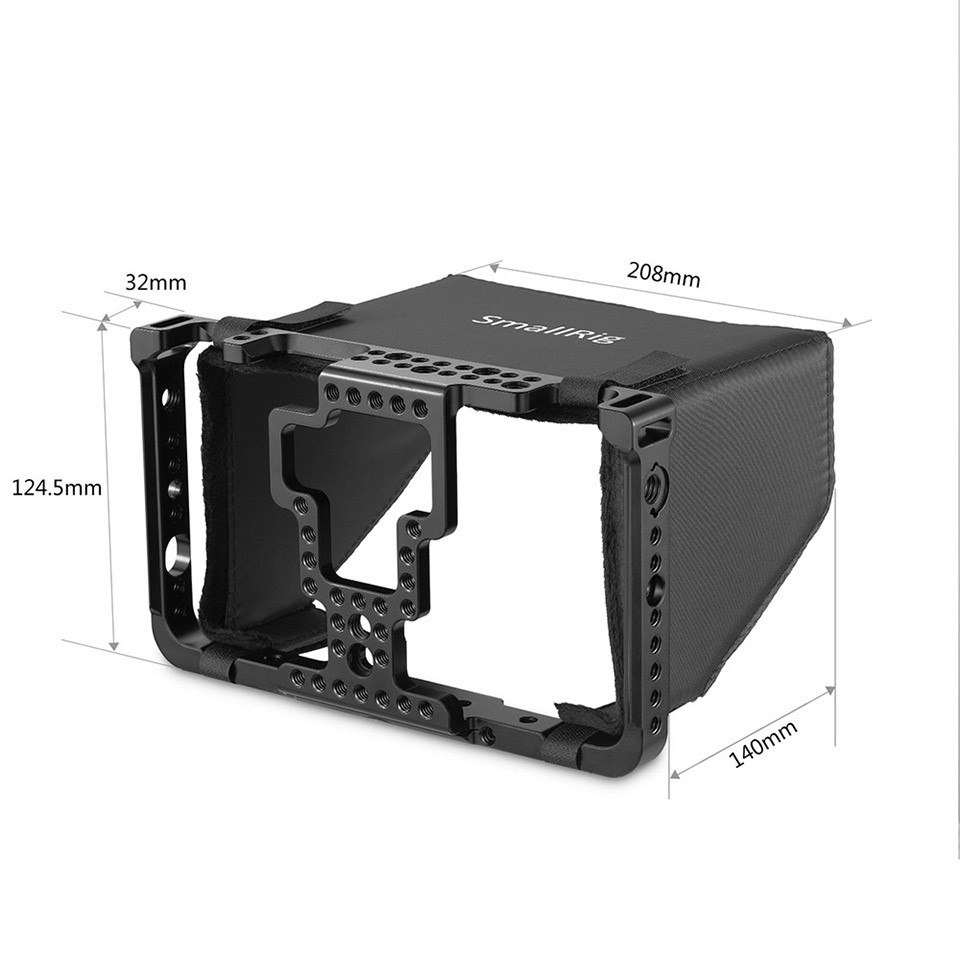

Product Dimensions: 208 X 125 X 32mm
Net Weight: 256g
Material(s): Aluminum Alloy
