SmallRig Cage for Nikon Z5 / Z5II / Z6 / Z6II / Z7 / Z7II 5257

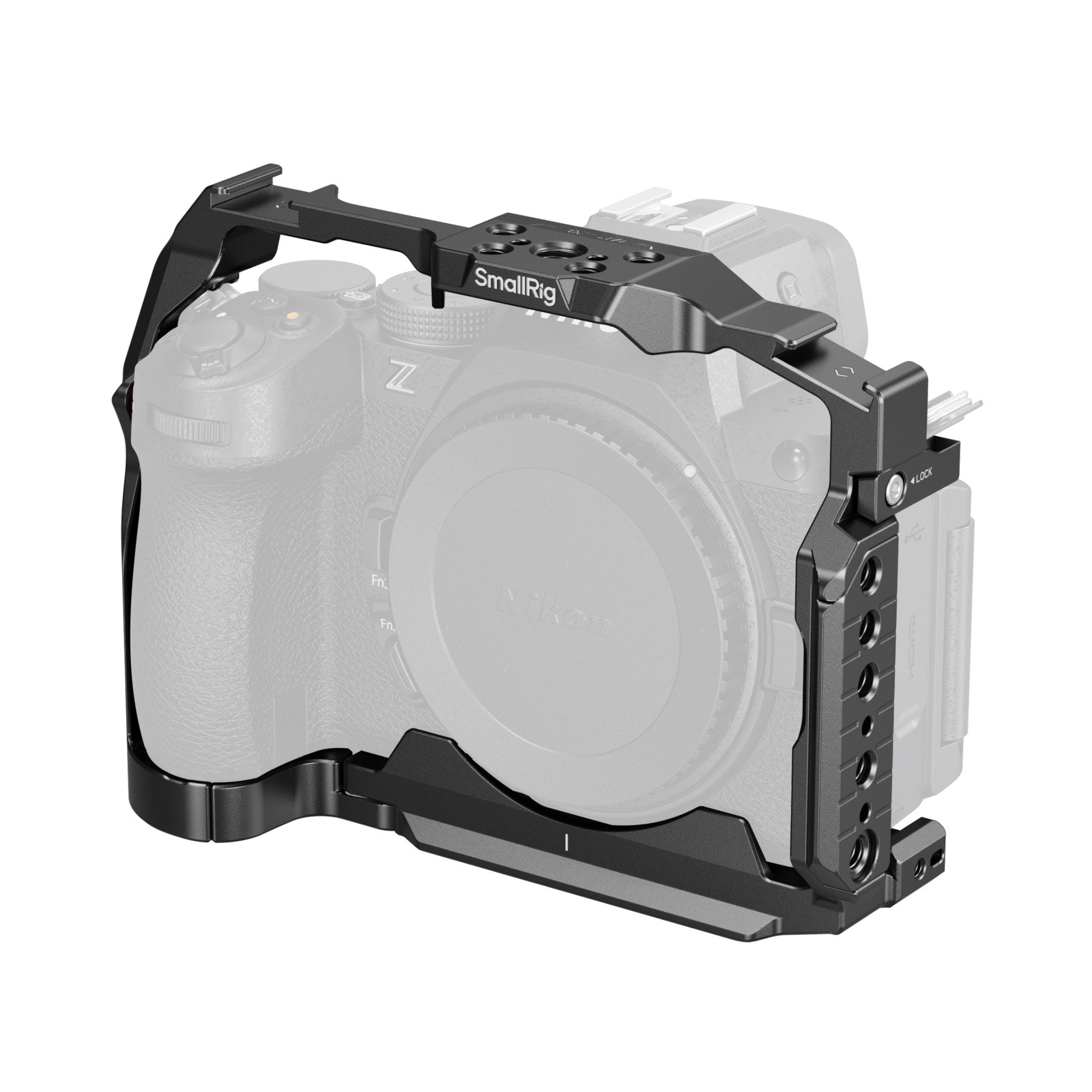

SmallRig Cage for Nikon Z5 / Z5II / Z6 / Z6II / Z7 / Z7II 5257 is designed to provide comprehensive protection for the camera while offering versatile expansion interfaces. The cage boasts a three-point locking system, using a bottom 1/4"-20 screw and dual side locating blocks to secure the camera and prevent deflection, while built-in pads protect it from scratches. Importantly, the cage does not interfere with the camera’s buttons, ports, flip screen, or battery compartment.

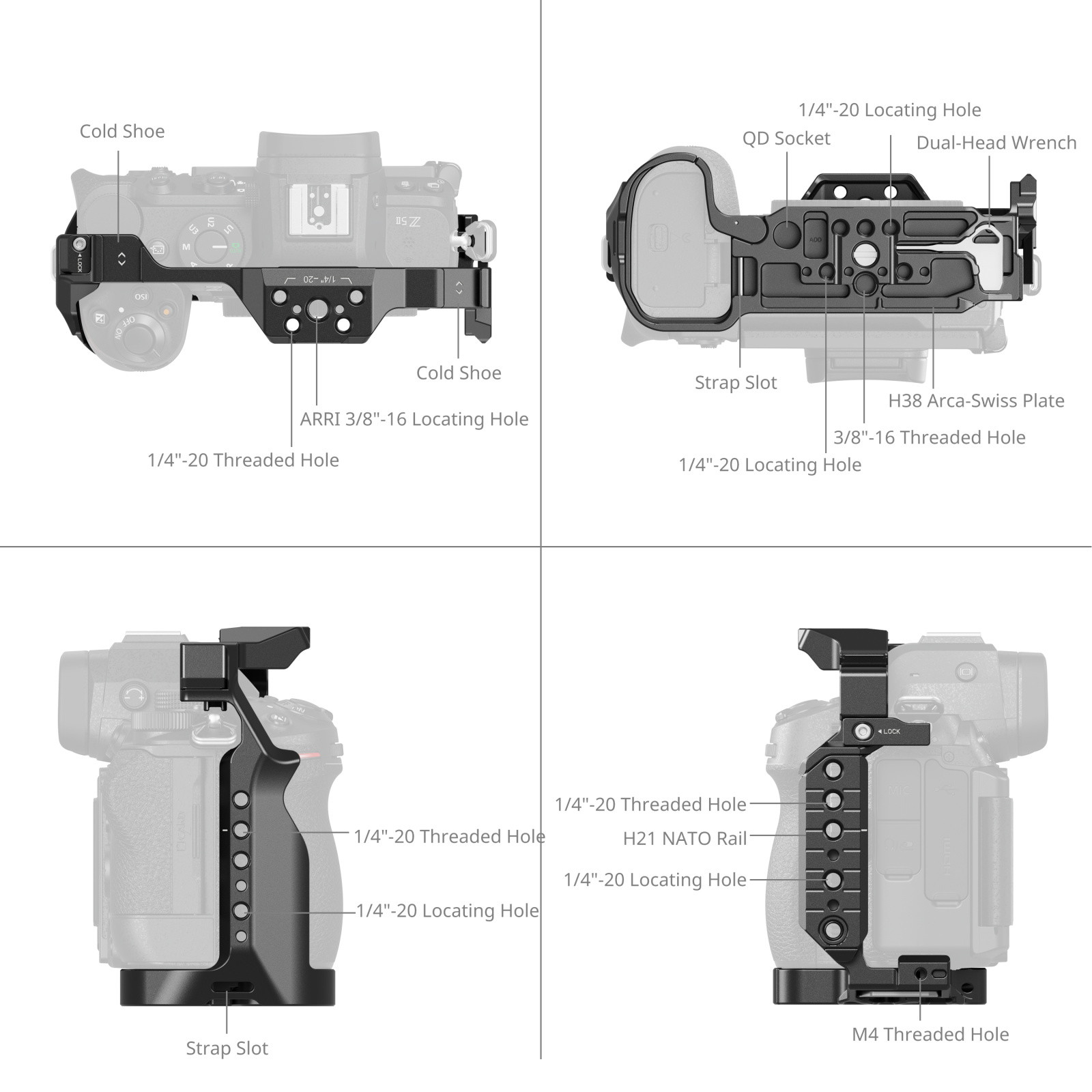

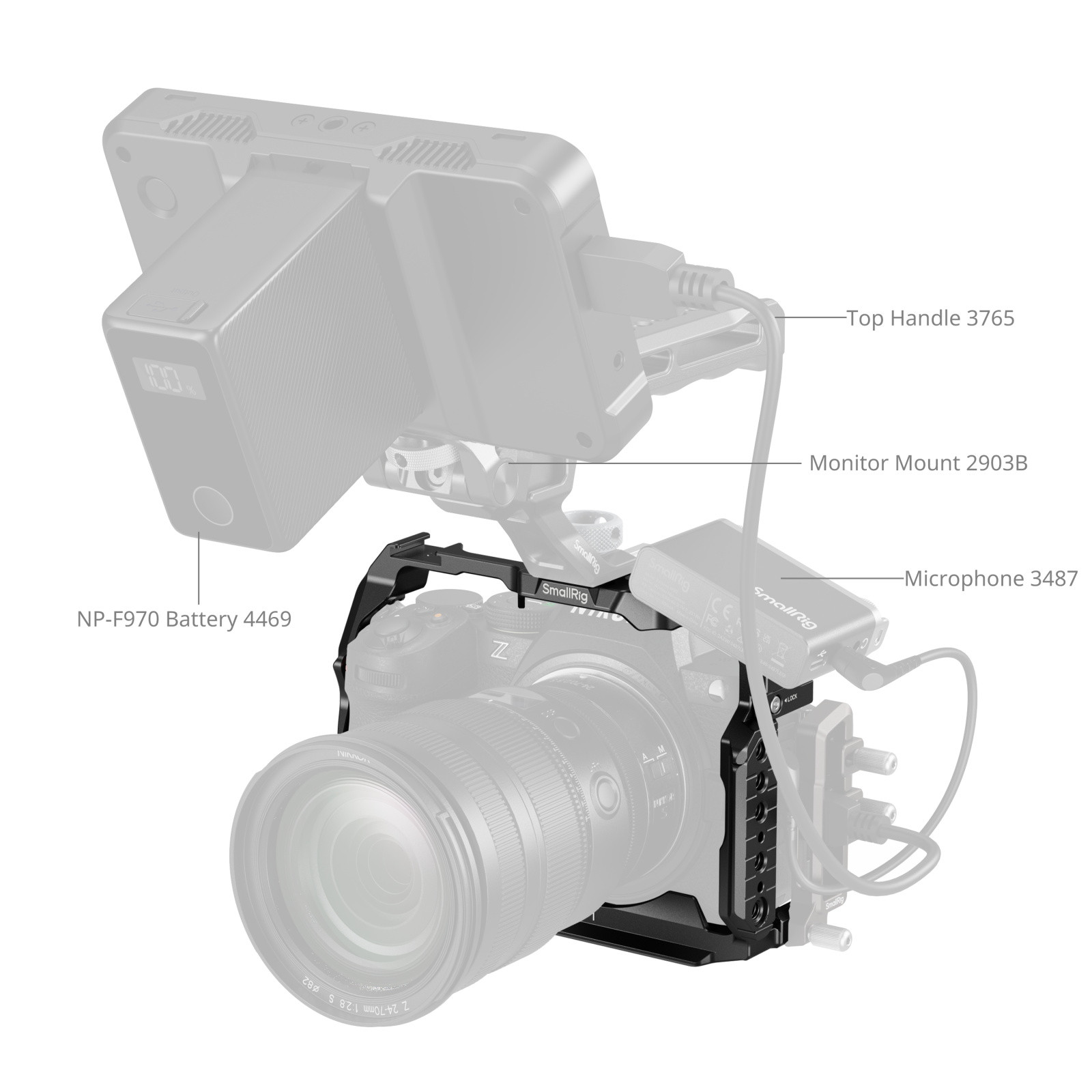

It is equipped with 1/4"-20 threaded holes, 1/4"-20 locating holes, and 3/8"-16 threaded holes for attaching accessories such as side handles (ID 4015) and top handles (ID 3765) for smooth camera movement, as well as monitor mounts (ID 2903B), tripods (ID 3989), power bank holders (ID BUB2336), and mini V-mount battery plates (ID 2987). The side features a 1/4"-20 locating hole for mounting single rod clamps (ID 3598), magic arms (ID 3873), and side handles (ID 4346).

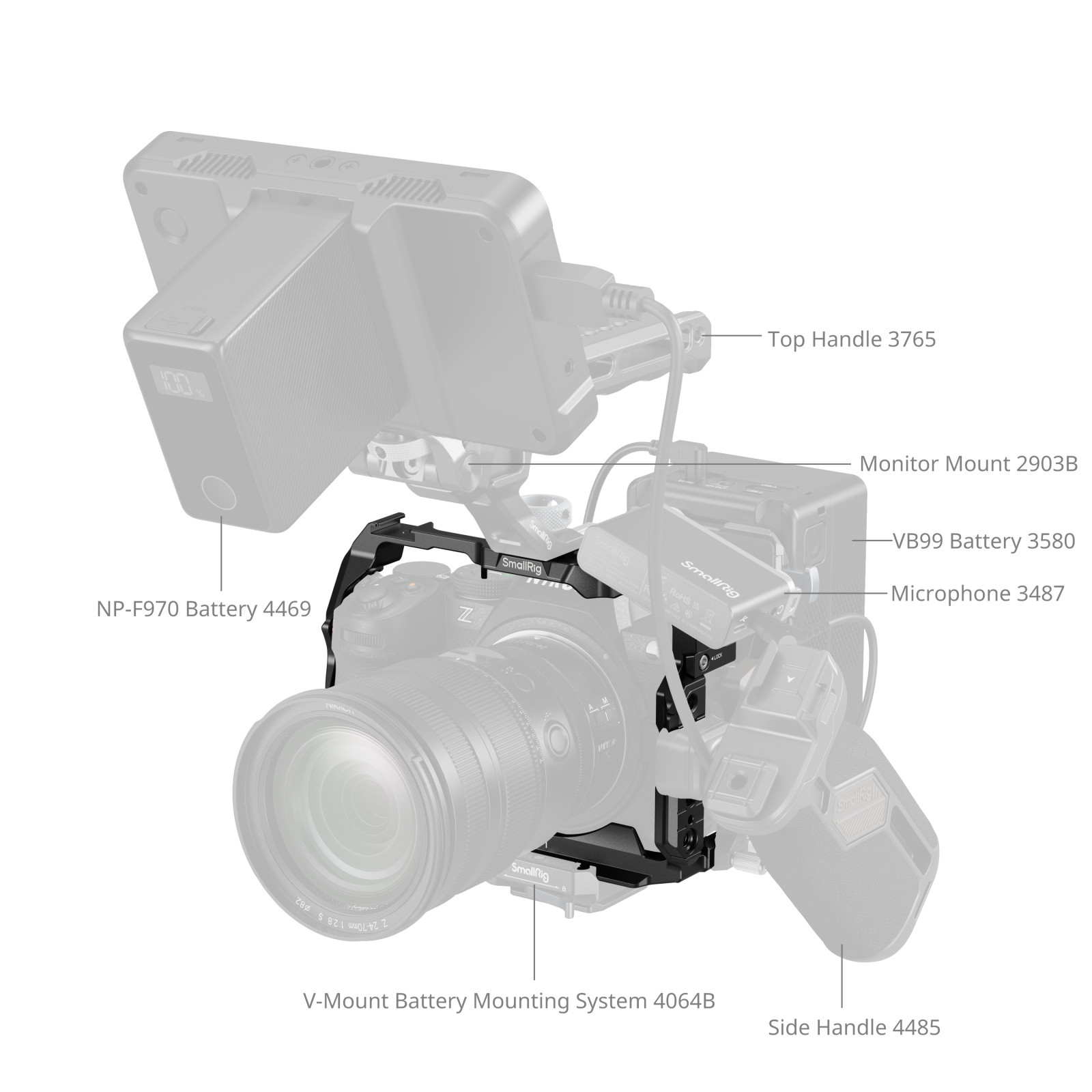

The left side of the cage integrates a HawkLock quick release NATO rail, enabling the attachment of side handles (ID 4485) for quick accessory assembly and disassembly. It also features a cold shoe mount for microphones and lights, a strap slot for wrist straps (ID 3848), and a QD socket for shoulder straps (ID 4118B). It also features shoulder strap slots designed for carrying the camera with the lens facing down to prevent damage.

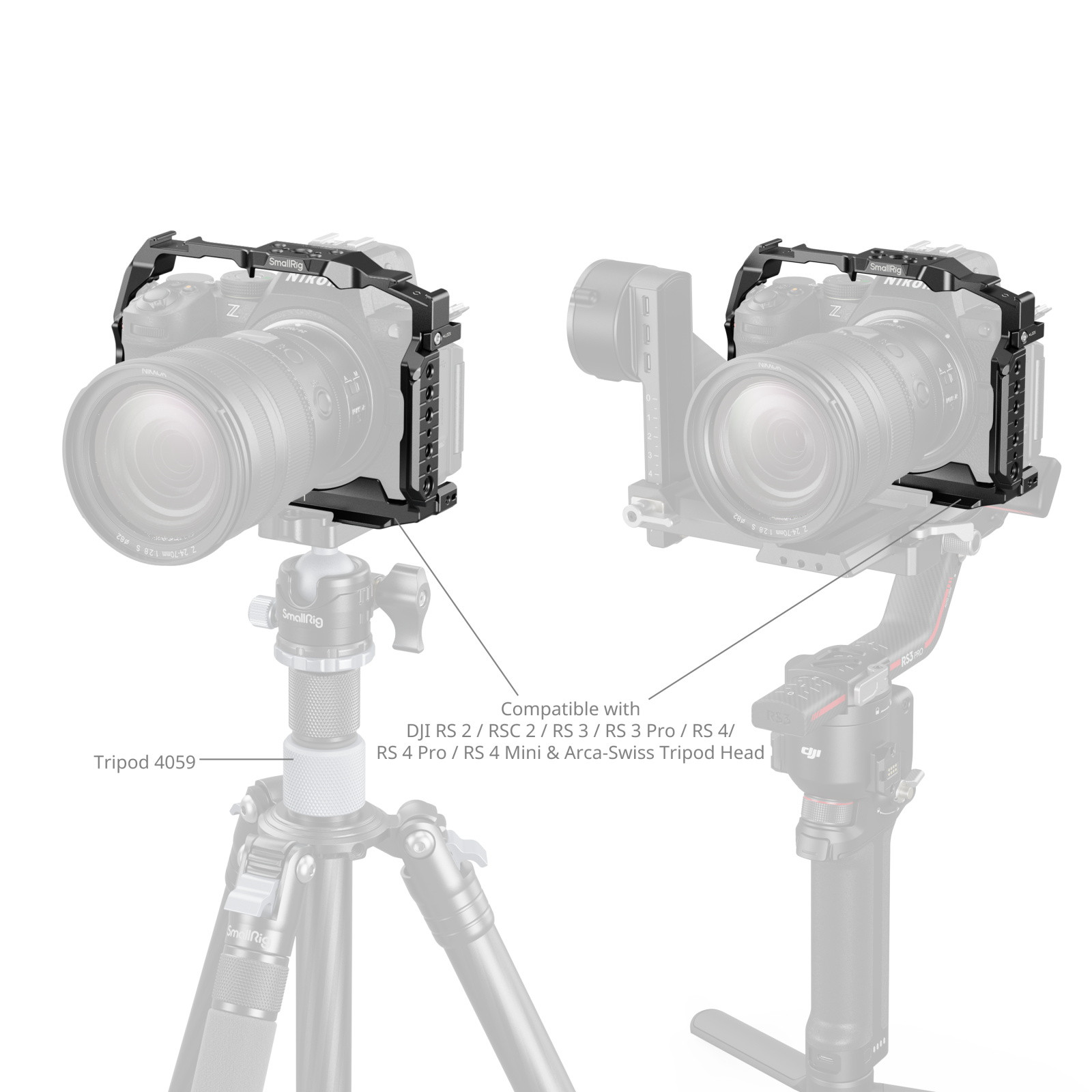

The bottom features an Arca-Swiss quick release plate for direct mounting to Arca-type tripods (ID 4060) and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 4 Mini gimbals, enabling quick transitions between stabilizer, handheld, and tripod setups. For power solutions, it can be paired with V-mount battery plates (ID 4505) and V-mount batteries (ID 4608) for extended shooting time. The built-in double head wrench at the bottom facilitates easy assembly and disassembly.

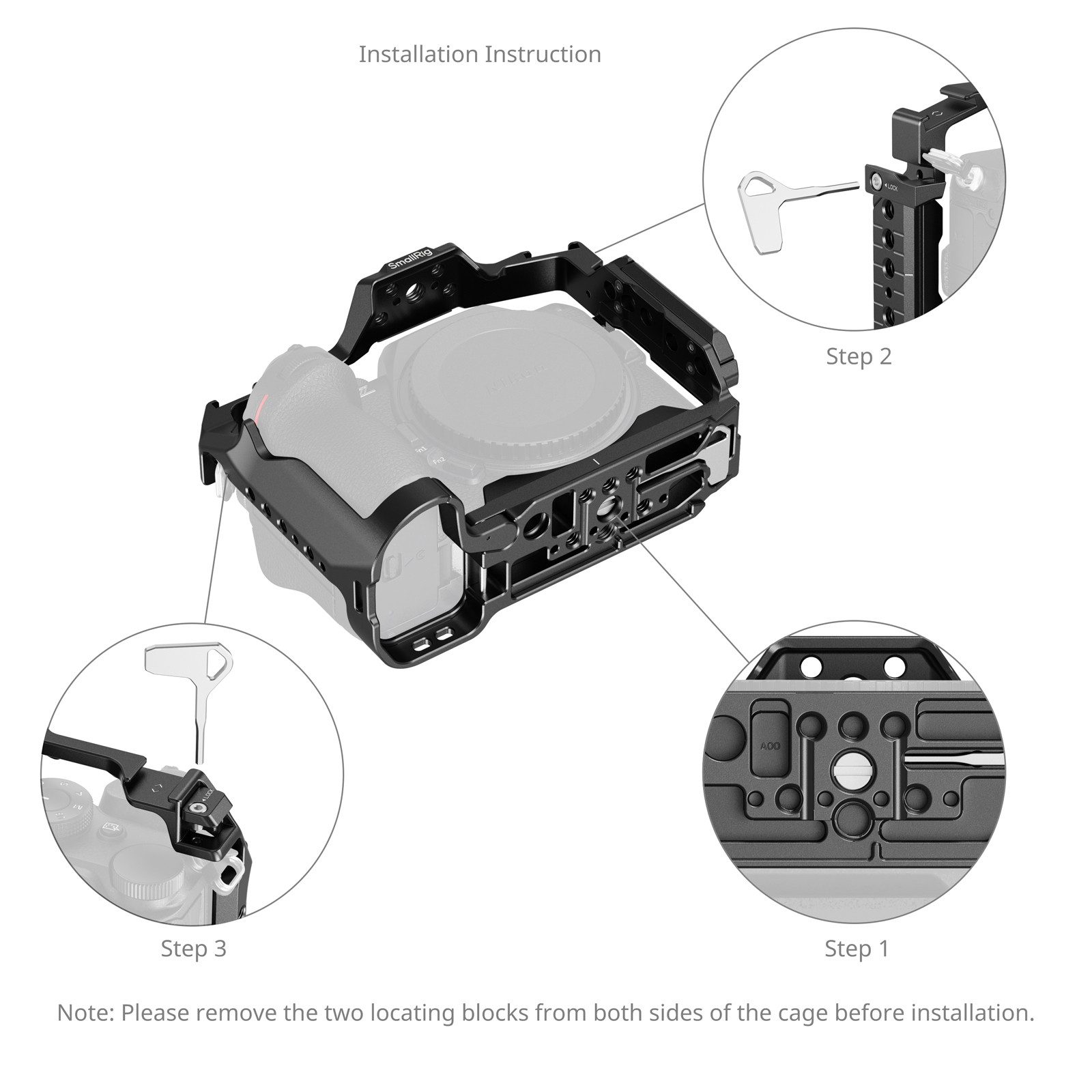

Note: Please remove the locating blocks on both sides before installing the cage.
Work With
Nikon Z5II, Z7, Z6, Z7II, Z6II, Z5
Packing List
Cage x 1
User Manual x 1
Technical Data

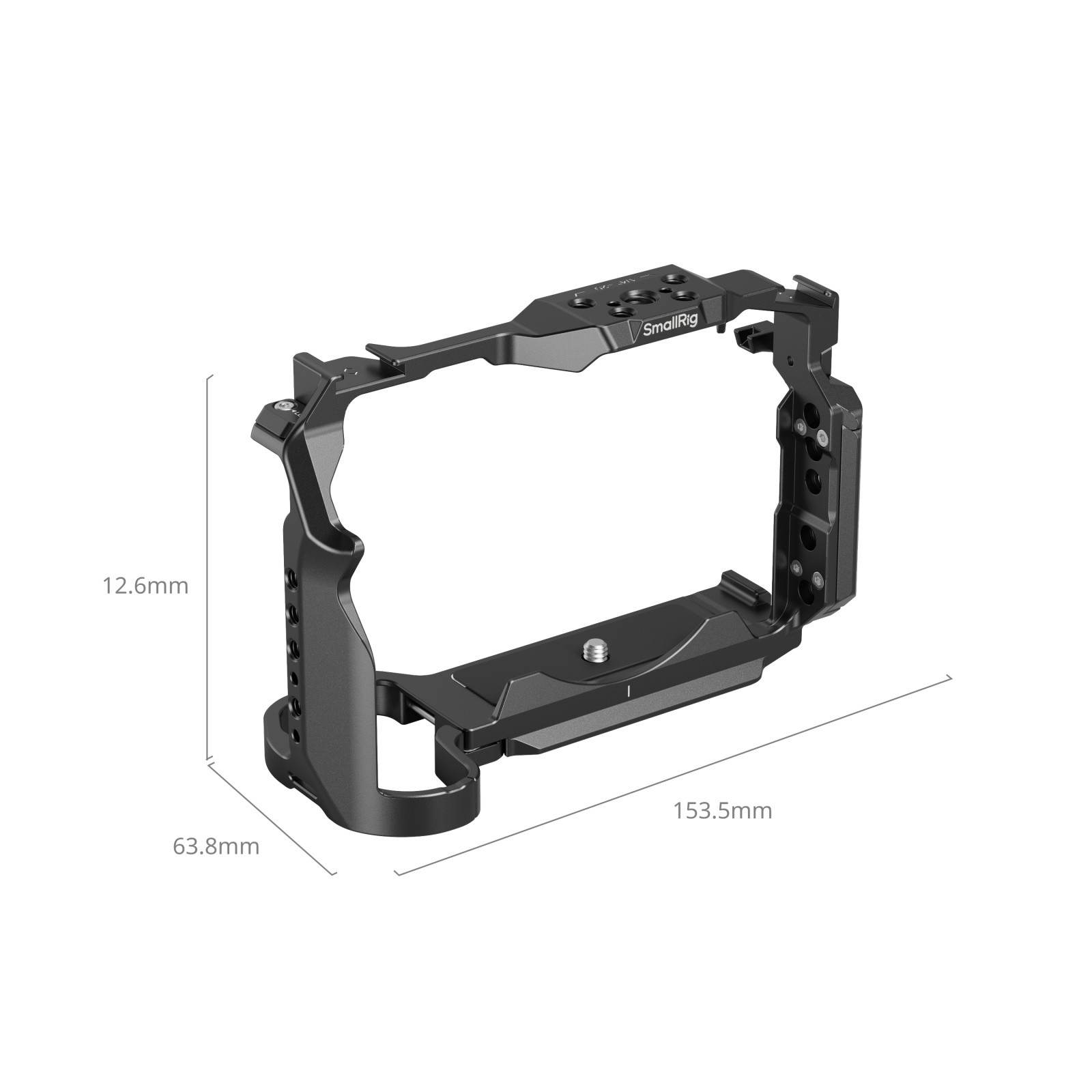

Product Dimensions: 153.5 × 112.6 × 63.8mm / 6.0 × 4.4 × 2.5in
Package Dimensions: 180.0 × 138.0 × 67.0mm / 7.1 × 5.4 × 2.6in
Product Weight: 172.0 ± 5.0g / 6.0 ± 0.2oz
Package Weight: 280.6 ± 5.0g / 9.6 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel
