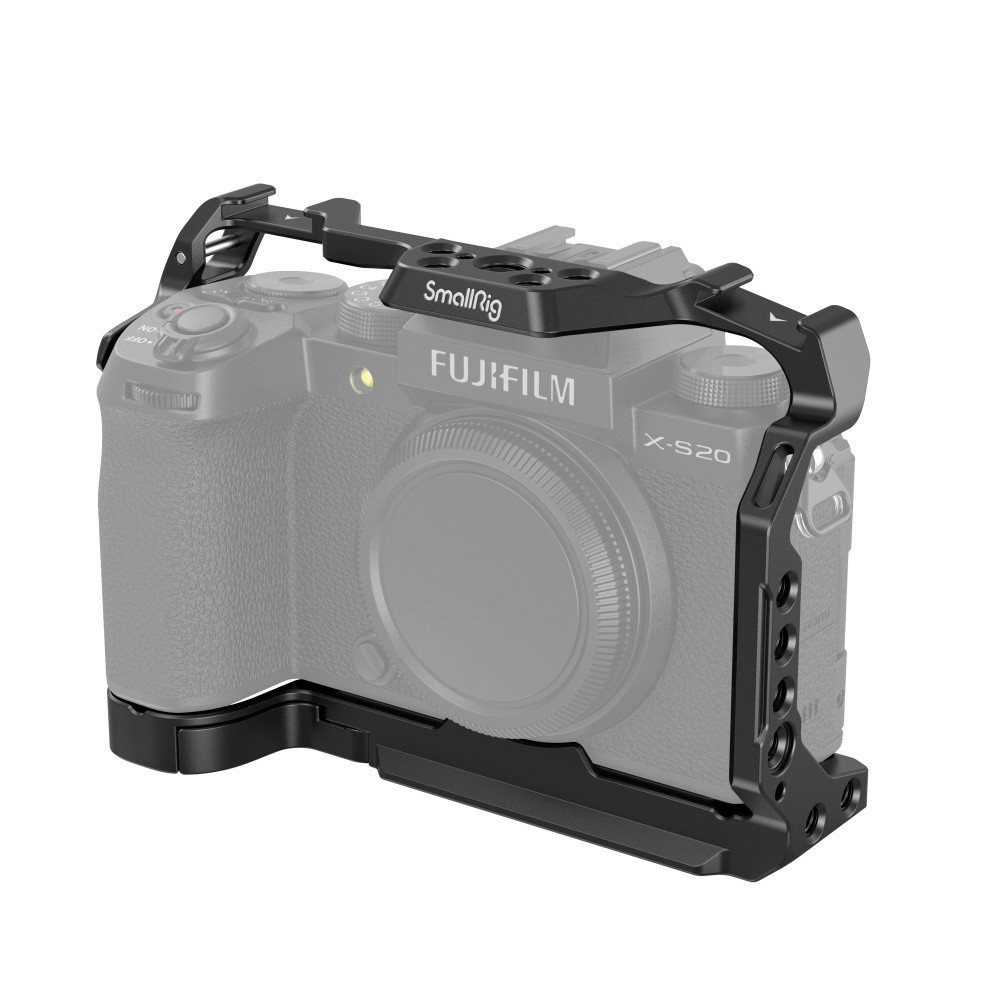

SmallRig Cage for FUJIFILM X-S20 4230

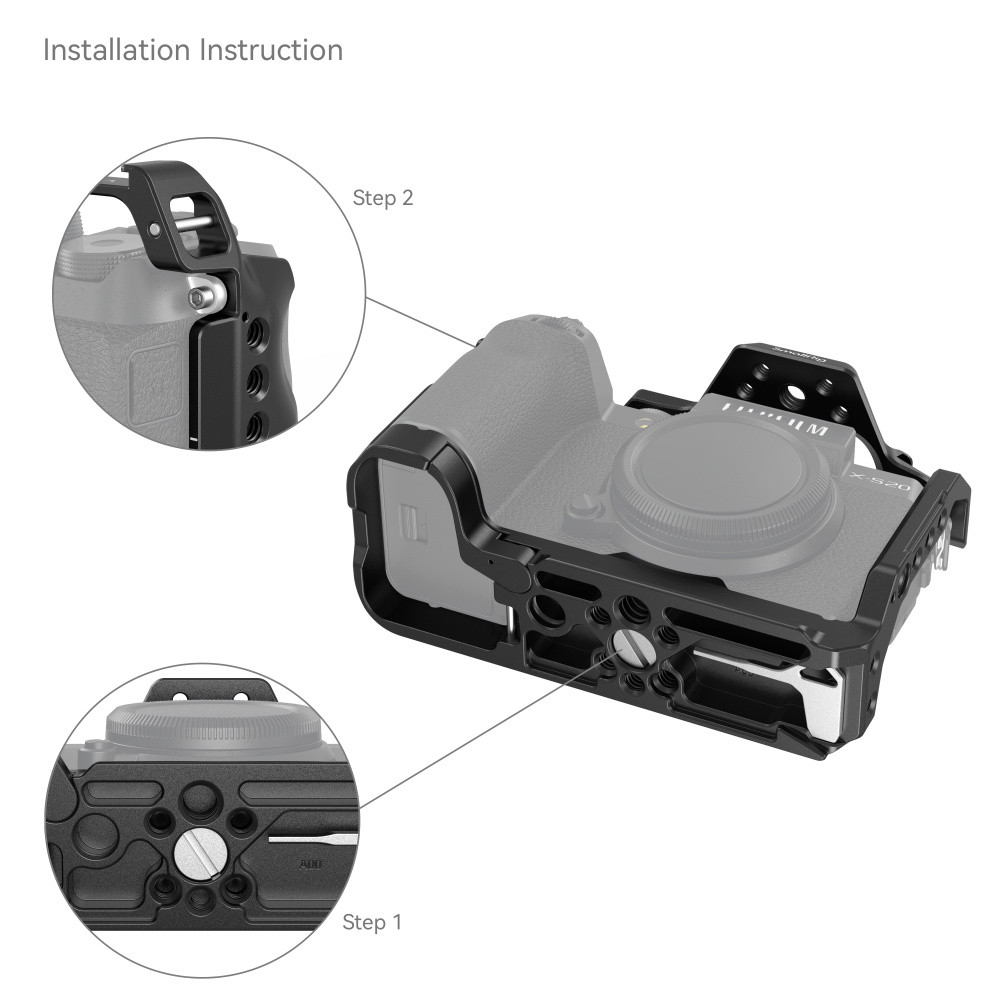

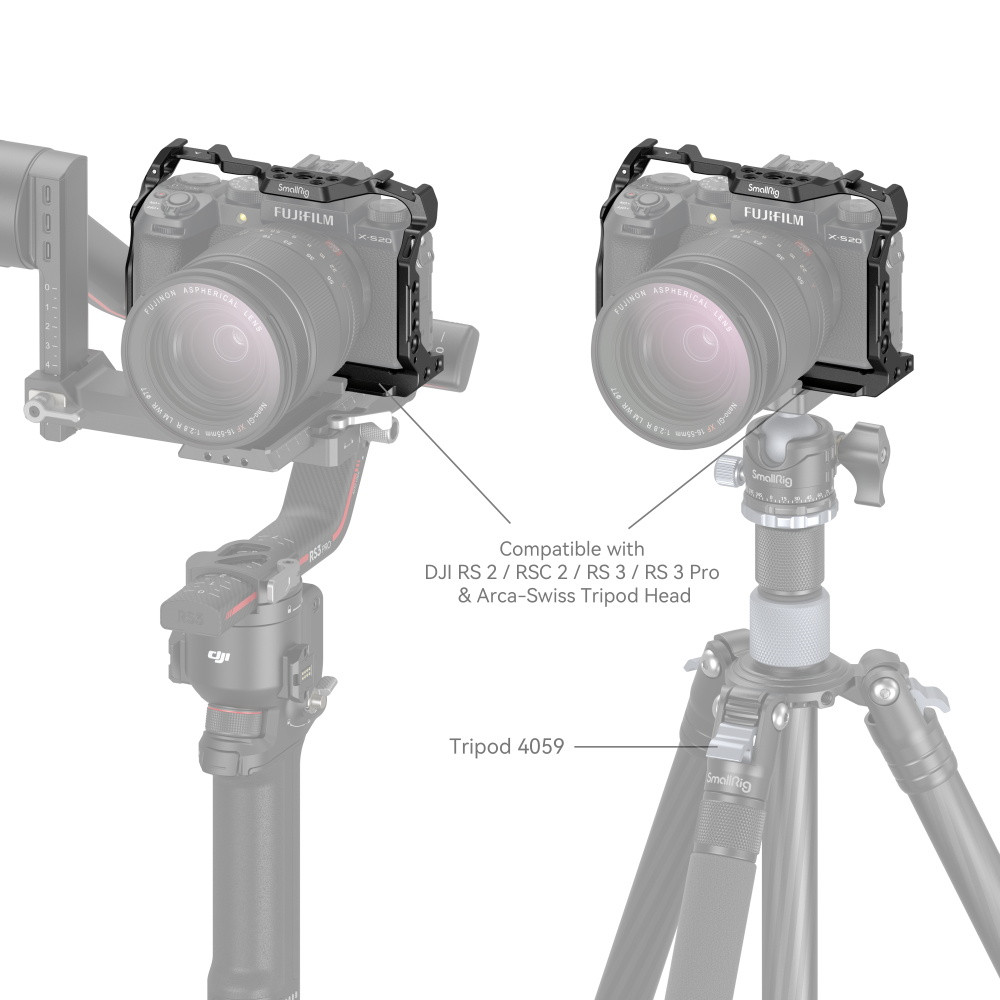

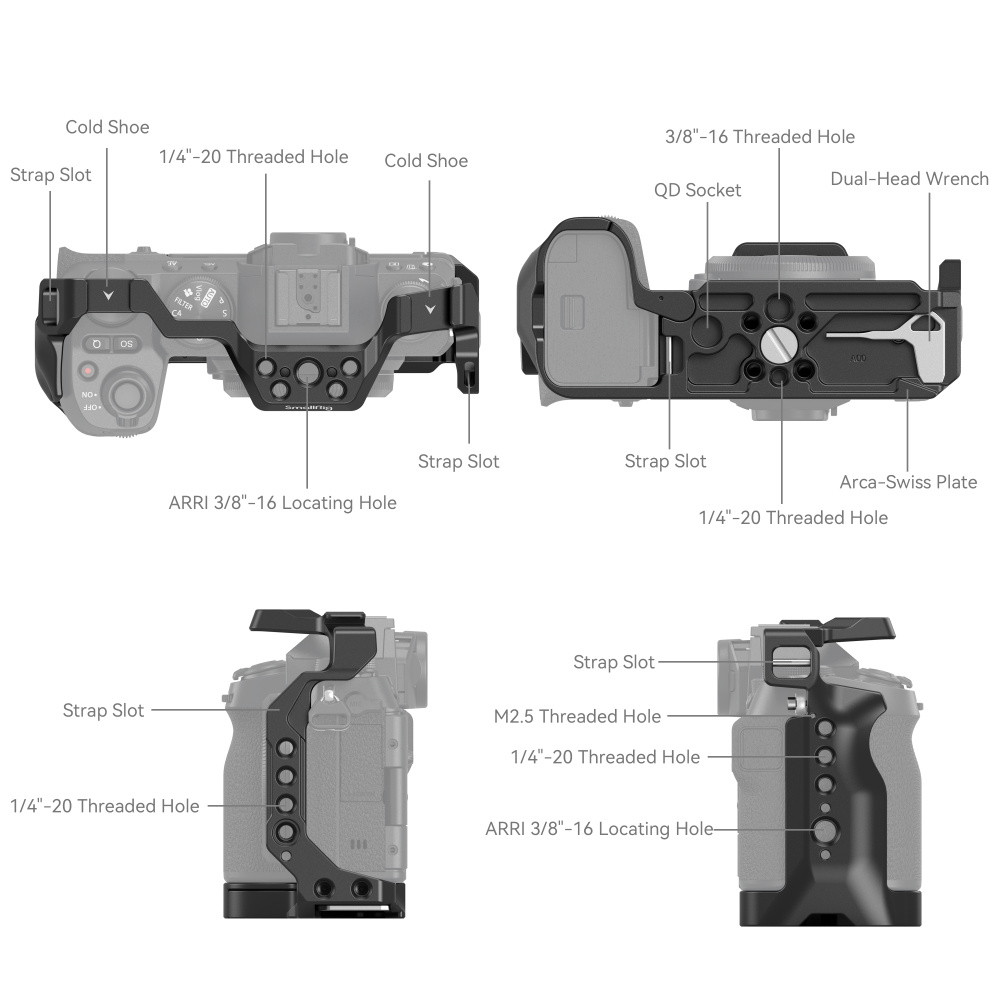

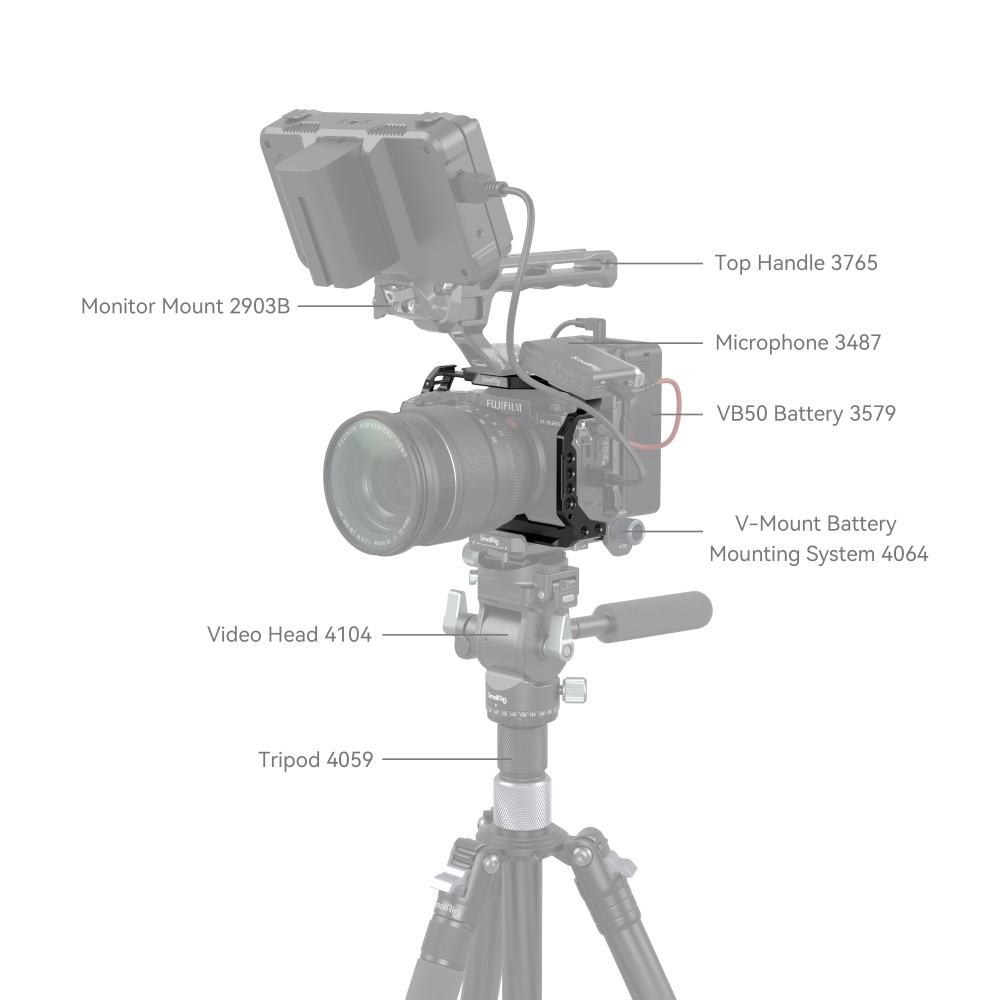

SmallRig Cage for FUJIFILM X-S20 4230 is designed to protect the camera and attach accessories. Locking FUJIFILM X-S20 via one 1/4 "-20 screw on the bottom and one M2.5 screw on the right side of the cage. Comes with rubber pads that prevent scratches, and gives full access to buttons, card slots, flip screen, and battery door. Among its accessory mounting points, 1/4"-20 threaded hole, 3/8"-16 threaded hole, and ARRI 3/8"-16 locating hole to support Side Handle 2093 & 3814, Top Handle 3765, Monitor Mount 2903 & 2904, HDMI Cable Clamp 3637, Manfrotto Plate 1280 & 2458, Holder for Portable Power Banks 2336 and mini V Mount Battery Plate 2987; and 1/4"-20 locating hole fits Single Rod Clamp 3598 and Magic Arm 3873. Besides, there are two cold shoes for attaching microphones and LED video lights for Vlogging; strap holes for Hand Strap 3848 & 2456; and QD mounts for the QD strap buckle. The bottom Arca Swiss quick-release plate supports Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals for a quick switch between gimbal, handheld, and tripod modes. A double-ended wrench is also included for easy disassembly and assembly.
Note:
1. Please remove the split ring on the right of the camera before installing this cage.
2. HDMI Cable Clamp 3637 may jam the LCD flip screen.
Work With
FUJIFILM X-S20
Packing List
Cage x 1
User Manual x 1
Technical Data
Product Dimensions: 142.3 x 58.3 x 99mm
Package Dimensions: 186 x 103 x 61.5 mm
Product Weight: 140±5g
Package Weight: 215±5g
Material(s): Aluminum Alloy, Stainless Steel
