SmallRig Cage for Canon EOS C80 5810

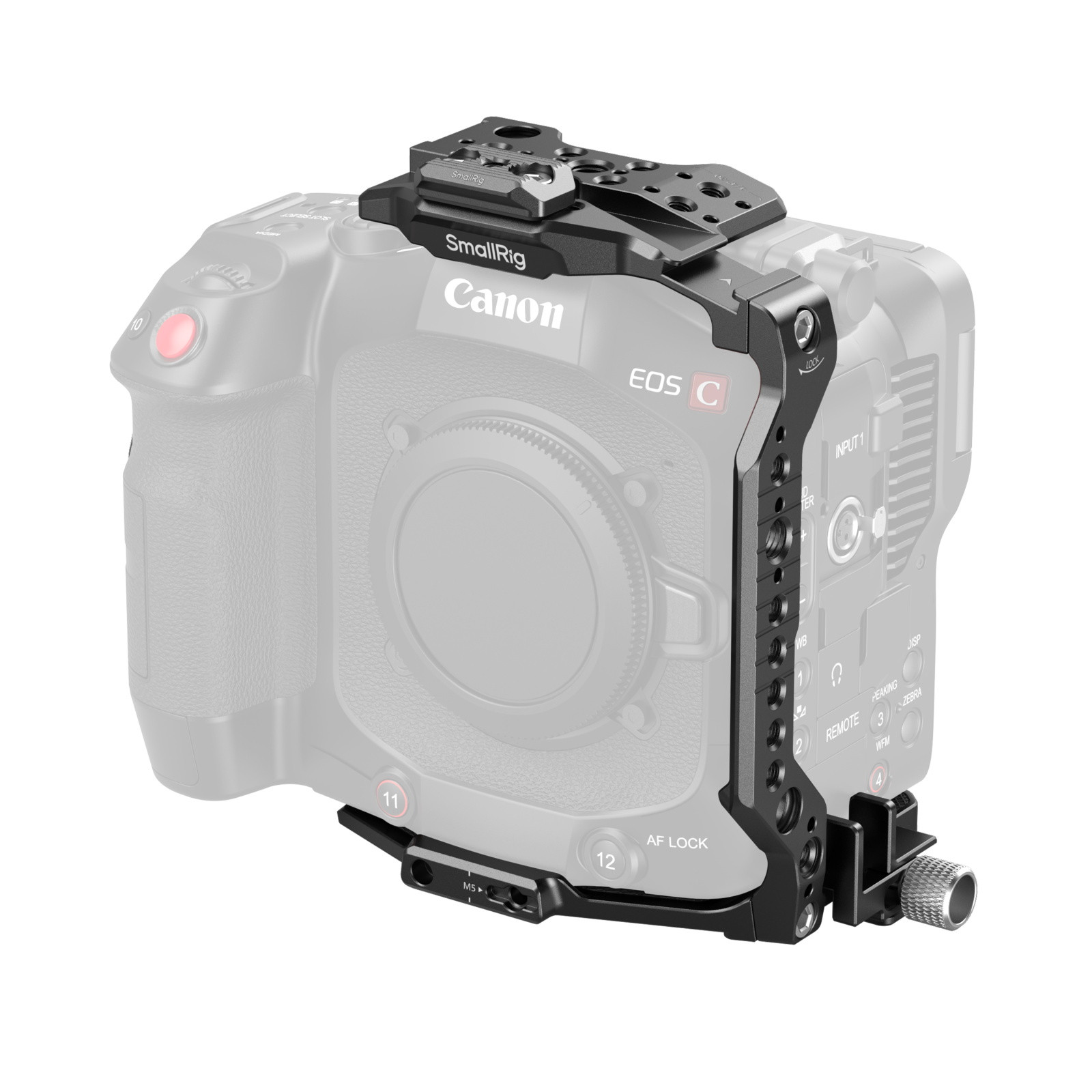

SmallRig Cage for Canon EOS C80 5810 is expertly designed to provide versatile shooting solutions for filmmakers. The kit includes a top plate, dual side plates, a baseplate, a bottom mount plate, a cable clamp, and a NATO Rail.
Featuring a modular design, the cage incorporates a variety of mounting interfaces: 1/4"-20 and 3/8"-16 threaded holes, 1/4"-20 locating holes, ARRI 3/8"-16 locating holes, M3 threaded holes, cold shoe mounts, H21 NATO rails, QD sockets, and more. This extensive compatibility allows for seamless integration with side handles (ID 3260, 4015, 4016), magic arms (ID 5141, 4194, 3873, 3959), monitor mounts (ID 4487, 2906B, 2903B, 2905B), baseplates with dual rod clamps (ID 3357), and follow focus rod clamps (ID 3598).
The modular baseplate offers two configurations: attaching the bottom mount plate widens the distance between threaded holes, making it compatible with tripods (ID 4463), ARRI BP8 bridge plates, LWS baseplates with dual rod clamps (ID 3357), and shoulder rigs (ID 4181), suitable for both tripod and shoulder-mounted setups. Removing the mount plate allows for direct attachment to DJI RS 2, RS 3 Pro, and RS 4 Pro gimbals.
The ergonomic right side plate enhances grip and features multiple threaded holes for attaching accessories like tripods (ID 4463) or mini L-shaped mount plates (ID MD4360). The modular NATO rail, designed with the matching grooves to fit the original handle, can be mounted on the top and sides of the cage for seamless horizontal and vertical shooting.

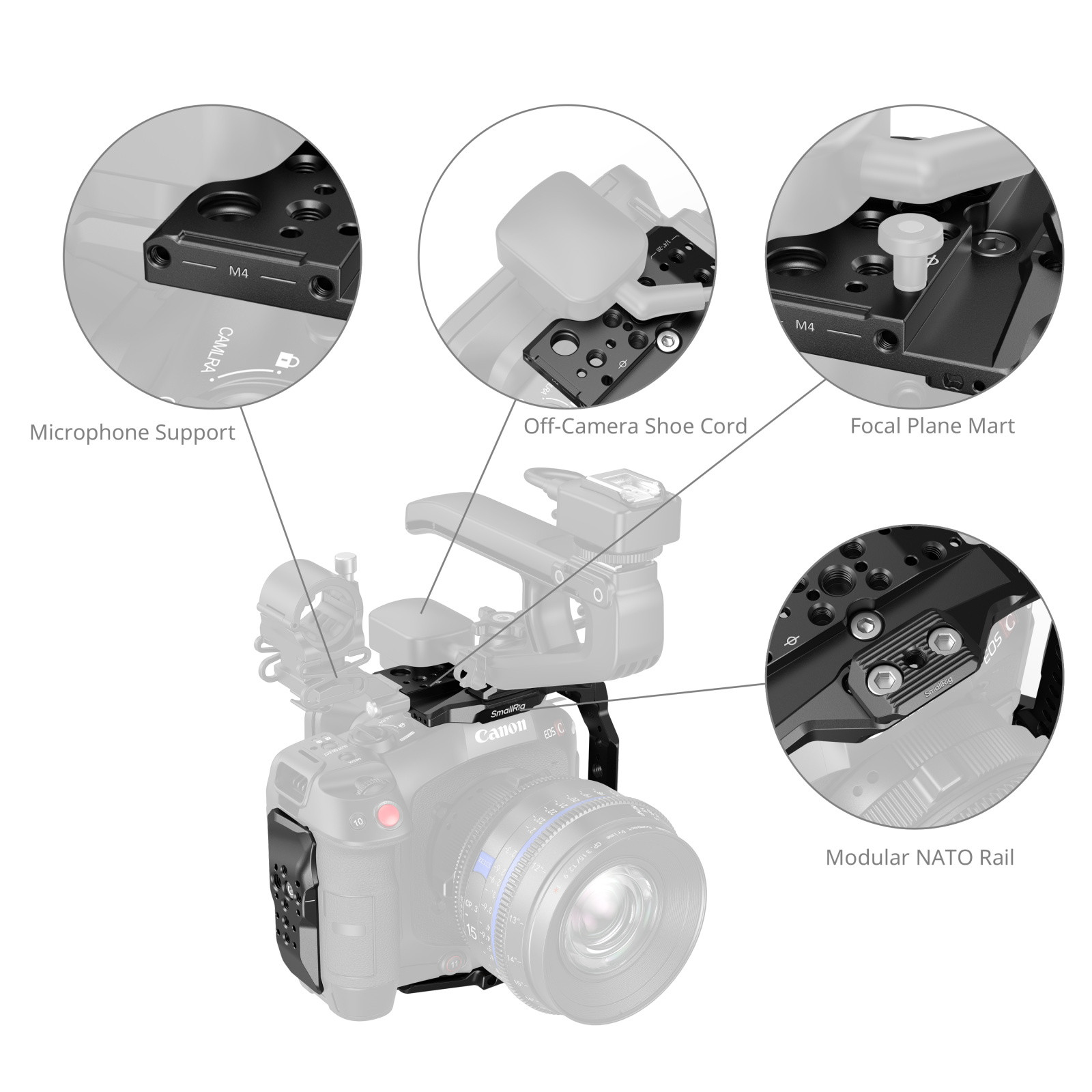

This cage kit is compatible with Canon’s microphone holders, focal plane marking hooks, and off-camera shoe cords (OC-E4A). Additionally, the kit includes an HDMI cable clamp for stable data transmission and a magnetic Allen wrench for easy assembly and disassembly.
Work With
Canon EOS C80
Packing List
Top Plate x 1
Left Plate x 1
Right Plate x 1
Baseplate x 1
Bottom Mount Plate x 1
Cable Clamp x 1
NATO Rail x 1
Operating Instruction x 1
Guarantee Card x 1
Technical Data

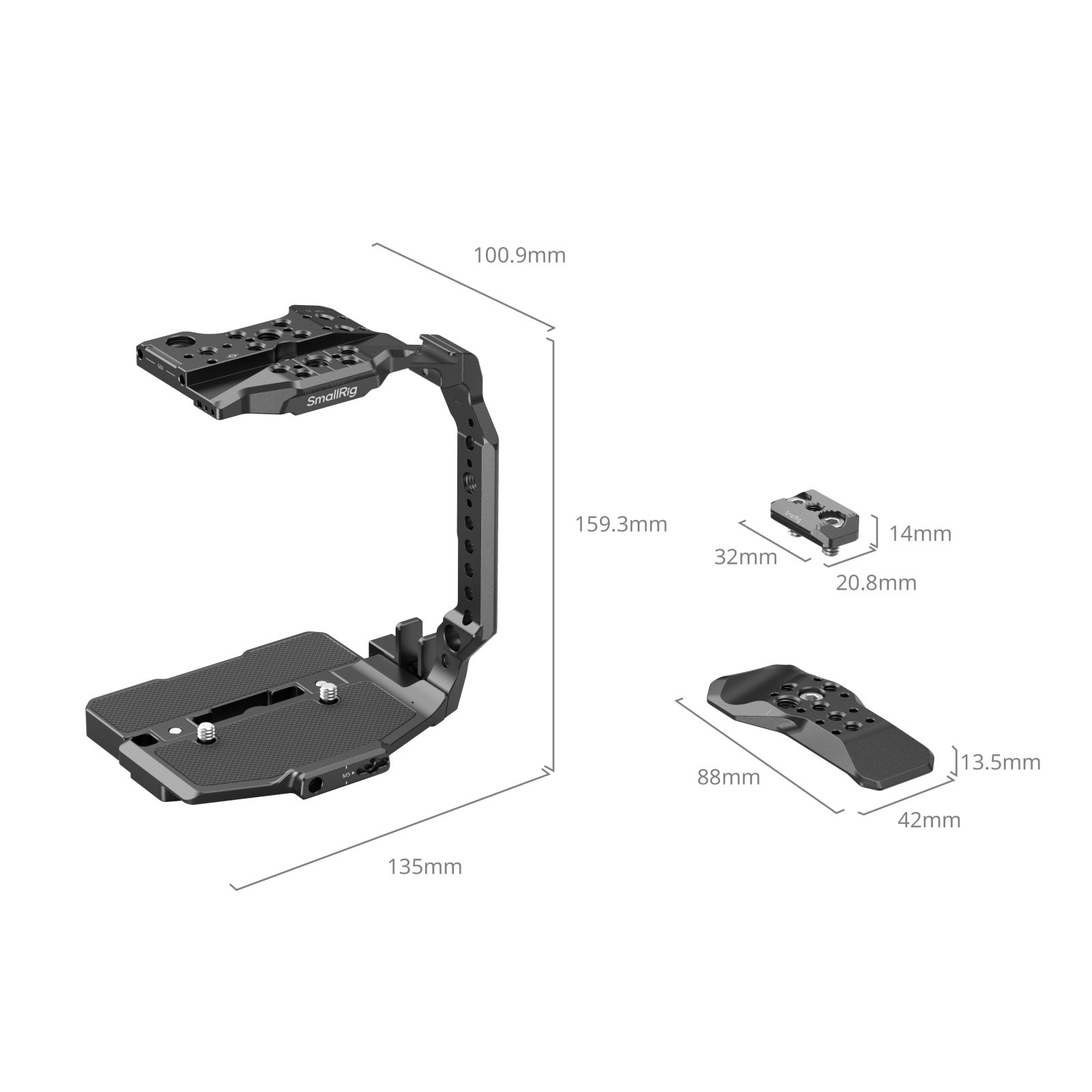

Product Dimensions: 135.0 x 100.9 x 159.3mm / 5.3 x 4.0 x 6.3in
Package Dimensions: 144.0 x 102.5 x 70.0mm / 5.7 x 4.0 x 2.8in
Net Weight: 309.2 ± 5.0g / 10.9 ± 0.2oz
Package Weight: 383.4 ± 5.0g / 13.5 ± 0.2oz
Material(s): Aluminum Alloy
