SmallRig Baseplate for BMPCC 4K / 6K (SmallRig Cage 2255 Compatible Only) DBR2267

SmallRig Baseplate for BMPCC 4K / 6K (SmallRig Cage 2255 Compatible Only) DBR2267

1.A dedicated baseplate designed to work with SmallRig BMPCC 4K / 6K QR Cage 2255;

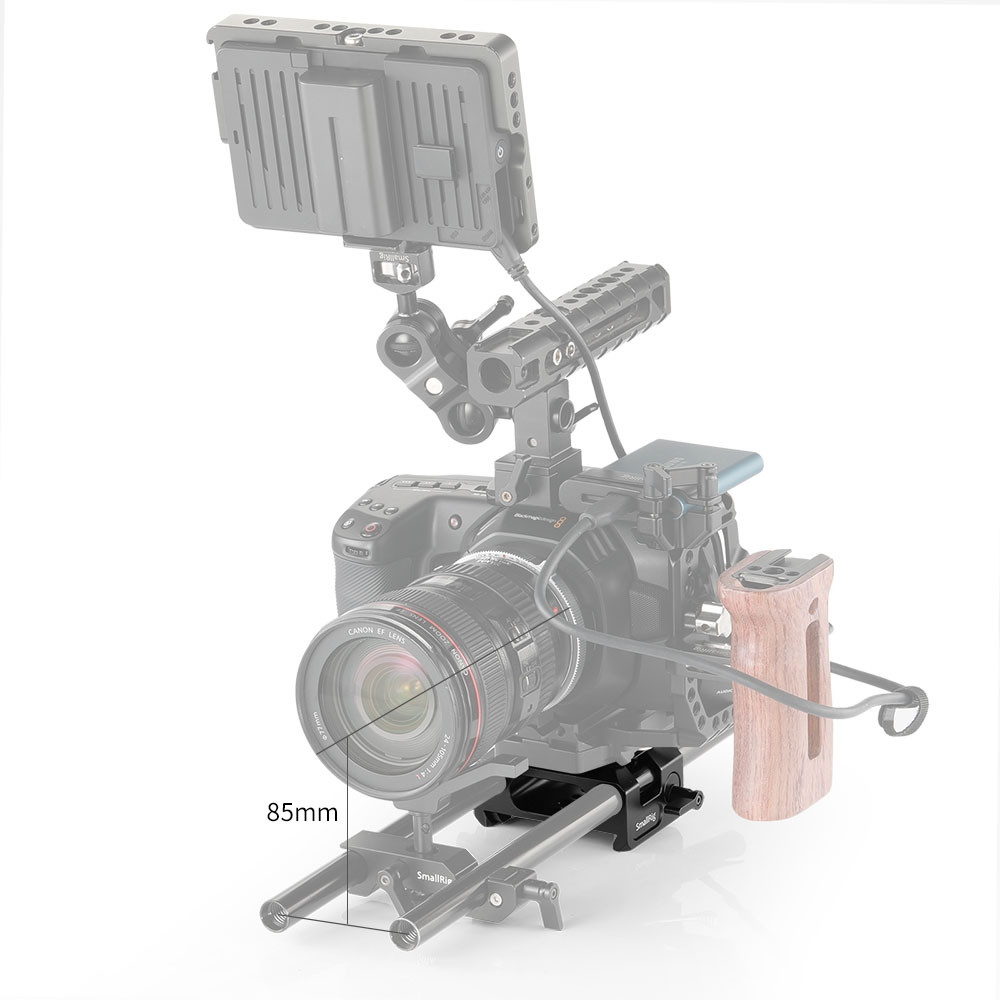

2.15mm rail support at 85mm rod height;

3.Arri standard dovetail on the bottom;

4.1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates;

5.Well-formed and compact design.

$69.00
Sku DBR2267
EAN 6972070624827

Availability: Discontinued Item

This product has been viewed 523 times

Product Description



SmallRig Baseplate for BMPCC 4K / 6K (SmallRig Cage 2255 Compatible Only) 2267

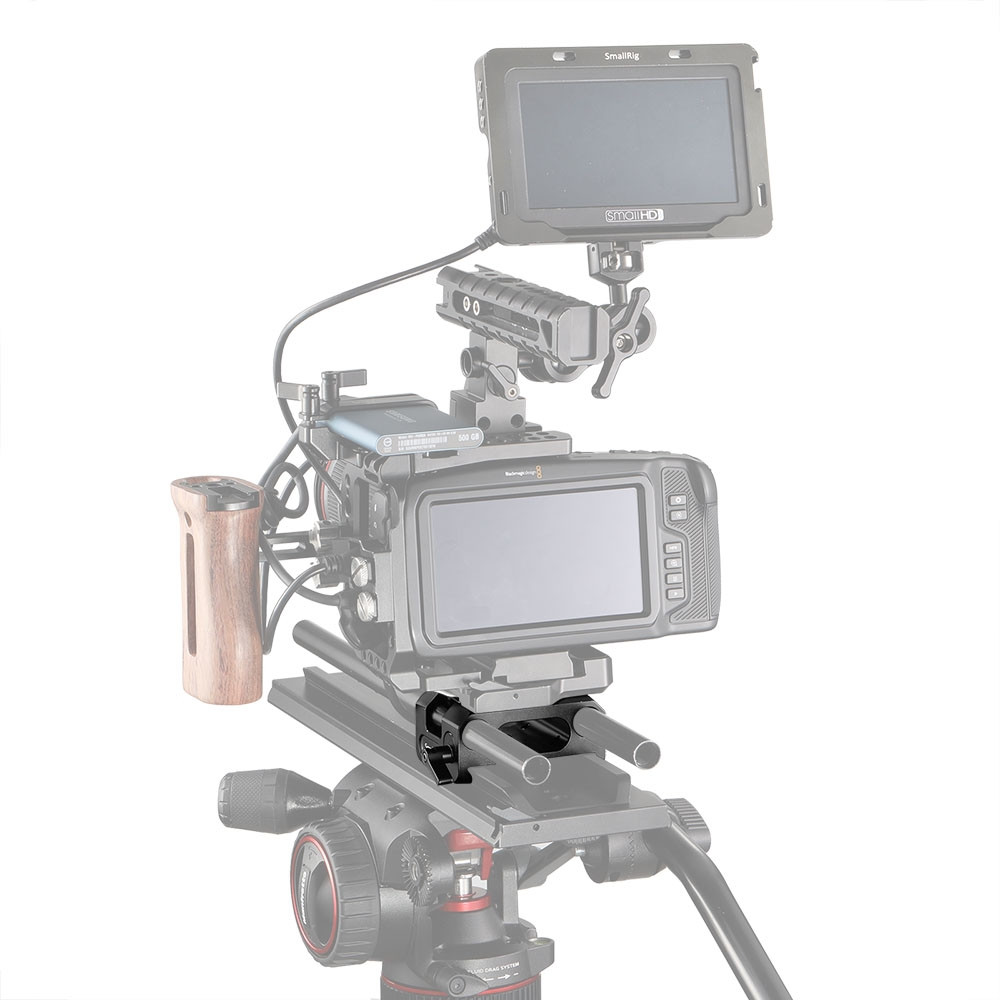

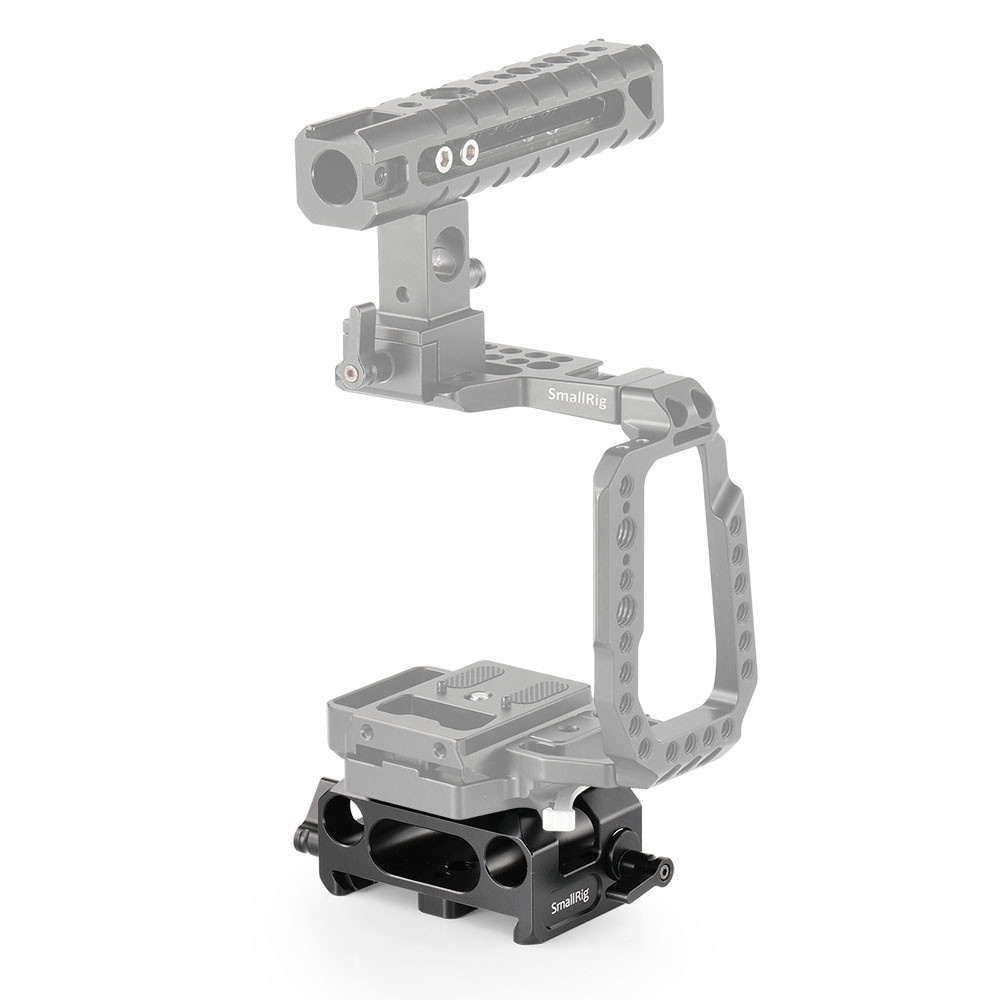

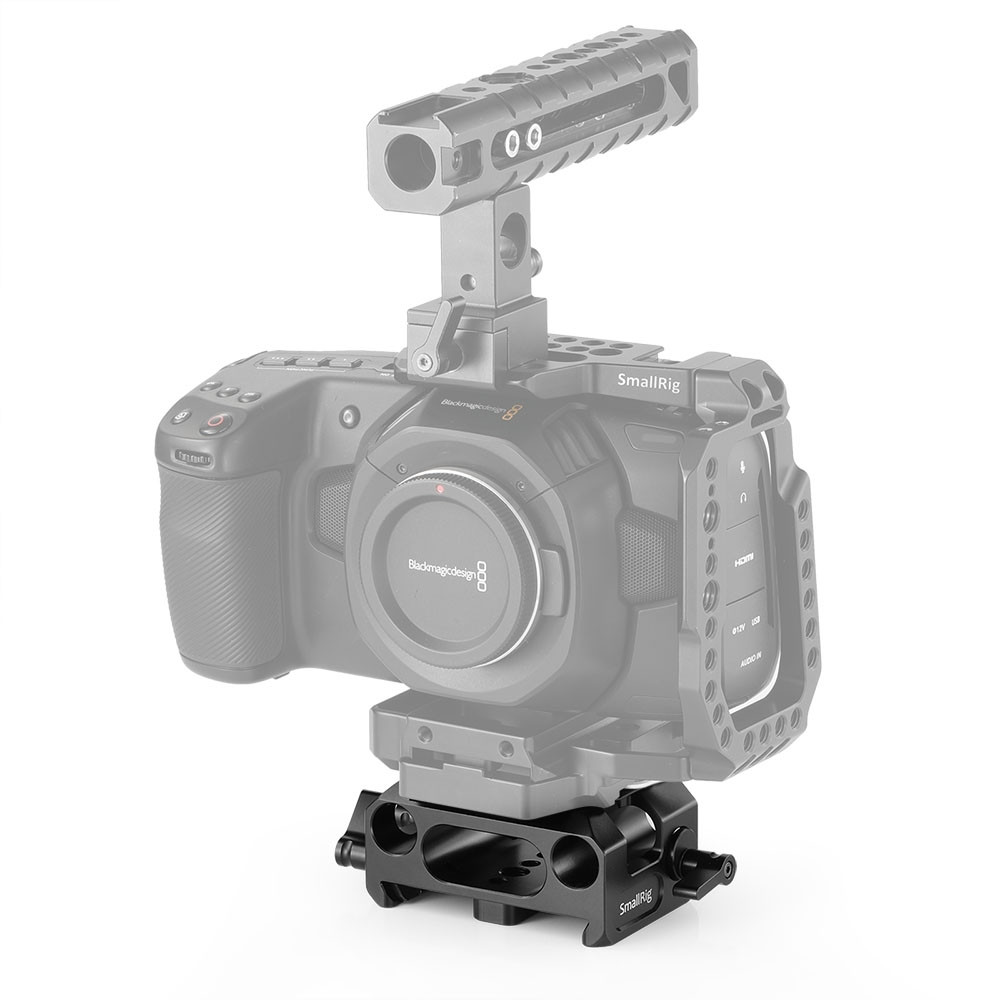

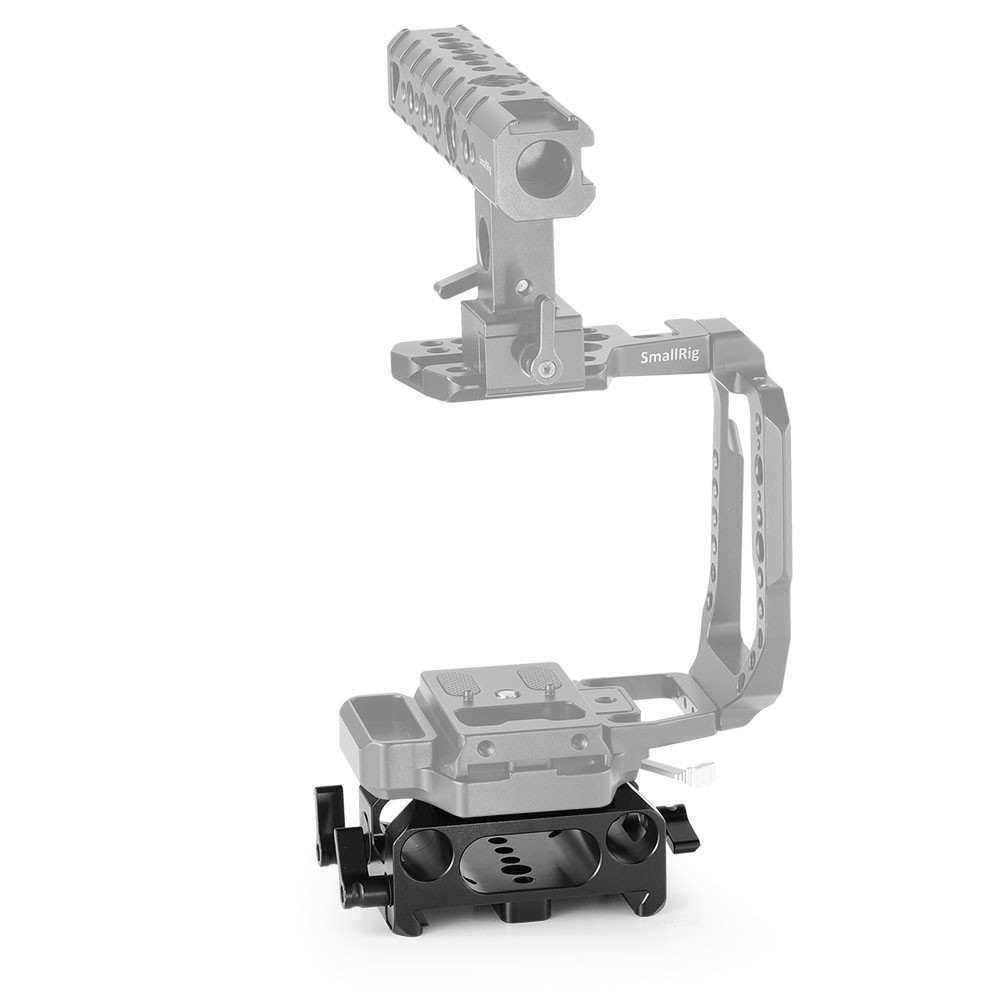

SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K / 6K (SmallRig Cage 2255 Compatible Only) 2267 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It mounted to the bottom of the cage by two 1/4 screws. It features a 15mm rail clamp where SmallRig 15mm Rods 1053, accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be assembled. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.

Key Features

1.A dedicated baseplate designed to work with SmallRig BMPCC 4K / 6K QR Cage 2255;

2.15mm rail support at 85mm rod height;

3.Arri standard dovetail on the bottom;

4.1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates;

5.Well-formed and compact design.

Work With

Blackmagic Design Pocket Cinema Camera 4K / 6K

SmallRig cage 2255

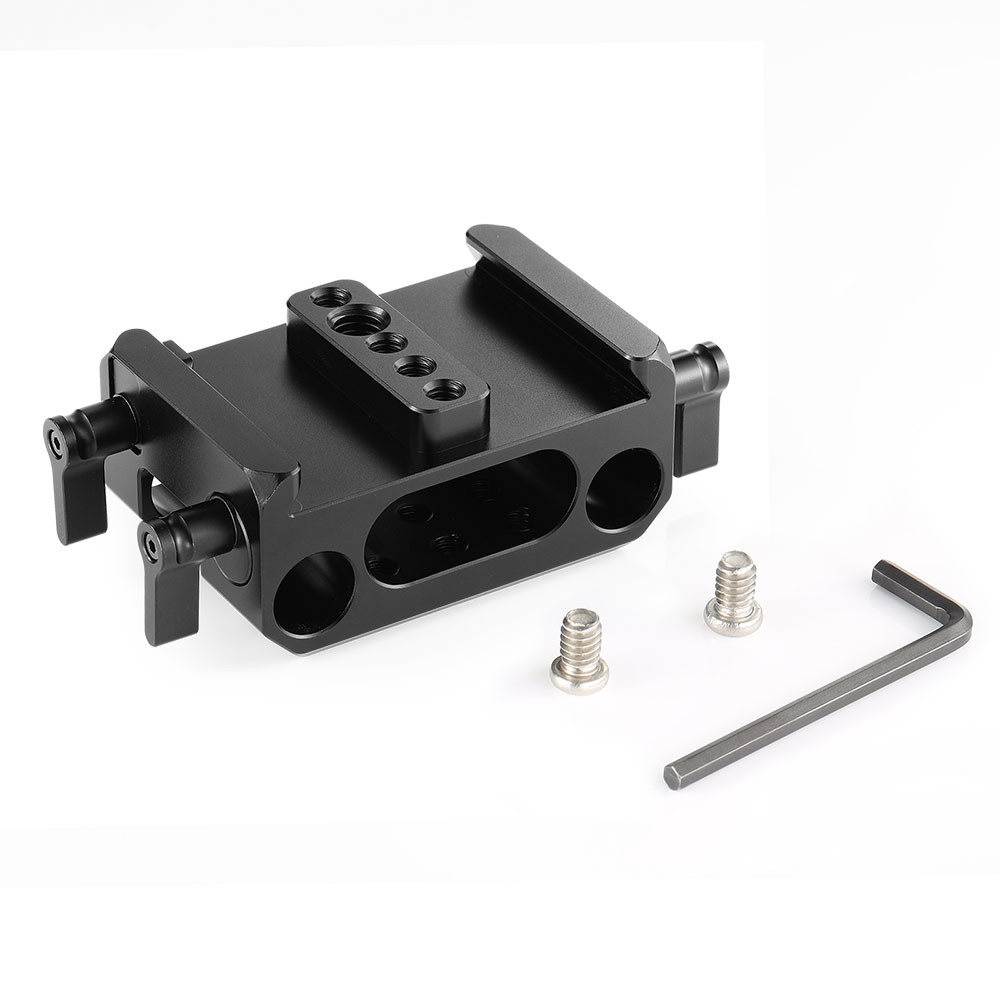

Packing List

1 x Baseplate

1 x Hex Spanner

2 x 1/4 Screw

Technical Data

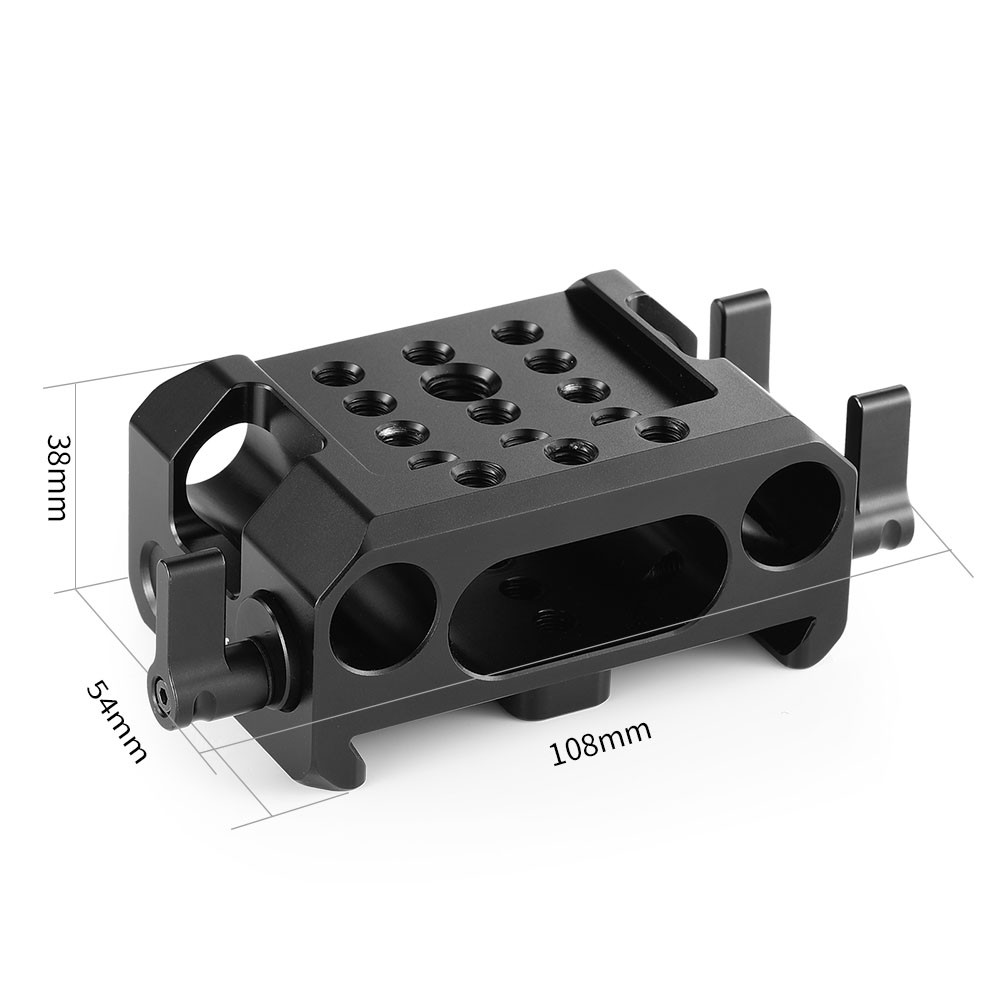

Product Dimensions: 108 x 54 x 38 mm

Package Dimensions: 135 x 100 x 50 mm

Net Weight: 205g

Package Weight: 249g

Material(s): Aluminum Alloy
