SmallRig Baseplate for BMPCC 4K (Arca Compatible) DBC2261

SmallRig Baseplate for BMPCC 4K (Arca Compatible) DBC2261

1.A dedicated baseplate designed for BMPCC 4K;

2.Arca compatible QR plate and receiver on the top and secured by a knob screw;

3.15mm rail support at 85mm rod height;

4.Arri standard dovetail on the bottom;

5.1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates.

$99.00
Sku DBC2261

Availability: In stock 15

Product Description



SmallRig Baseplate for BMPCC 4K (Arca Compatible) 2261

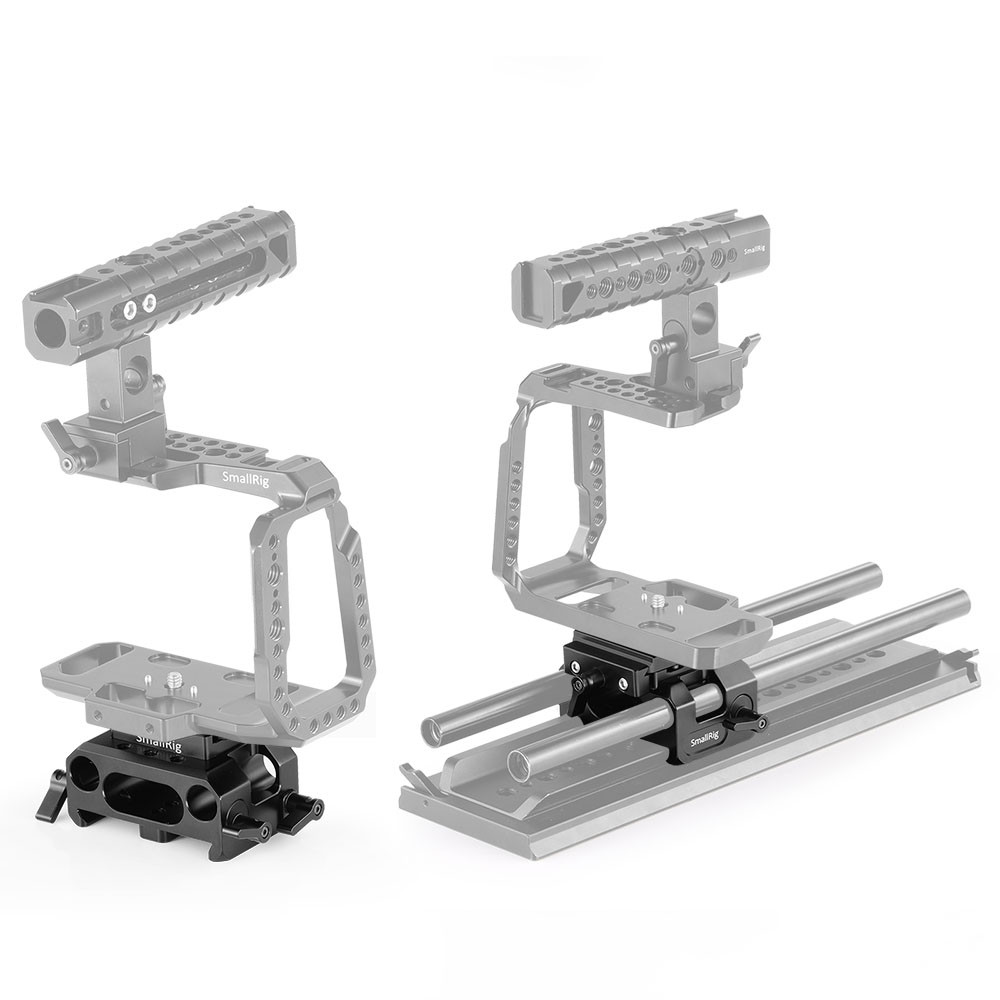

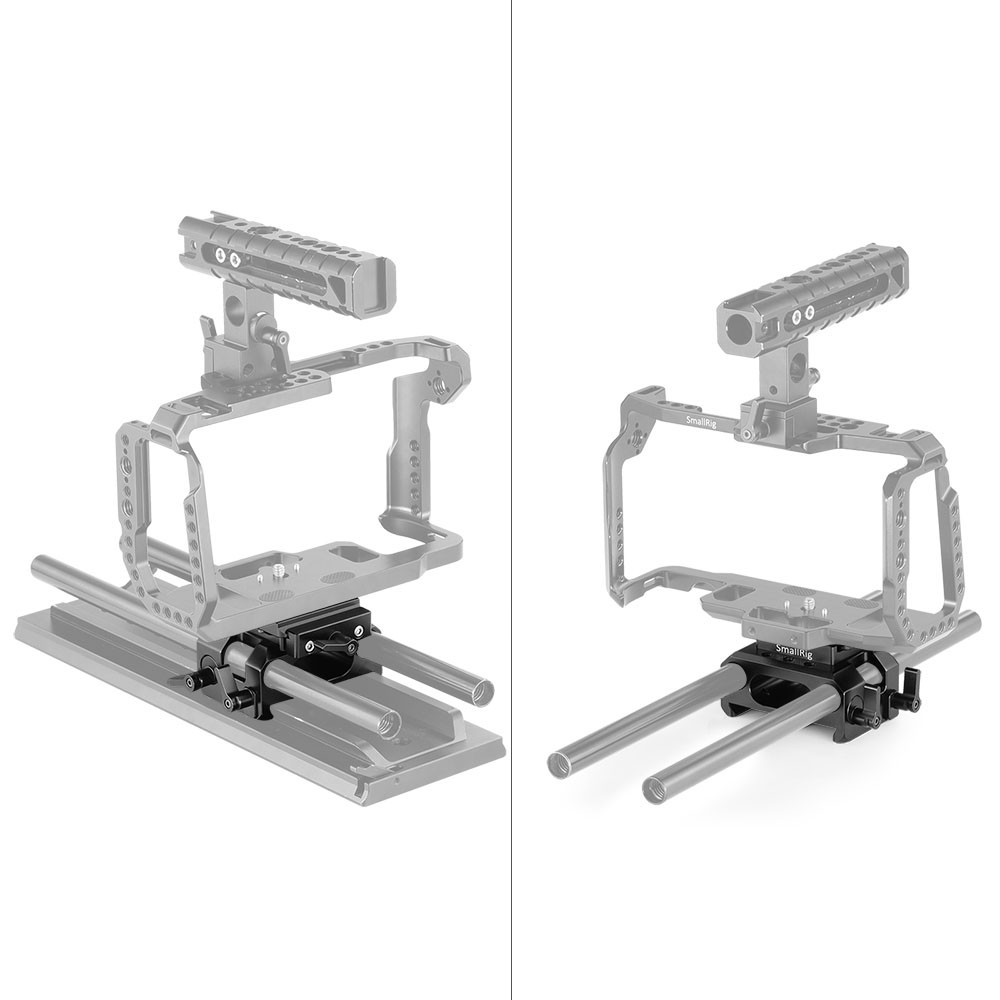

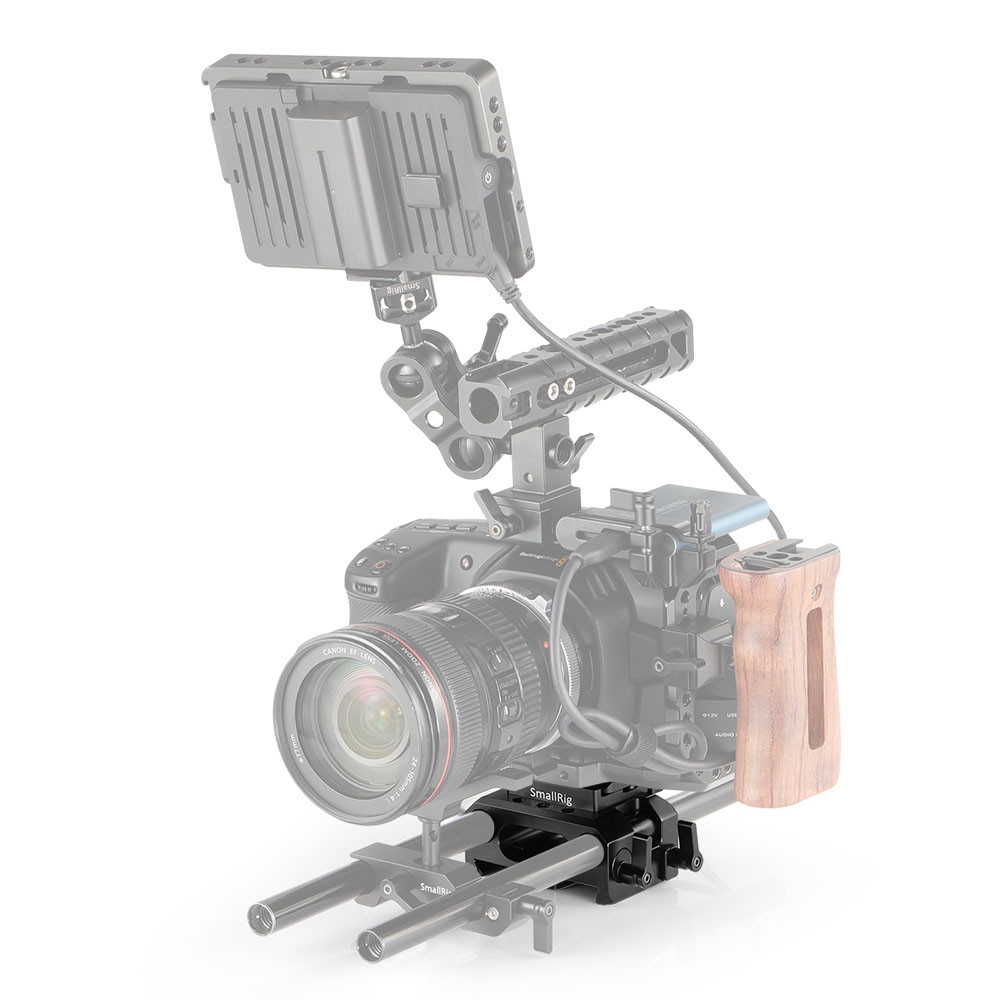

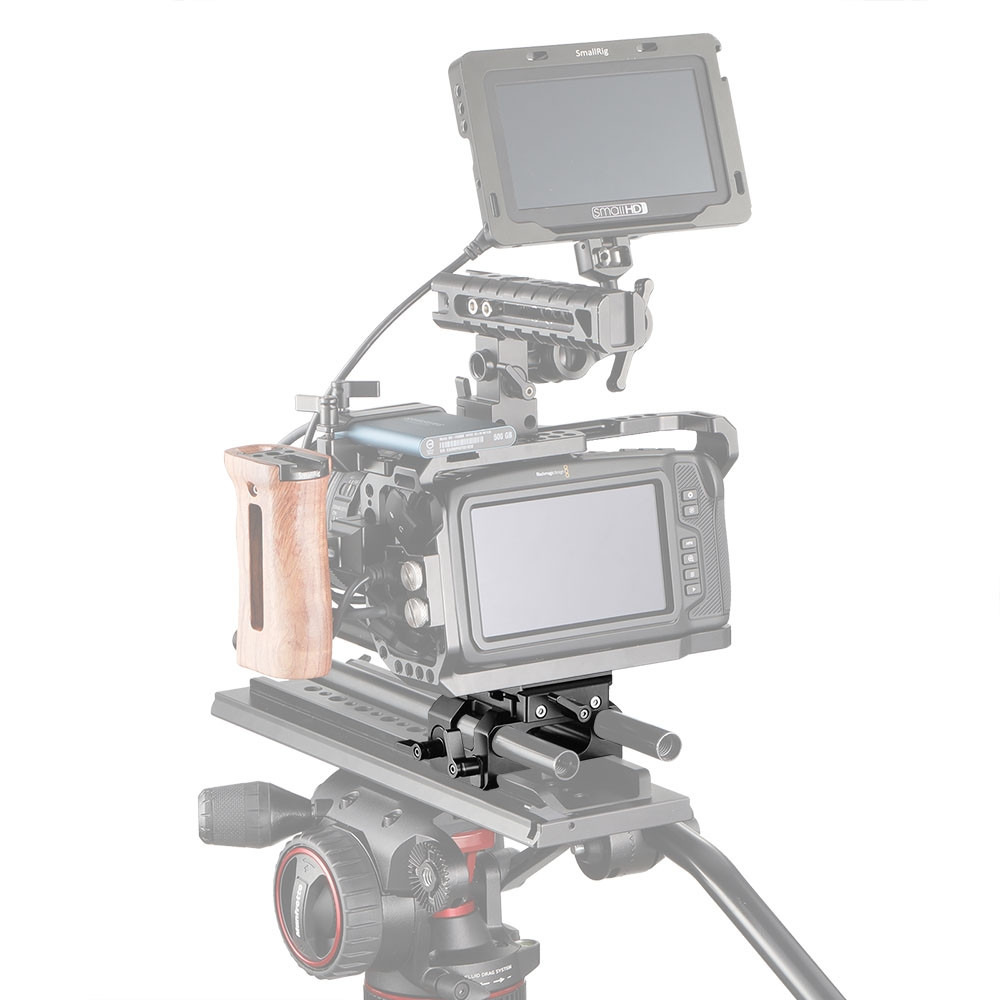

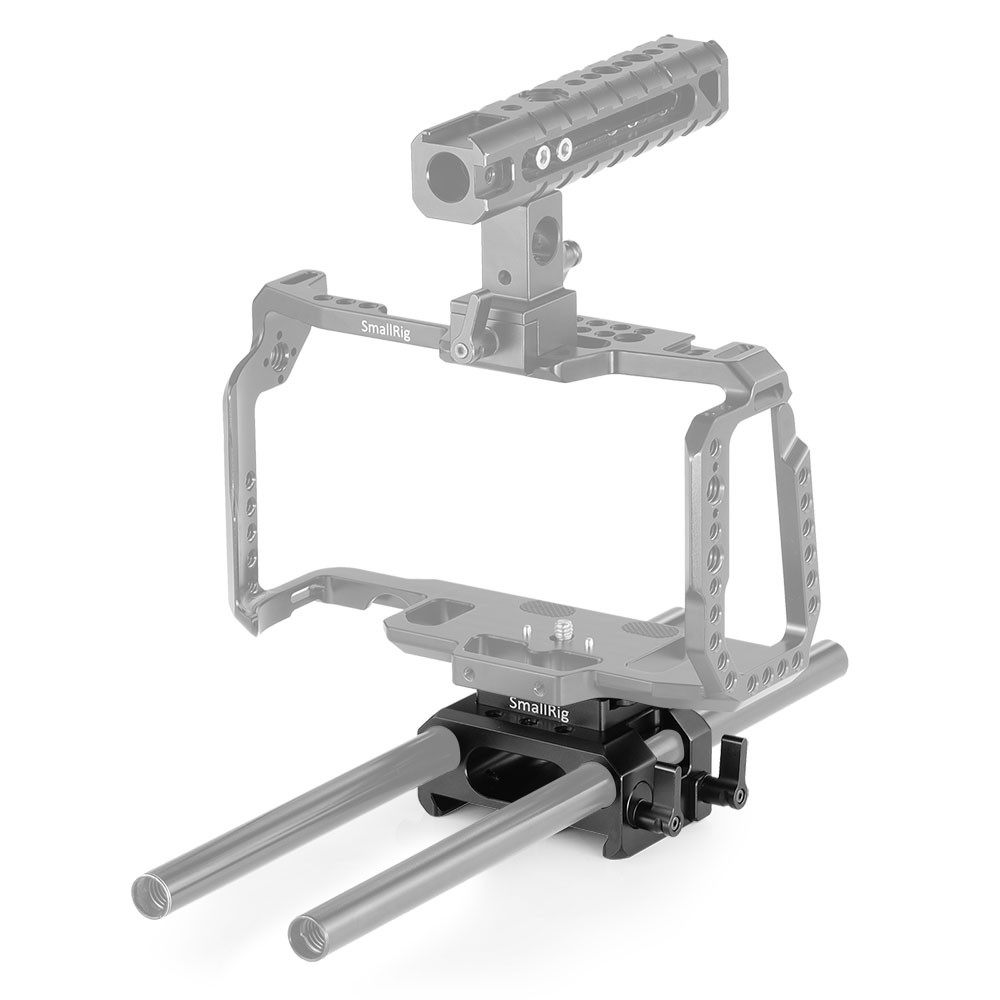

SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K (Arca Compatible) 2261 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It is designed to work with SmallRig Cage 2203 and 2254. On the top are Arca compatible QR plate and receiver, where the cage can be quickly mounted. On the middle is 15mm rail clamp for SmallRig 15mm Rods 1053, where accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be attached. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.

NOTE: If you prefer Manfrotto compatible quick release on the top, please take a look at SmallRig Baseplate 2266.

Key Features

1.A dedicated baseplate designed for BMPCC 4K;

2.Arca compatible QR plate and receiver on the top and secured by a knob screw;

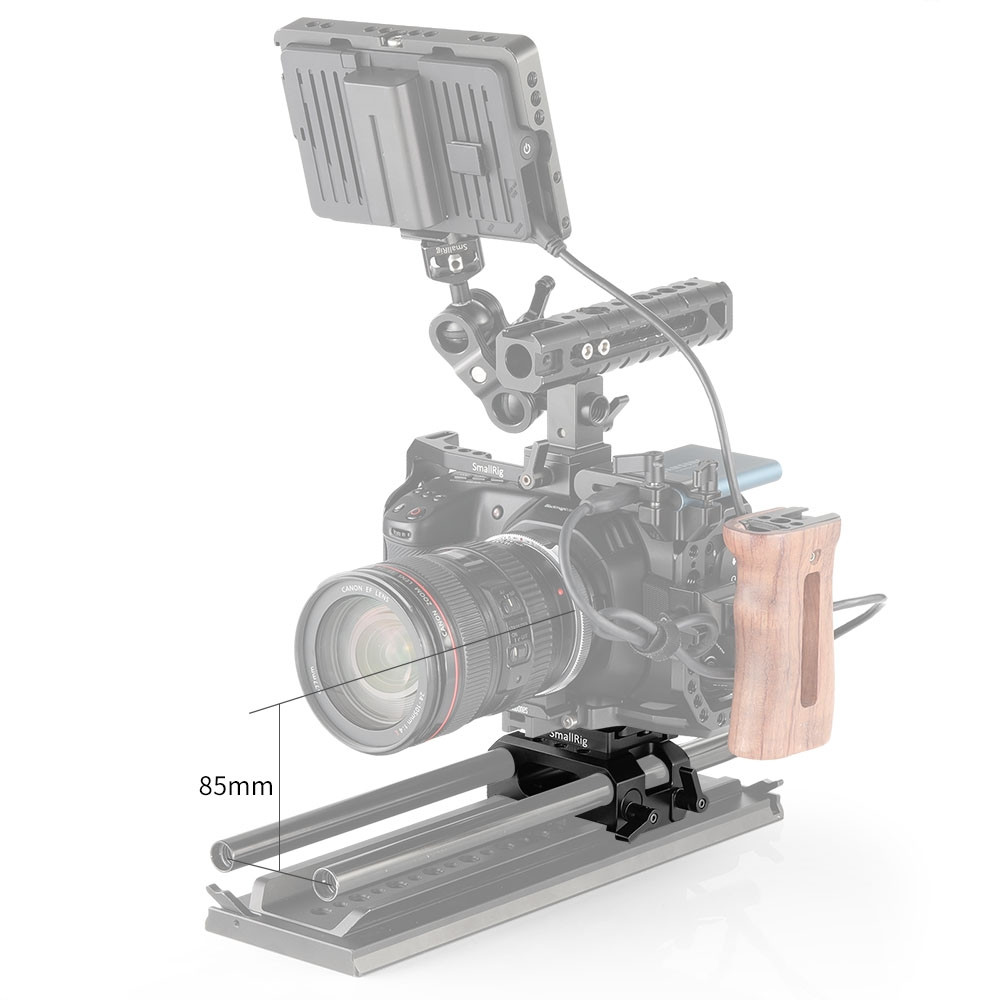

3.15mm rail support at 85mm rod height;

4.Arri standard dovetail on the bottom;

5.1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates.

Work With

BMPCC 4K SmallRig cage 2203

SmallRig cage 2254

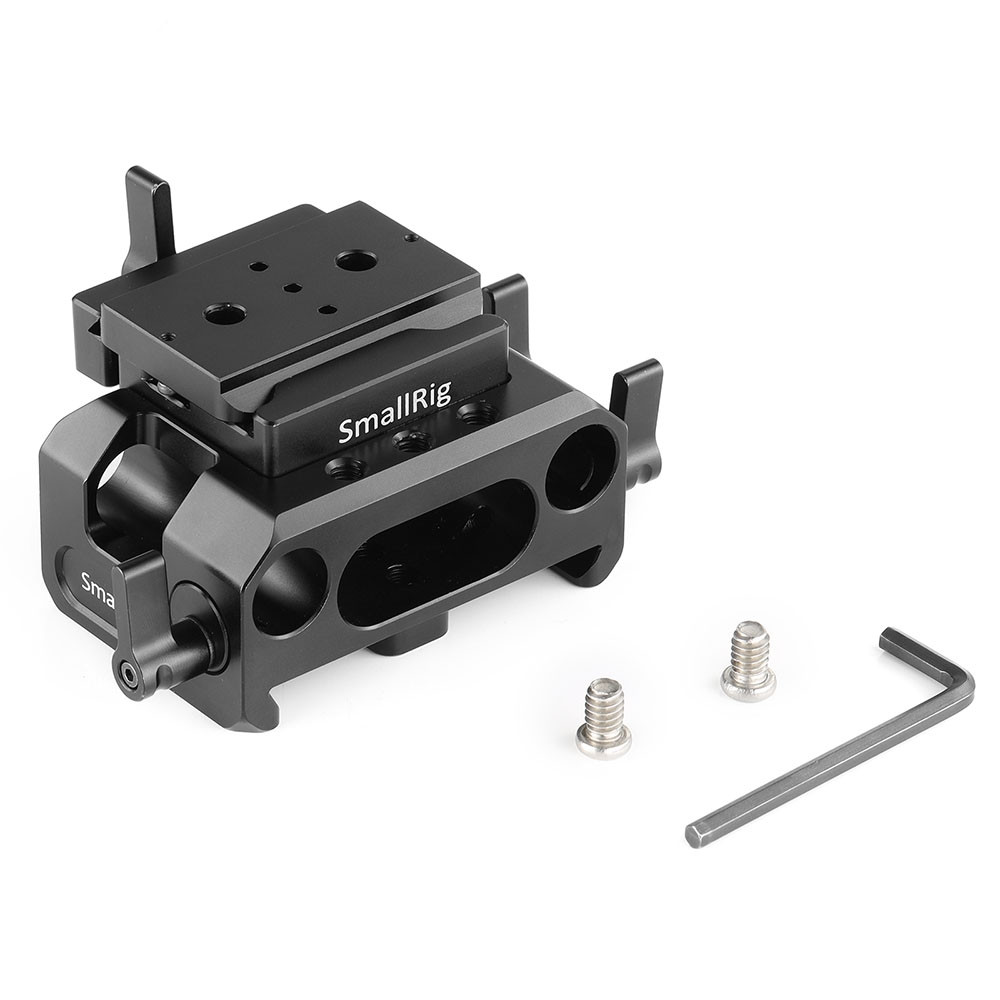

Packing List

1 x Baseplate

1 x Hex Spanner

2 x 1/4 Screw

Technical Data

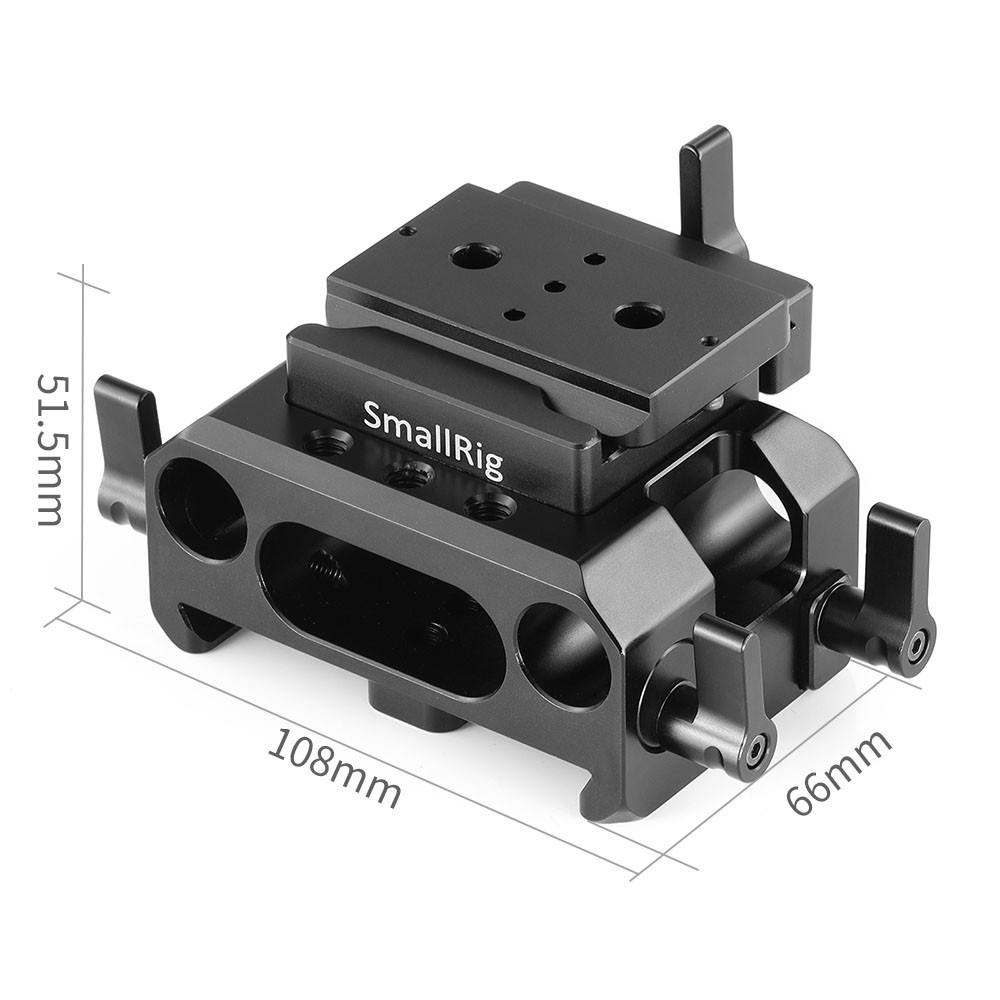

Product Dimensions: 108 x 66 x 51.5mm

Package Dimensions: 125 x 108 x 90mm

Net Weight: 307g

Package Weight: 373g

Material(s): Aluminum Alloy
