SmallRig 6″ Suction Cup Camera Mount 4114

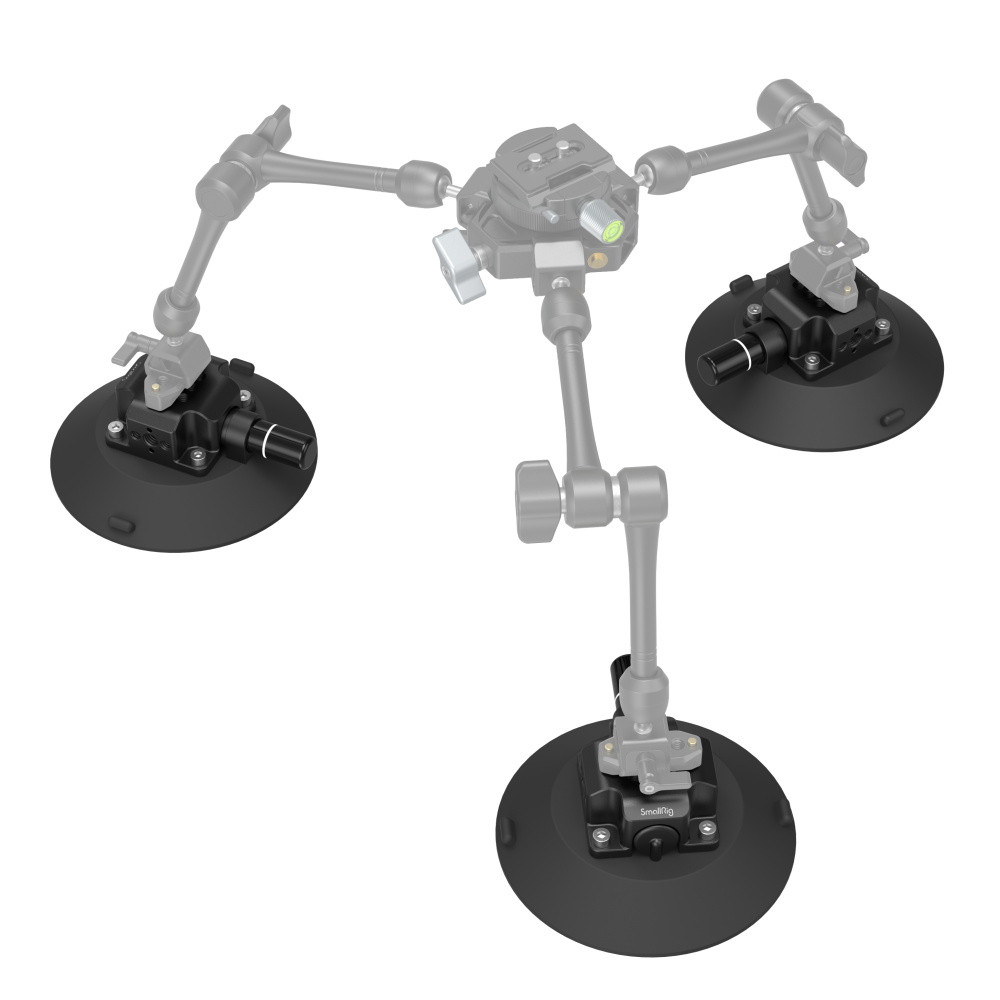

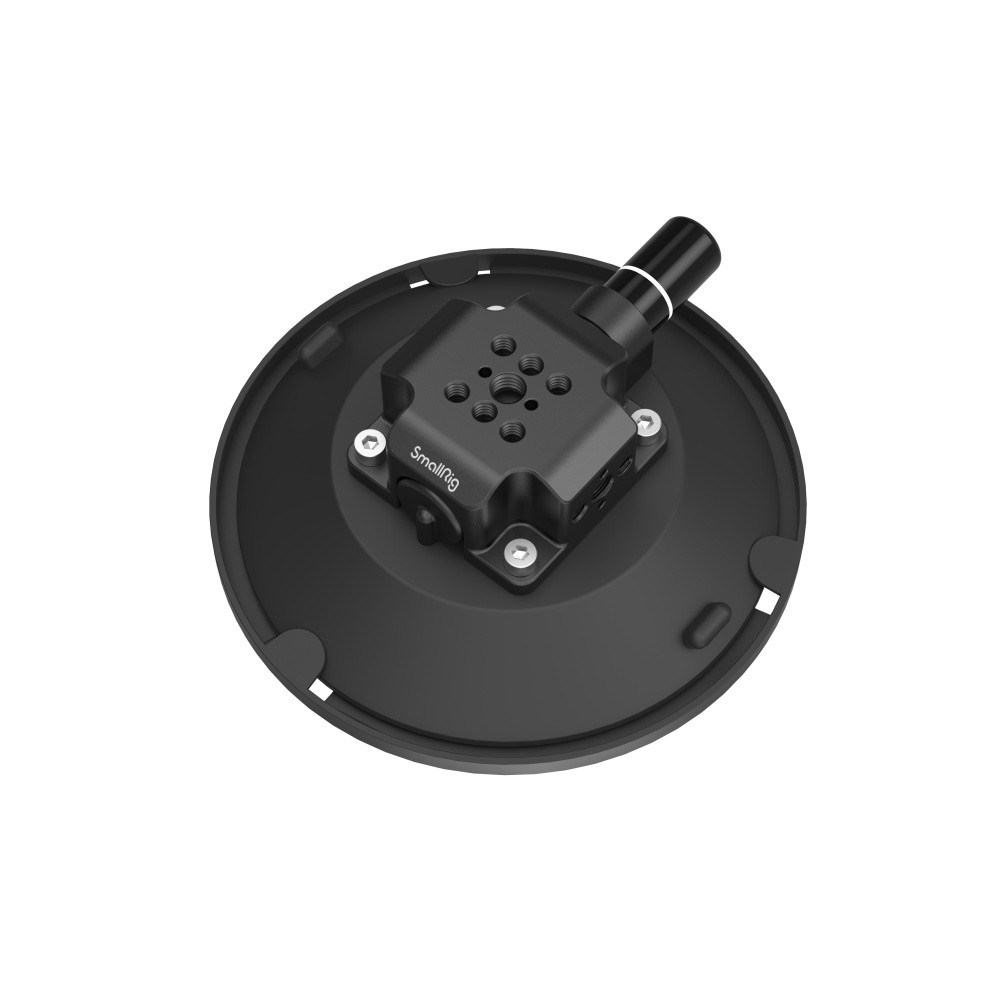

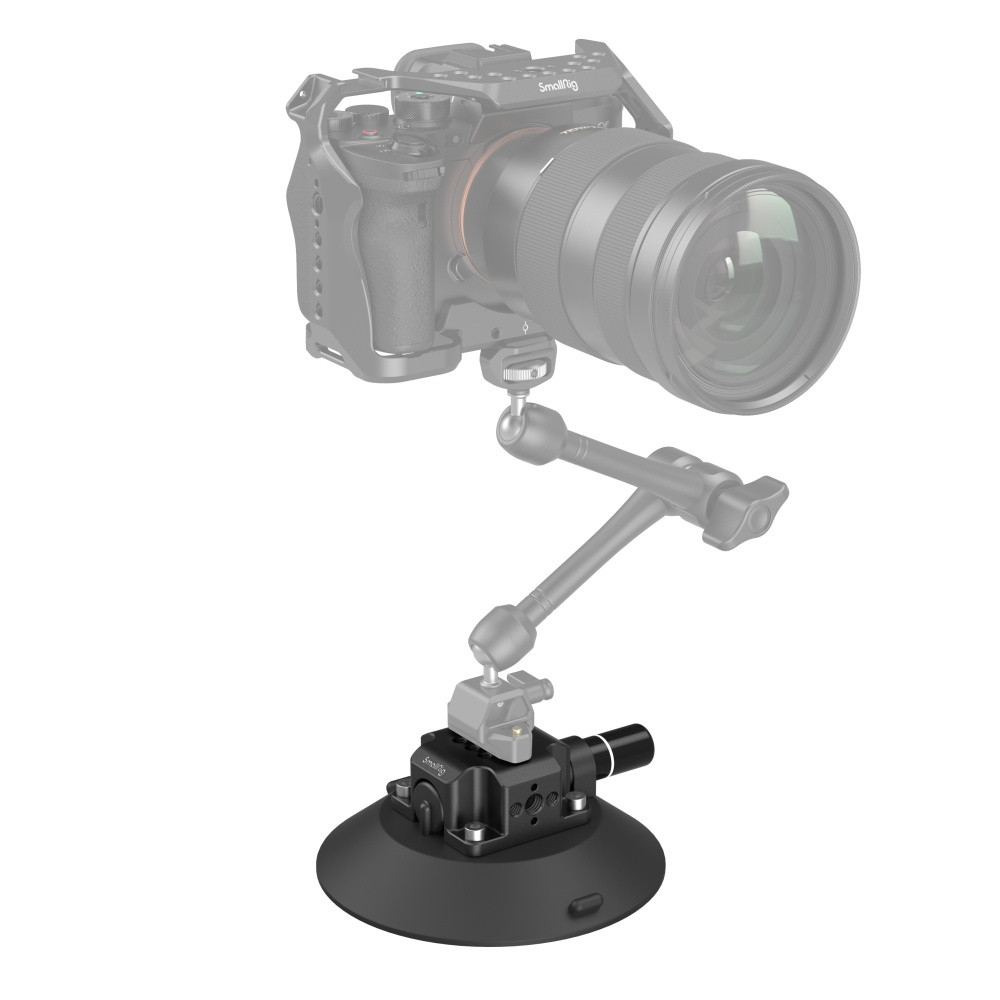

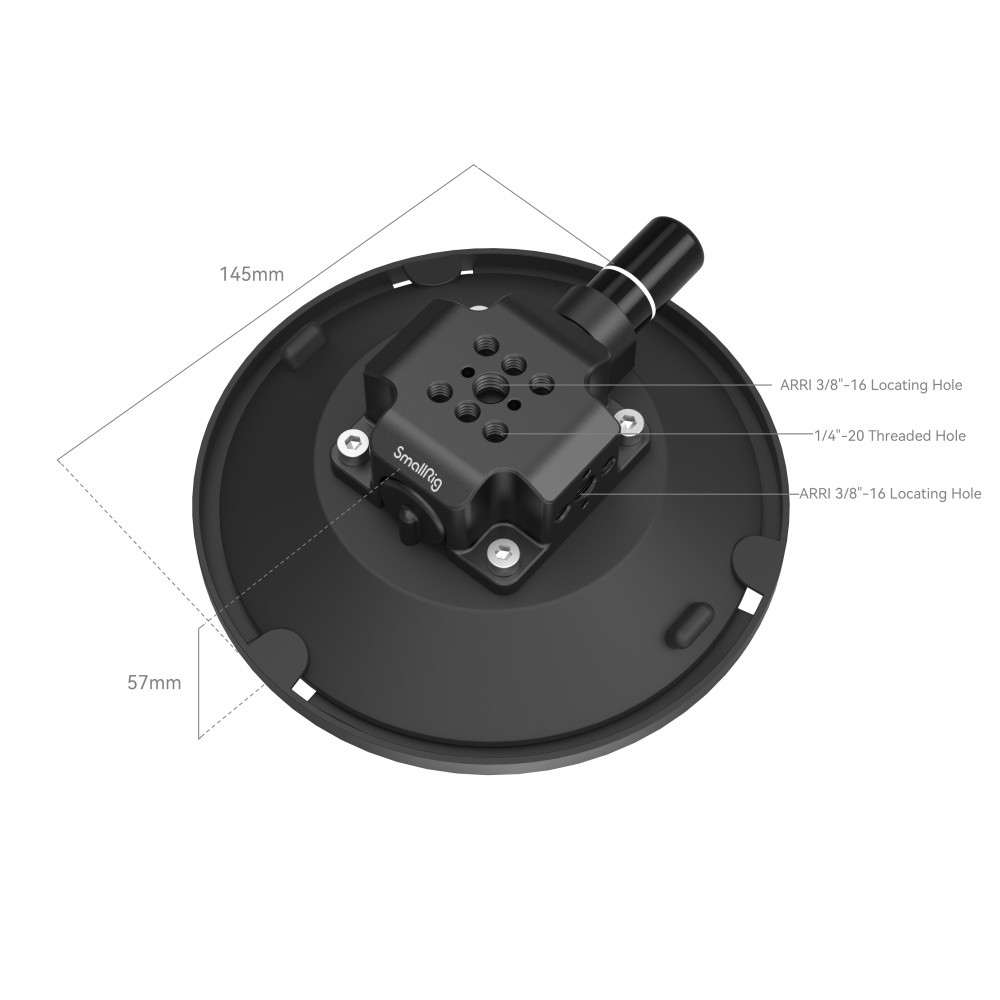

SmallRig 6″ Suction Cup Camera Mount 4114 consists of a suction cup mount, sucker, hand pump, and dust cover. The suction cup mount, made of robust and wear-resistant NBR, can work at -20° C to 60° C. It is not easily deformed and features excellent airtightness, suitable for clean, dry, and smooth surfaces. With powerful suction force, it has maximum horizontal suction of 80 kg and maximum vertical suction of 60 kg. The aluminum-alloy suction cup mount comes with accessory mounting points: 1/4"-20 threaded holes, 3/8”-16 threaded holes, and ARRI 3/8"-16 locating holes. It supports attaching magic arms (3873, 3874, 3875, 2906B, 2070B, 2115C, etc.) for enhanced expandability. When not in use, put on the dust cover to avoid dusting for longer service life.
Disclaimer: Please mount it onto recommended surfaces and check at least every four hours.
Note:
1. Suitable for clean, dry, and smooth surfaces, not for rough, wet, uneven, dirty, or fragile surfaces.
2. Please always keep the sucker and filter cotton intact and clean.
3. Please apply it carefully to coated surfaces.
4. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.
Key Features
Warnings:
1. The 6″ Suction Cup Camera Mount, when adhering to a still object, has a tested maximum horizontal suction of 80 kg and maximum vertical suction of 60 kg. Please check the suction force every 24 hours.
2. It is recommended, when adhering to a vehicle, the 6″ Suction Cup Camera Mount work with a cable tether and bears no more than 8 kg. Please run the vehicle smoothly at a speed of below 80 km/h and check the suction force every 2 hours.
3. Suitable for dry, flat, glossy, solid surfaces, not for painted surfaces, natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood, frosted glass, and other rough or breathable materials.
4. Works at -20°C to 60°C.
5. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.
6. Please follow the instructions. Products that are damaged due to improper use are not eligible for after-sales service.
Note: According to the indoor experiment, the vertical load capacity is up to 8kg while using with 14" lever arm. The laboratory data is for reference only, actual product may vary due to product enhancement.
Packing List
1 x 6″ Suction Cup Camera Mount
Technical Data
Product Dimensions: 159.0 x 159.0 x 60.9mm
Package Dimensions: 184 x 178 x 80 mm
Product Weight: 482g±5g
Package Weight: 680g±5g
Material(s): Aluminum Alloy, NBR, ABS, Stainless Steel
